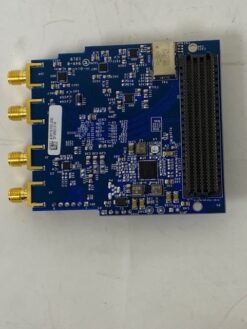

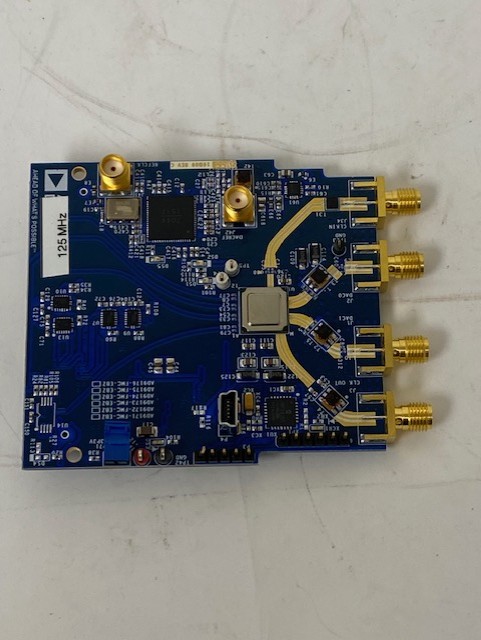

Analog Devices AD9176-FMC-EBZ DAC Evaluation Board

The AD9176-FMC-EBZ is an evaluation board from Analog Devices designed to facilitate the assessment and implementation of the AD9176 dual, 16-bit, 12.6 GSPS RF digital-to-analog converter (DAC) with wideband channelizers. This board adheres to the Vita 57.1 standard through its FMC form-factor connector, ensuring compatibility with various FPGA carrier platforms, such as Analog Devices’ ADS7-V2, which serves as a digital pattern generator and power supply for the evaluation setup.
