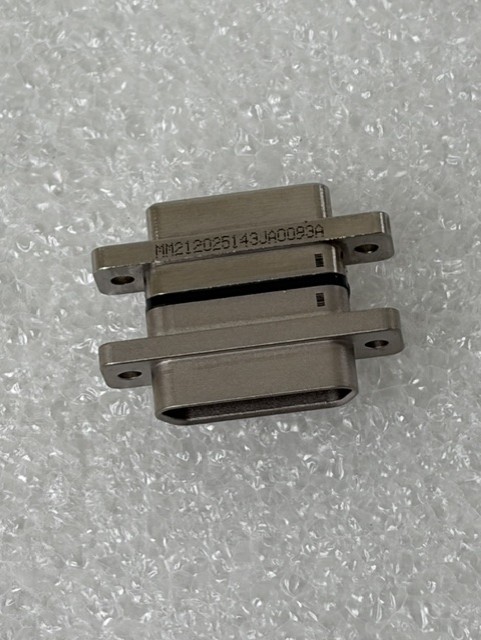

AirBorn MM-212-025-143-JA00-93A Micro-D Plug/Receptacle Connector

Key Specifications

• Manufacturer: AirBorn (Molex)
• Series: M Series Micro-D
• Positions: 25 contacts
• Contact spacing: 0.050″ (1.27 mm)
• Shell material: Aluminum alloy with electroless nickel finish
• Contact plating: Gold
• Current rating: 3 A per contact
• Dielectric material: PPS (Polyphenylene Sulfide)
• Qualified to MIL-DTL-83513 requirements
• Typical applications: avionics, radar, communications, navigation systems, medical equipment, and other high-reliability aerospace/defense electronics.
