Aerotech XY Translation Stage, ATS 302MMW
$320.00

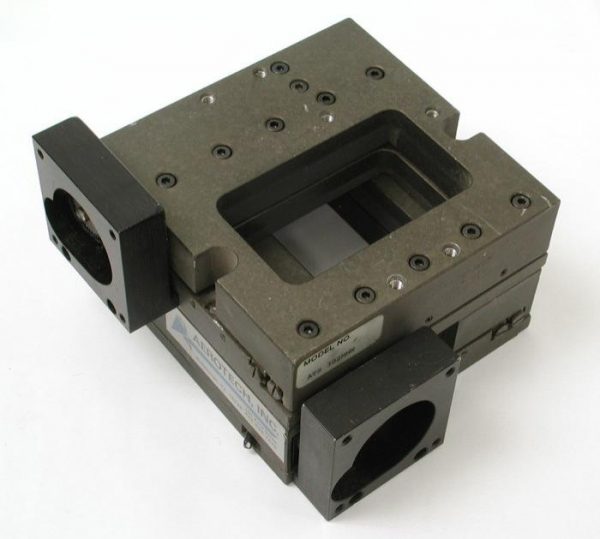

This is an Aerotech XY translation stage consisting of two Model ATS 302MMW stages stacked one on the other. The motors are both missing (they would have had spur gears mounted on them to transmit motion to the leadscrews.
Stage base dimensions � 5 inches square
Overall stage height � 3.075 inches
Stage clear aperture � 2 by 3.5 inches (partly occluded by cross-mounting of stages)
Leadscrew pitch � 0.5mm
Range of motion � 2 inches in X and Y
Motor mount size � NEMA 23
Stage is in excellent condition although the cable leads to the limit switches have been severed.
Location MB 141
Photo set 989
***MPN ATS302
***OEM Aerotech
***SKU*** DP542
1 in stock
CompareThis is an Aerotech XY translation stage consisting of two Model ATS 302MMW stages stacked one on the other. The motors are both missing (they would have had spur gears mounted on them to transmit motion to the leadscrews.
Stage base dimensions � 5 inches square
Overall stage height � 3.075 inches
Stage clear aperture � 2 by 3.5 inches (partly occluded by cross-mounting of stages)
Leadscrew pitch � 0.5mm
Range of motion � 2 inches in X and Y
Motor mount size � NEMA 23
Stage is in excellent condition although the cable leads to the limit switches have been severed.
Location MB 141
Photo set 989
***MPN ATS302
***OEM Aerotech
***SKU*** DP542
| Weight | 7.1 lbs |
|---|---|
| Dimensions | 7 × 7 × 5 in |
