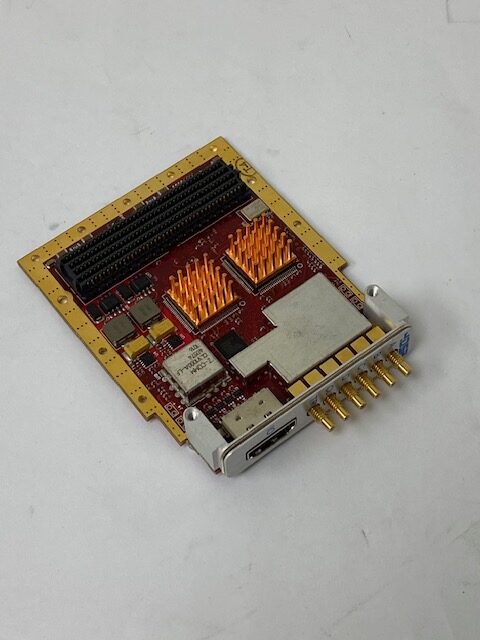

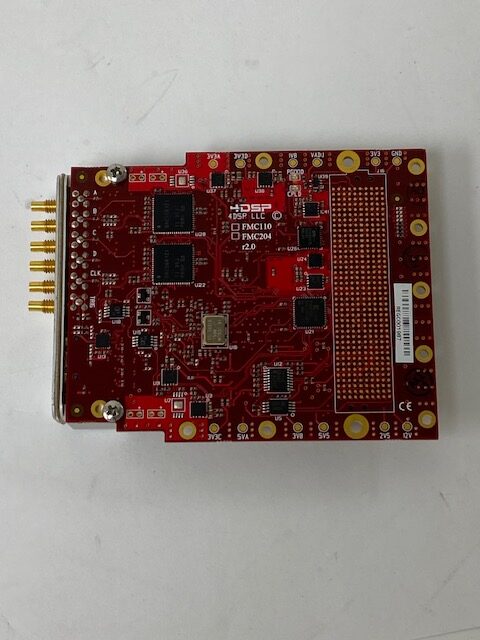

Abaco Systems 4DSP FMC110 Analog I/O Mezzanine Card

📋 Overview & Key Specs

• The FMC110 is a dual-channel analog input and output daughter board featuring:

  • Two 12‑bit ADC channels sampling at 1 Gsps,

  • Two 16‑bit DAC channels at 1 Gsps

• It supports HPC (High-Pin-Count) FMC connector interfaces, compliant with ANSI/VITA 57.1-2010

• It offers AC-coupled single-ended analog inputs and front‑panel I/O via six SSMC coax connectors

• Sample clock options include:

  • Internal or external clock reference,

  • Trigger input for custom sampling control,

  • Full control over clock source, sample rate, and calibration via SPI

• Designed for low‑power applications: onboard power/temperature monitoring, several power‑down modes—ideal for SDR and airborne or battery‑powered systems

• Cooling options: standard air cooling or conduction cooling for rugged use

🎯 Intended Use Cases

• Software‑Defined Radio (SDR),

• Radar, sonar, waveform generation and data‑logging equipment,

• Portable, airborne, UAV‑based or other SWaP‑constrained systems

Its flexibility in clocking, interface, and ruggedization make it particularly suitable for radar/communications avionics, test instrumentation, and real-time RF processing systems.
