60mm Custom Nanomotion LS4 Linear Stage with Renishaw Encoder
Original price was: $999.00.$599.00Current price is: $599.00.

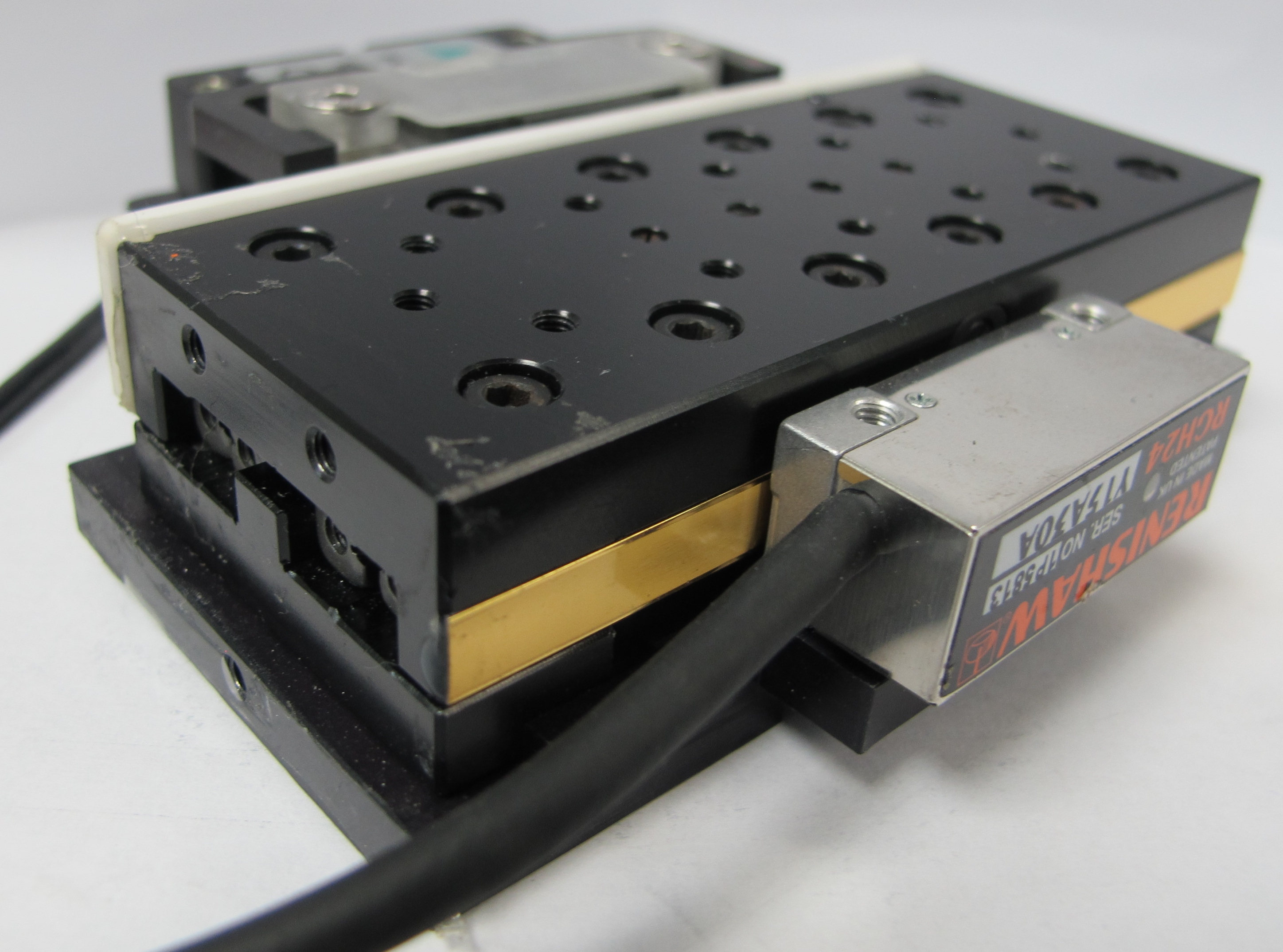

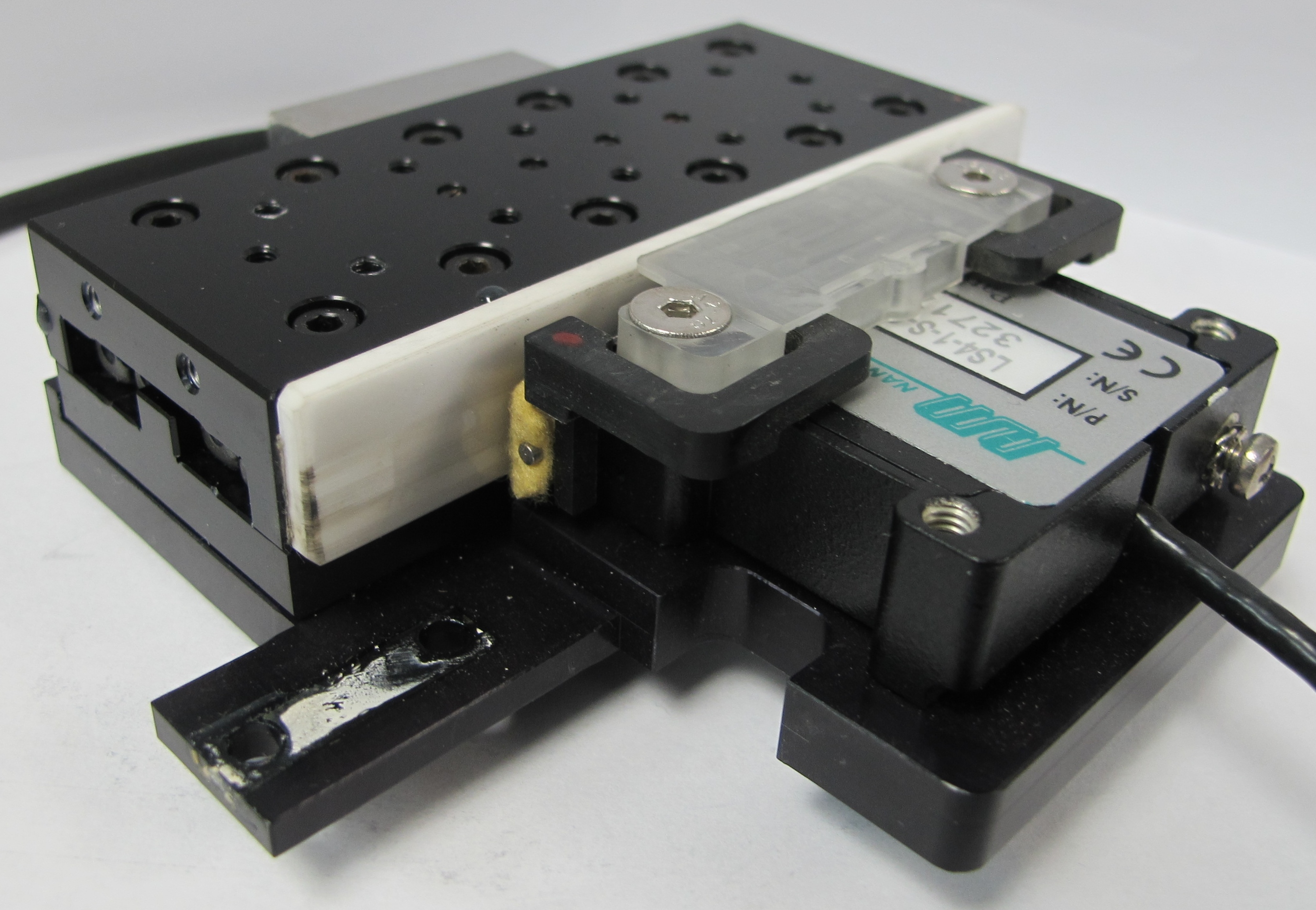

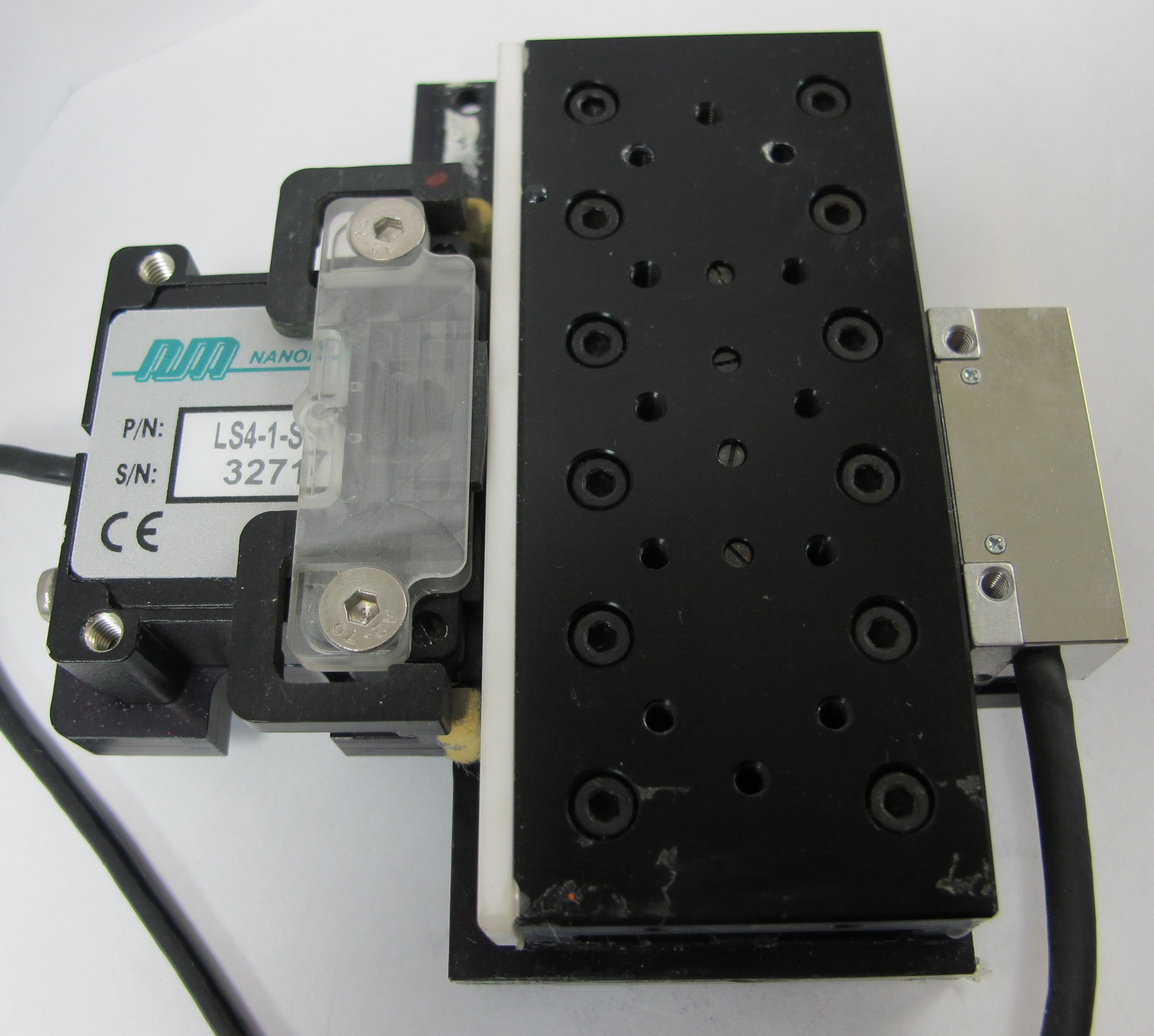

Custom Nanomotion LS4 Motorized Linear Stage with Renishaw Encoder
-40mm W 95mm L 20mm H
-60mm Travel
-Crossed Roller Bearings
-Nanomotion Custom SCNR-BTY-1 Mounting Plate
-Renishaw RGH24 Y15A30A Encoder
-Nanomotion LS4-1-S-0.6 Piezo Servo Motor
15 x 15mm Pattern + 70mm on Center M3 Tapped Holes
Taken from working prototype system.
Ceramic strip has nominal ware.
Encoder strip has small marks.
***MPN LS4-1-S-0.6 SCNR-BTY-1
***OEM Nanomotion
***SKU*** 61070
8 in stock
CompareCustom Nanomotion LS4 Motorized Linear Stage with Renishaw Encoder
-40mm W 95mm L 20mm H
-60mm Travel
-Crossed Roller Bearings
-Nanomotion Custom SCNR-BTY-1 Mounting Plate
-Renishaw RGH24 Y15A30A Encoder
-Nanomotion LS4-1-S-0.6 Piezo Servo Motor
15 x 15mm Pattern + 70mm on Center M3 Tapped Holes
Taken from working prototype system.
Ceramic strip has nominal ware.
Encoder strip has small marks.
***MPN LS4-1-S-0.6 SCNR-BTY-1
***OEM Nanomotion
***SKU*** 61070
| Weight | 4.1 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
