Product Description

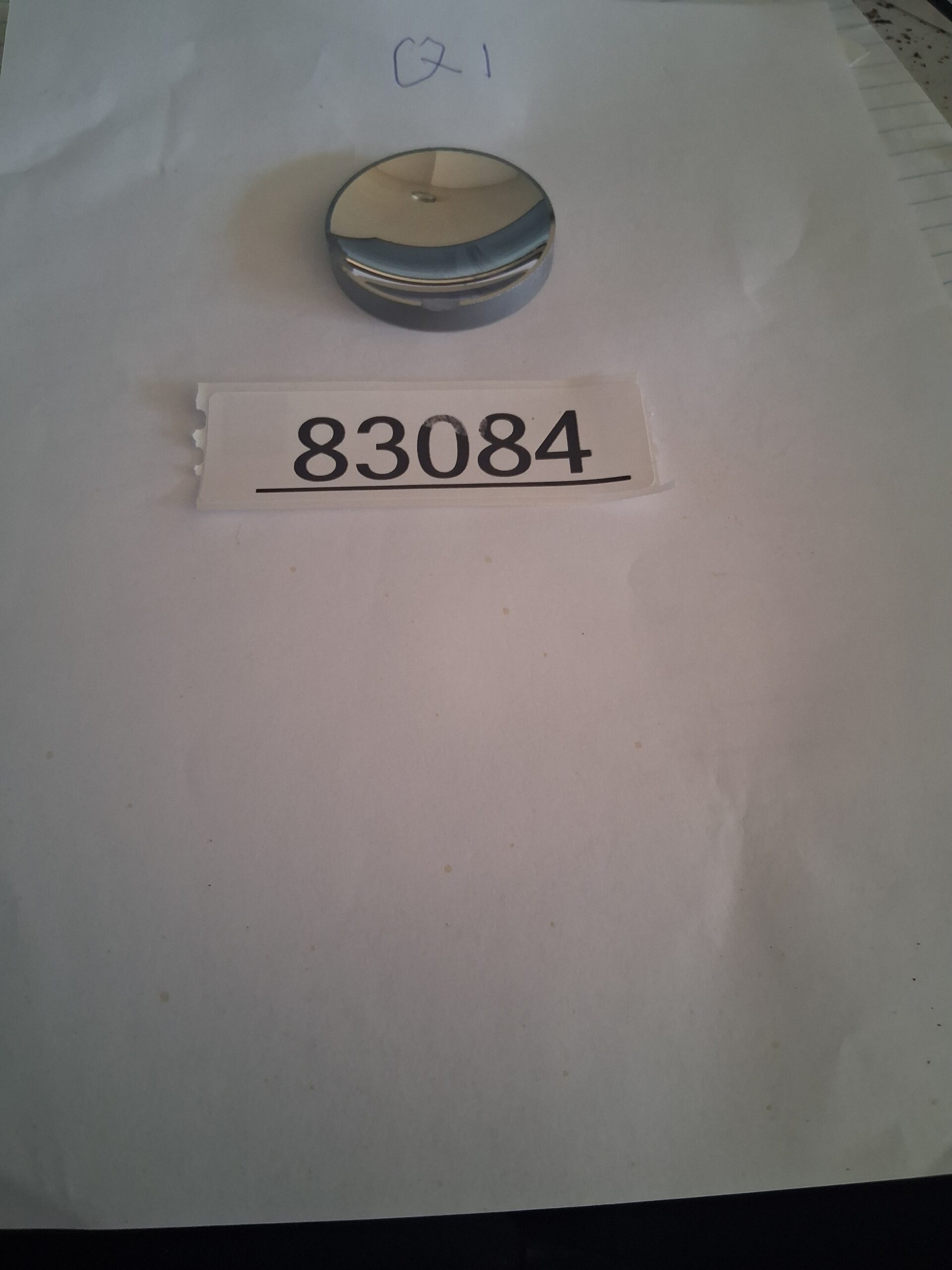

2-Inch Fused Silica Parabolic Mirror – Fast f/0.625 Optic with Protected Aluminum Coating
This is a high-quality 2-inch diameter on-axis parabolic mirror, precision-ground from optical-grade fused silica (synthetic quartz glass) for exceptional thermal stability and broadband performance.
The front surface features a concave parabolic curve, delivering a very fast focal ratio of approximately f/0.625 (focal length ~1.25 inches) . Parabolic mirrors are essential for applications that demand aberration-free focusing, as they eliminate the spherical aberration inherent in spherical mirrors. This is particularly critical for very “fast” systems like this one.
The reflective coating is protected aluminum with a thin SiO₂ hard coat on top. This is an industry-standard coating that ensures durability, resistance to tarnishing, and high reflectivity across visible and near-IR wavelengths (typically >85% average from 400-1100 nm) . The SiO₂ overcoat protects the delicate aluminum layer, making the mirror suitable for handling and cleaning, and resistant to oxidation .
The back surface is polished plano, which minimizes mounting-induced stress and allows for easy, repeatable integration into optical setups.
Substrate Excellence: Fused Silica
The choice of fused silica is a significant advantage. Unlike common substrates like aluminum or N-BK7 glass, fused silica boasts an ultra-low coefficient of thermal expansion (0.50 x 10⁻⁶ /°C) . This makes the mirror exceptionally stable in environments with fluctuating temperatures. Its low steady-state distortion coefficient ensures the optical figure is maintained even under thermal load, a critical feature for laser applications . It is also lightweight yet rigid, enhancing portability without sacrificing stability.
Key Specifications
| Specification | Details |
|---|---|
| Type | On-Axis Parabolic Mirror (Concave) |
| Diameter | 2 inches (50.8 mm) |
| Edge Thickness | 8 mm |
| Focal Length (EFL) | ~1.25 inches (31.75 mm) |
| Focal Ratio (f/#) | f/0.625 (Exceptionally Fast) |
| Substrate Material | Fused Silica (Synthetic Quartz) |
| Substrate CTE | 0.50 x 10⁻⁶ /°C |
| Front Surface | Parabolic, Concave |
| Back Surface | Plano (Polished) |
| Reflective Coating | Protected Aluminum (with SiO₂ overcoat) |
| Coating Reflectivity | >85% (Avg.) from 400-1100 nm |
| Condition | Used – Good optical condition (see notes) |
Applications & Uses
The combination of a large 2″ aperture and an ultra-fast f/0.625 focal length makes this mirror ideal for applications where maximum light collection in a compact form is paramount.
-
Laser Focusing and Collimation: Excellent for creating tight, high-intensity focal spots from larger diameter beams. Its fast f/# is particularly useful for applications like laser-induced breakdown spectroscopy (LIBS) or pumping nonlinear crystals.
-
Small Telescope Optics: Can serve as a very fast primary mirror for a compact Newtonian telescope, offering exceptional light-gathering power for deep-sky observations.
-
Solar Concentration: Perfect for DIY solar experiments or concentrators, where focusing intense sunlight to a small point is required.
-
Custom Optical Experiments: A valuable tool for R&D breadboards, test benches, and educational setups needing a high-NA reflective element.
-
Illumination Systems: Can be used as a condenser to collect and focus light from a divergent source (like an LED or arc lamp).
Condition Note
The mirror is in good optical condition and is ready for immediate use in hobbyist, educational, or research projects.
-
Front Reflective Surface: Shows some insignificant micron-sized spider-type scratch marks. These are purely cosmetic and do not significantly impact optical performance for most applications.
-
Edges: There are minor chips around the edge of the substrate. This is common with surplus optics and does not affect the clear aperture or optical figure.
-
Core Optic: The central, optically functional area of the mirror is intact and performs as specified.
