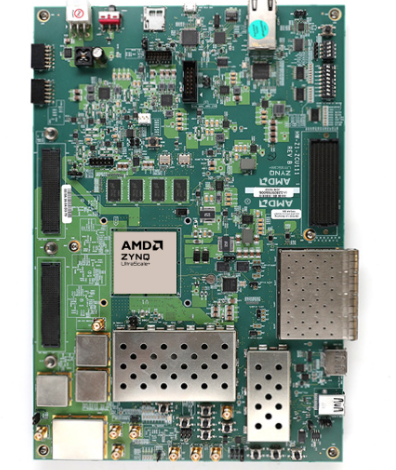

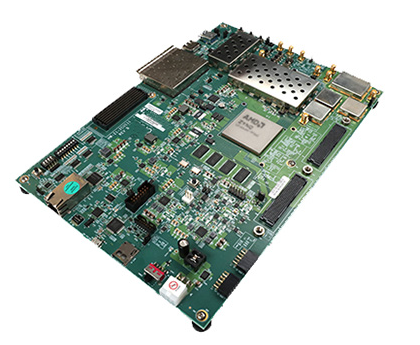

Zynq UltraScale+ RFSoC ZCU111 Evaluation Kit

Overview
The Zynq UltraScale+ RFSoC ZCU111 Evaluation Kit is a powerful platform designed to streamline the development and evaluation of RF-class applications.

Key Features

1. Core Technology:
   • Built around the XCZU28DR-2FFVG1517E device featuring:
     • 8 RF-ADC channels (up to 4 GSPS).
     • 8 RF-DAC channels (up to 6.4 GSPS).
     • Integrated ARM® Cortex®-A53 quad-core and Cortex-R5 dual-core processors.
     • Programmable logic for custom hardware acceleration.
2. Memory:
   • 4 GB DDR4 memory for programmable logic.
   • 4 GB DDR4 for processing system.
   • 512 MB QSPI flash and microSD card support.
3. Connectivity:
   • High-speed Interfaces: Dual 10 GbE, USB 3.0, PCIe Gen3 x8.
   • RF Connectors: SMA connectors for RF input/output.
   • Expansion via FMC+ connectors for additional modules.
4. Integrated Tools:
   • Xilinx Vivado® Design Suite compatibility.
   • Pre-configured designs and evaluation tools for streamlined setup.
5. Other Features:
   • User I/O: LEDs, switches, pushbuttons.
   • Power Management: Onboard power regulation and monitoring.

Applications

1. Wireless Communication: Advanced 5G base stations and software-defined radios.
2. Radar Systems: Ideal for military and commercial radar signal processing.
3. Medical Imaging: High-resolution imaging systems such as ultrasound.
4. Instrumentation: High-speed data acquisition and signal processing.

What’s Included

• ZCU111 Evaluation Board.

Specifications

Why Choose the ZCU111 Evaluation Kit?

The ZCU111 provides an all-in-one platform for high-performance RF applications, combining cutting-edge ADC/DAC capabilities, robust processing power, and flexible programmability
