Product Description

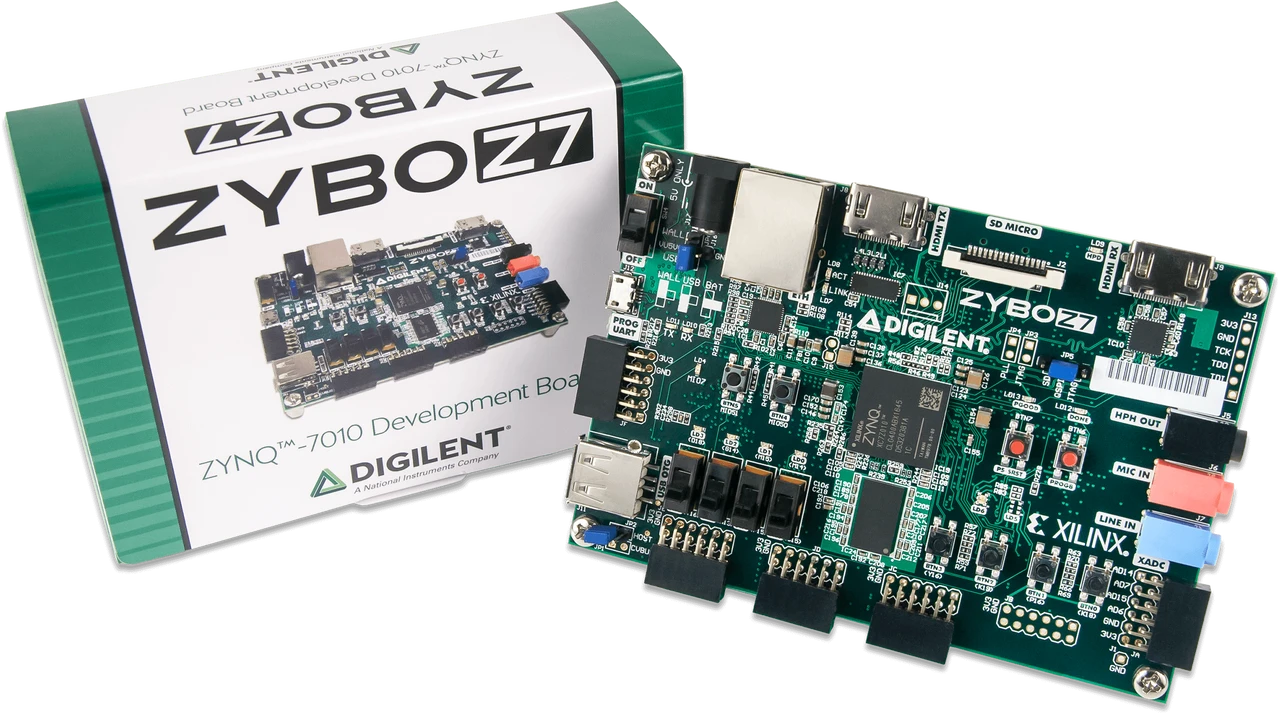

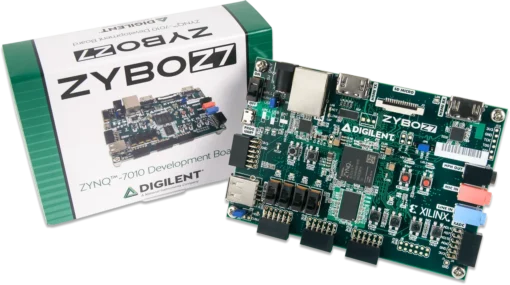

Digilent Zybo Z7 Zynq-7000 ARM/FPGA SoC Development Board – High-Performance Embedded Vision Platform
This used Digilent Zybo Z7 is a ready-to-use embedded software and digital circuit development board built around the AMD Zynq-7000 family. The Zynq-7000 tightly integrates a dual-core ARM Cortex-A9 processor with AMD 7-series Field Programmable Gate Array (FPGA) logic .
A rich set of multimedia and connectivity peripherals make the Zybo Z7 an affordable single-board computer. A MIPI CSI-2 compatible Pcam connector, HDMI input, HDMI output, and high DDR3L bandwidth establish the Zybo Z7 as a capable solution for high-end embedded vision applications. Attaching additional hardware is made easy by the Zybo Z7’s Pmod connectors, allowing access to Digilent’s catalog of over 70 Pmod peripheral boards .
Condition Note: This board is untested and sold as-is. Micro B USB cable is not included .
Key Specifications
| Component | Specification |
|---|---|
| Manufacturer | Digilent |
| Part Number | 410-351-10 |
| Processor | Zynq-7000 (dual-core ARM Cortex-A9) |
| CPU Speed | 667 MHz |
| FPGA Logic | Equivalent to Artix-7 FPGA |
| DDR3L Memory | 1 GB, 32-bit bus @ 533 MHz (1066 MHz) |
| Quad-SPI Flash | 16 MB (Winbond W25Q128JV on rev D.0) |
| Ethernet PHY | Gigabit (Realtek RTL8211F on rev D.0) |
| USB | USB-JTAG, USB-UART bridge, USB 2.0 OTG PHY |
| Video | HDMI sink (input), HDMI source (output) with CEC |
| Audio | Audio codec with stereo headphone, line-in, mic jacks |
| Camera | MIPI CSI-2 compatible Pcam connector |
| Pmod Ports | 6 (Zybo Z7-20 variant) / 5 (Zybo Z7-10 variant) |
| User I/O | 6 push-buttons, 4 slide switches, 5 LEDs, 2 RGB LEDs |
| Boot Options | JTAG, Quad-SPI flash, microSD card |
| Power | USB or 5V external source |
| Condition | Used – Untested |
| ECCN | 5A992.c |
On-Board Features
| Component | Description |
|---|---|
| Zynq-7000 SoC | Dual-core ARM Cortex-A9 + Artix-7 FPGA fabric |
| 1 GB DDR3L | High-bandwidth memory for PS and PL |
| 16 MB QSPI Flash | Factory programmed with unique EUI-48/64™ identifier |
| HDMI Input | Sink port with CEC (for Zybo Z7-20) |
| HDMI Output | Source port with CEC |
| Pcam Connector | MIPI CSI-2 compatible camera interface |
| Audio Codec | Headphone, line-in, microphone jacks |
| Gigabit Ethernet | RJ45 with Realtek PHY |
| USB OTG | Host/Device capable |
| microSD Slot | Boot and storage expansion |
| 6 Pmod Ports | For peripheral expansion |
Applications
-
Embedded Vision Systems: Using Pcam connector and HDMI in/out
-
FPGA/SoC Education: Learning Zynq-7000 architecture and RTL design
-
Linux on ARM: Embedded Linux development with PetaLinux
-
High-Performance Embedded Computing: DSP, AI/ML acceleration at the edge
-
Custom Peripheral Development: Using 6 Pmod expansion ports
-
Digital Signal Processing: Leveraging FPGA fabric for real-time processing
-
Academic Coursework: Documented use for teaching Vitis, Vitis HLS, and Vivado
Condition
SOLD AS IS
USED – PULLED FROM SURPLUS
PCB/COMPONENTS: [Please describe – e.g., “clean, no visible damage”]
ZYNQ CHIP: [Please describe – e.g., “surface mount device intact”]
HDMI CONNECTORS: [Please describe – e.g., “ports intact, no bent pins”]
PMOD HEADERS: [Please describe – e.g., “all 6 headers straight, pins undamaged”]
Pcam CONNECTOR: [Please describe – e.g., “MIPI CSI-2 connector intact”]
USB PORTS: [Please describe – e.g., “Micro B, USB OTG ports undamaged”]
FUNCTIONALITY NOT TESTED
NO MICRO B USB CABLE INCLUDED (cable not included from factory)
NO POWER SUPPLY, SOFTWARE, OR DOCUMENTATION INCLUDED (unless specified)
⚠ POWER REQUIREMENT: Board can be powered via USB or any 5V external power source . Micro B USB cable is not included.
⚠ SOFTWARE NOTE: This board requires AMD Vitis/Vivado software. Check availability in your country before purchasing .
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 6 × 4 in |
