Yuneec E90X 20MP 4K Survey Grade Drone Camera

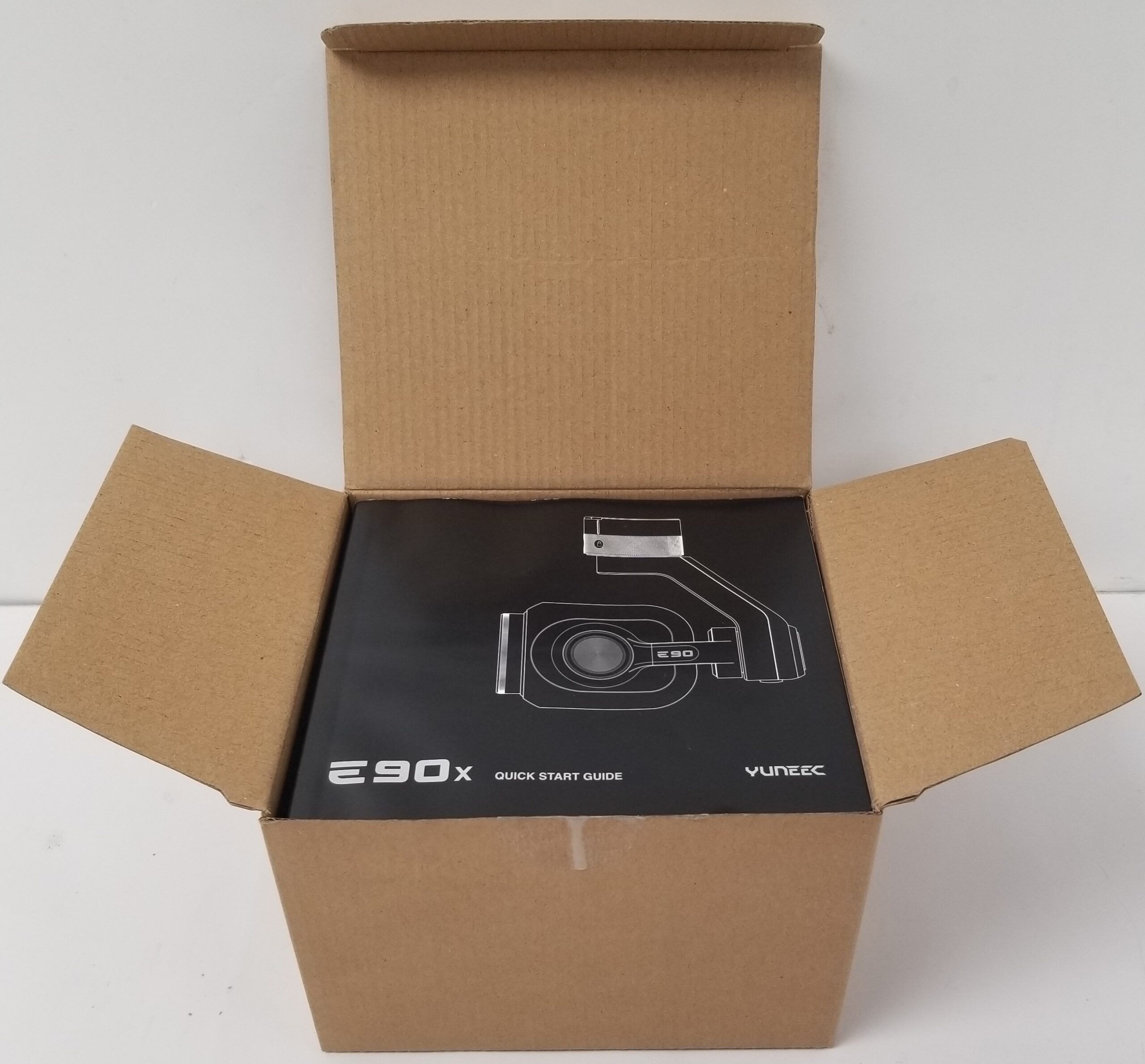

Yuneec E90X 20MP 4K Survey Grade Drone Camera. New in original box with manual. Purchaser responsible for compatibility and proper installation/use. As shown.

The Yuneec E90x is designed for the H520E commercial grade hexacopter. Featuring a 20MP camera with a 1-inch SONY CMOS sensor, the E90x allows pilots to accurately perform surveys and inspections.

E90X Camera
BURST SPEED: (PHOTO) 3@1S / 5@1S / 7@1S
COLOR SENSITIVITY: RGB
COMPRESSION BIT RATE: 100MBPS
COMPRESSION TYPE: AVC/HEVC
DNR: 2D FILTER
EFFECTIVE PIXELS: 20 MEGAPIXELS
FOV: DFOV 90.3 ± 3°
FOCAL LENGTH: 23MM
FRAMERATE: 24/25/30/48/50/60/120
FSTOP RANGE: F2.8 ± 5%
GIMBAL AXIS: 3
GIMBAL CONTROL ACCURACY: ± .02°
GIMBAL MAX. CONTROL RANGE: TILT: -90° – 30° PAN: 360° LIMITLESS
GIMBAL MAX. CONTROL SPEED: TILT: 50°/S PAN: 50°/S
ISO RANGE: 100 – 12800
MAX VIDEO RESOLUTION: 4K 60FPS
MINIMUM SD CARD CLASS: 10 U3
MTF 104LP/MM, CENTER: 0.6, CORNER : 0.4
SENSOR SIZE: 1 INCH CMOS
SHUTTER SPEED: 1/8000 – 8S
SHUTTER TYPE: ROLLING
SNR: ISO100, SNR 36DB
STORAGE TEMPERATURE: 10°C – 30°C
WEIGHT: 330G

This camera will only work with the Yuneec H520E.

E90X Camera
– 1-Inch Sensor
– Increased Sensitivity in Low-light Environments
– Orthomapping, 3D Modeling and Close-up Inspections
– 23mm Lens Equivalent
– Advanced H2 Signal Processing
– Ultra HD 4k Video at 60 fps
– Lens Adapter Threaded to fit 40.5mm Standard Filters for Flexibility and Convenience
– Low Distortion/Minimal Lens Dispersion
– Hot-Swap Capable Payload
– Continuous 360 Degree Rotation

Capture Highly Detailed Images
The E90X is designed for law enforcement applications such as accident recreation, search and rescue operations and for 3D mapping/modeling. In addition, broadcast and production professionals will appreciate the dramatic aerial shots afforded by the E90X’s high frame rate and accurate color. The E90X’s 1-inch 4K resolution sensor, combined with the H520E best in- class airframe stability, provides for extremely high quality imaging. The result is superior high-resolution 2D ortho or 3D maps, precision volumetrics, and 3D surface models.

Detailed Data for Deep Analysis
Precise accuracy, quality data, and efficiency all combine in the H520E, allowing for informed decision-making, awareness of challenging terrain, and other obstacles to construction. Pre-construction surveys and site topography may be slow, expensive, and can stand in the way of rapid decision-making processes. With topographic maps and 3D models, stakeholders can visualize and plan, providing for informed decisions and plans of action. Autonomous flight allows for repeated flights that may be layered to determine any changes in the work site and provide comparisons over time. Coupled with auto-gridding found in the DataPilot™ software, the Yuneec mapping solution provides for efficient planning, execution, and evaluation of data in many post-flight analytic or stitching software tools from premiere Yuneec partners such as Pix 4D™, etc.

The Professional Solution for Law Enforcement Applications
Clear accident scenes faster, gather incident forensic evidence on-scene while it’s clean, empower your team to safely handle dangerous situations with an aerial view, and cover large search areas in minutes instead of hours. With the E90X camera and H520E aircraft, Accident Scenes may be captured for 2D or3D scene archive, suitable for any post-accident investigation. Using industry tools such as Pix4D™, PhotoModeler™, or other professional software applications, agencies are able to investigate, determine, and reexamine accident scenes with granular detail. Imagine having the capability of a helicopter within the trunk of an officer’s vehicle. The Yuneec H520E offers a tool which revolutionizes how police departments engage in a variety of public safety scenarios. An aerial view in a public safety situation offers a safe vantage point to monitor hostile situations and plan resource allocation or precision tactics before engaging the situation. Attach the CGOETX, and the H520E becomes an aerial tool assisting in inspection of chemical spills, suspicious packages, or tracking a suspect.

Tactical Tool that Assists Officers in High Intense Situations
Clear accident scenes faster, gather incident forensic evidence on-scene while it’s clean, empower your team to safely handle dangerous situations with an aerial view, and cover large search areas in minutes instead of hours. The H520E Hexacopter aerial system has been developed specifically for commercial use. This sUAS enterprise solution features a proven, stable, long flight time airframe, with multiple payload options and advanced DataPilot™ mission planning software.

Accident Scene Recreation
With the E90X camera and H520E aircraft operated by Yuneec DataPilot™, accident scenes may be captured for 2D or3D scene archive, suitable for any post-accident investigation. Using industry tools such as Pix4D™, PhotoModeler™, or other professional software applications, agencies are able to investigate, determine, and reexamine accident scenes with granular detail.

Crime Scene Information Gathering
Too often, contamination of a crime scene becomes weakest link in crime scene investigation. Deploying an sUAS system prior to entering a scene allows for accurate capture of data without touching the scene itself. High quality camera systems with embedded GPS data enables evidence-gathering to be captured and examined before the crime, accident, or fire investigators or first-responders have entered the area.

Quickly Change Cameras Without Powering Down
All Yuneec commercial camera systems are hot-swap capable which minimizes down time and improves productivity.
