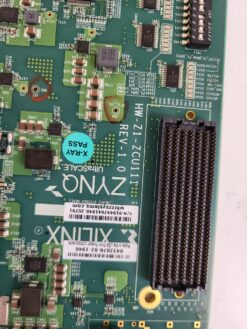

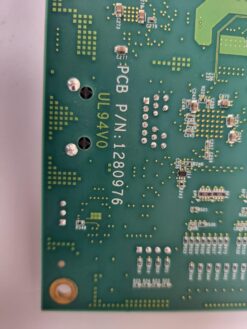

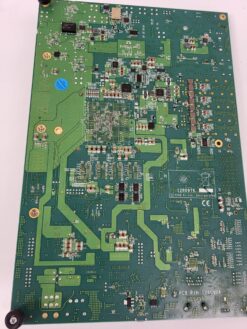

Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Board

This board came to us as surplus and it is not working correctly.

We do not know what the error is, and have no way of testing Circuit Boards

This item is being sold “as is ” final sale.

Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Board

The Xilinx Zynq UltraScale+ RFSoC ZCU111 Evaluation Board is a powerful development platform designed for high-performance RF system prototyping. Built around the XCZU28DR RFSoC, the ZCU111 integrates eight 12-bit ADCs and eight 14-bit DACs, enabling direct RF sampling at rates up to 4.096 GSPS (ADCs) and 6.554 GSPS (DACs). This all-in-one solution combines programmable logic, high-speed analog, and embedded ARM processing to streamline the design of complex systems such as 5G wireless infrastructure, phased-array radar, DOCSIS cable modems, and electronic warfare.

The ZCU111 features dual DDR4 memory banks (one each for the processing system and programmable logic), multi-gigabit transceivers, SFP28 optical networking support, and multiple FMC+ and RFMC connectors for flexible I/O. It ships with the XM500 RFMC balun card, bandpass/low-pass filters, and essential cables. Full support for the Vivado Design Suite and PetaLinux tools allows rapid software/hardware co-design.

Engineered for RF engineers, researchers, and advanced system architects, the ZCU111 is a benchmark platform for next-gen RF, data converter, and embedded processing innovation.
