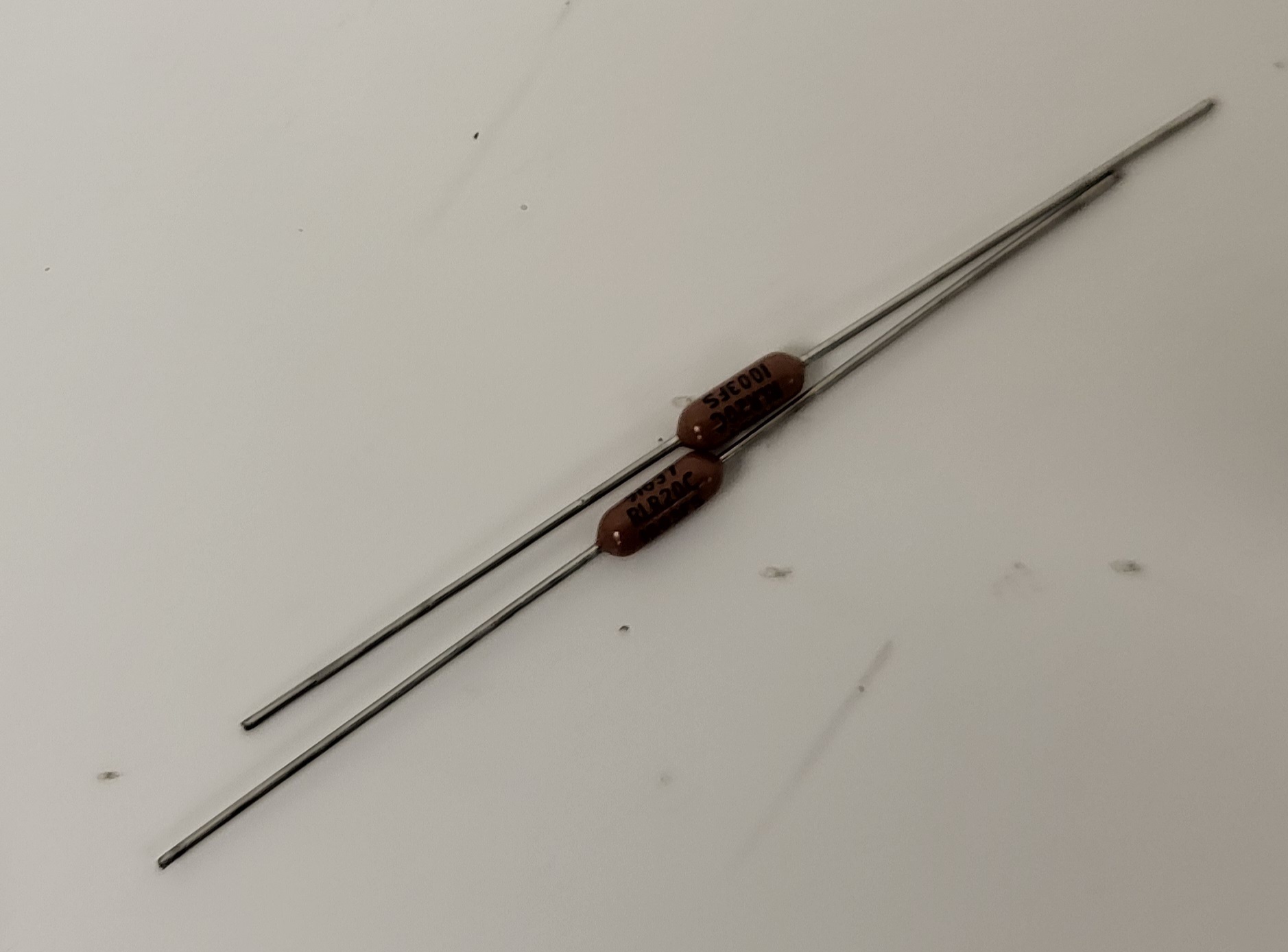

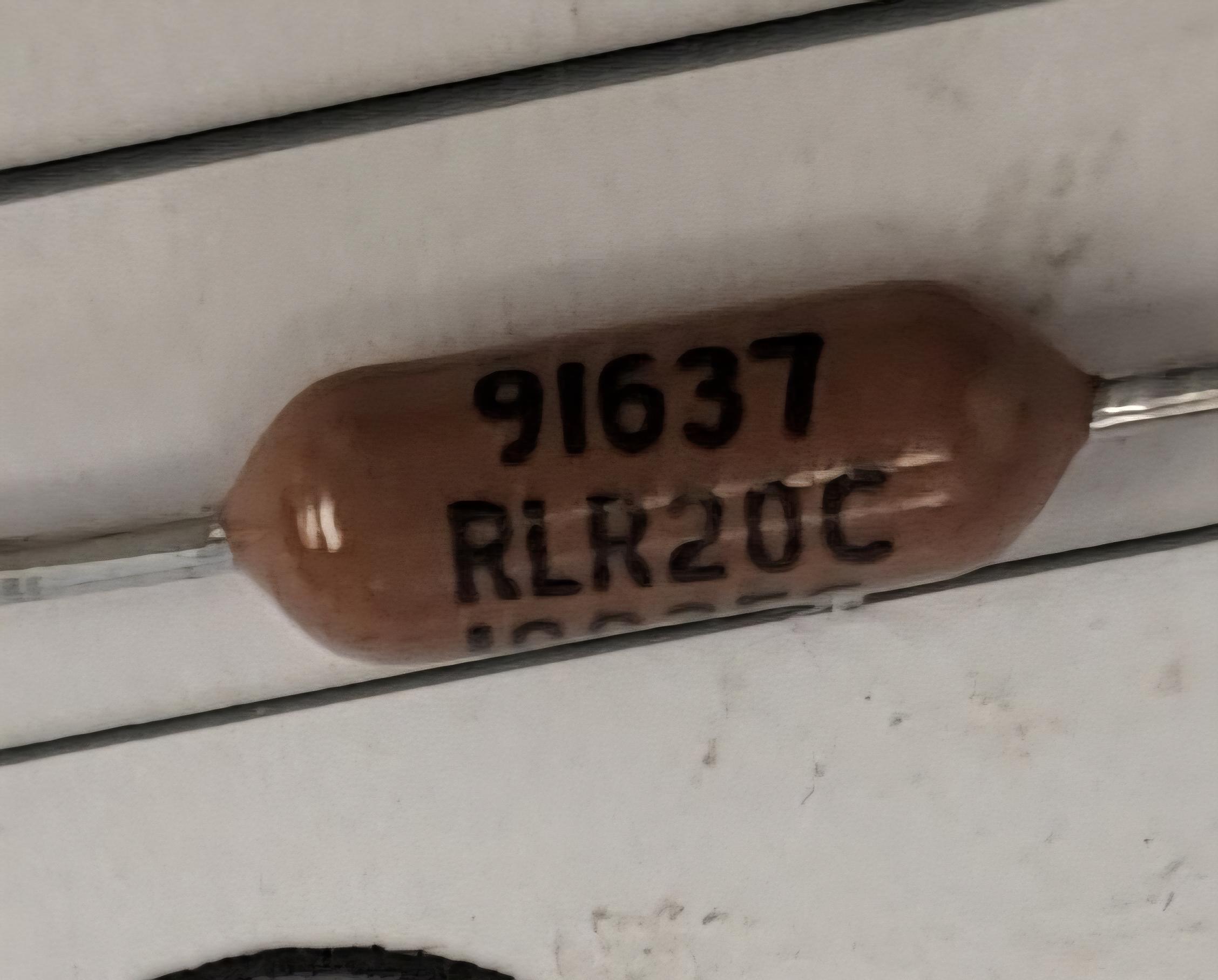

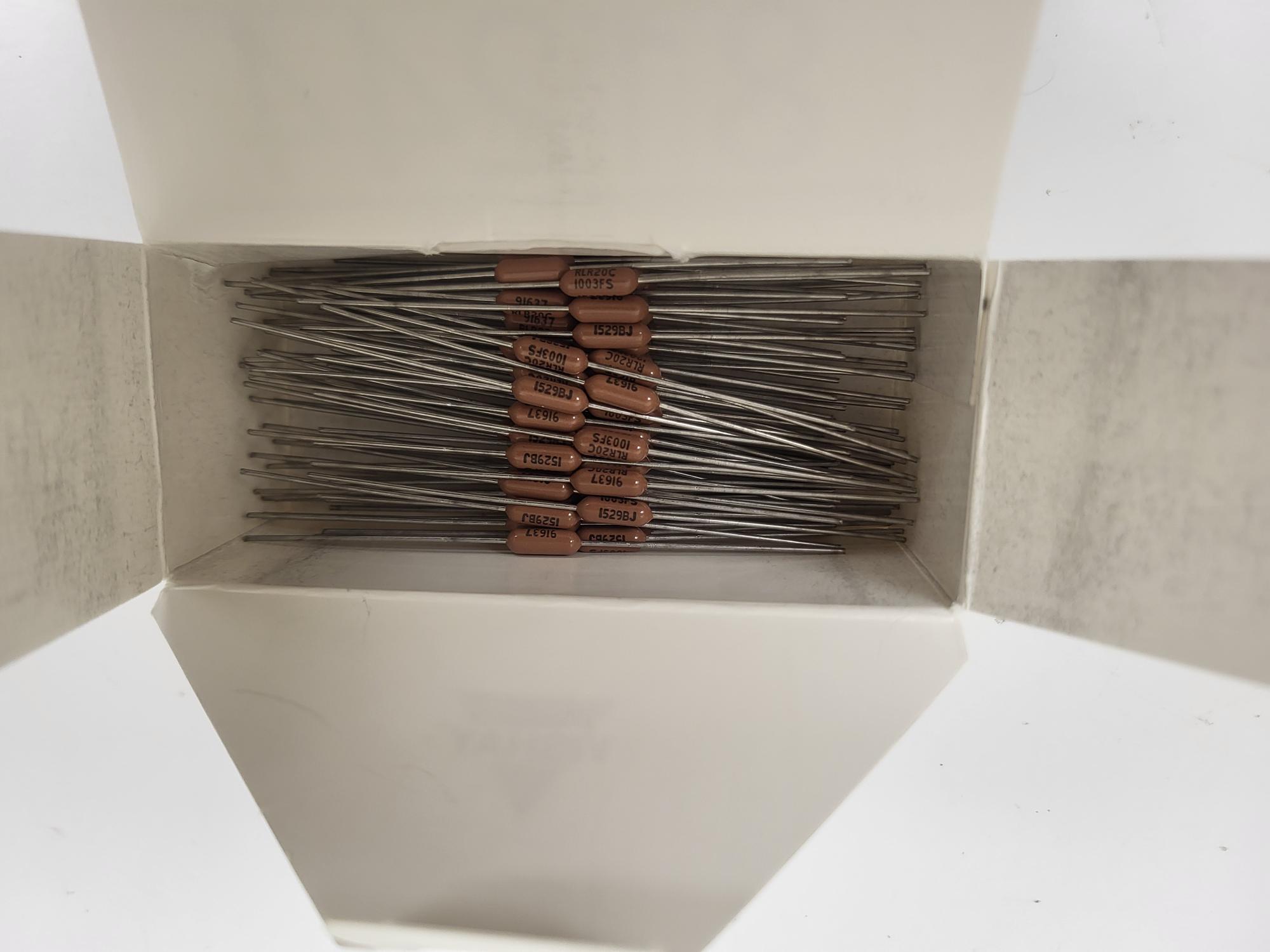

Vishay Metal Film Resistors RLR20C1003FS(lot of 30)

Vishay Metal Film Resistors RLR20C1003FS

Metal Film resistors area  type of resistor that utilizes a thing metal film as the resistive element deposited onto a ceramic rod.

They are known for their high accuracy, stability, low noise properties, and low temperature coefficient of resistance.

• Resistance: 100 kΩ (100,000 ohms)

• Tolerance: ±1%

• Power Rating: 0.5 W (½ watt)

• Voltage Rating: 350 V

• Dielectric Type: Metal film (low noise, stable performance)

• Package / Terminations: Axial-lead, epoxy-coated for moisture protection

✅ Reliability & Specifications

• Certified to MIL‑PRF‑39017 standards, ensuring suitability for military and aerospace applications

• Failure rate: Excellent reliability, noted as 0.001% per 1,000 hours

⚙️ Application Fit

• Ideal for demanding use cases where temperature stability, low noise, and precision matter—think avionics, instrumentation, and high-reliability electronics.

• Axial package makes it suited to through-hole board designs or prototyping where radial mounting isn’t practical.
