Vicor Westcor Power Supply Module

The Vicor Corp. Westcor Power Supply Module is a high-efficiency AC-DC power supply module designed for demanding industrial, telecom, and computing environments. Specifically, this module falls under the Mini ModuPAC or FlatPAC series, which are known for their modular and configurable power supply solutions, ideal for providing multiple regulated voltage outputs for various applications.

Key Features and Components:

1. Heatsink:

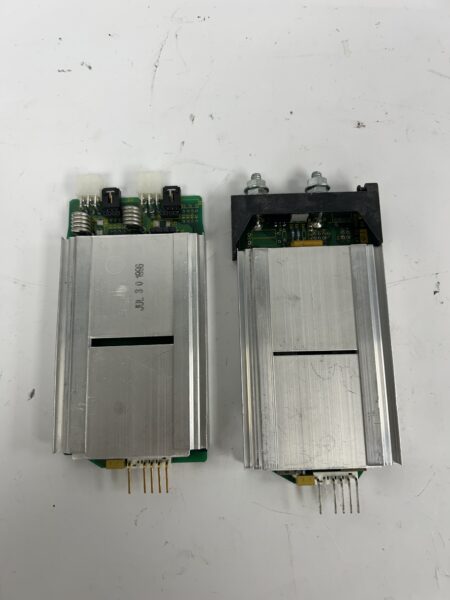

   • A large aluminum heatsink indicates this module is built to dissipate heat effectively, ensuring the power conversion components, such as rectifiers or power converters, remain within their operating temperature range during high-load operations.
2. High-Current Terminals:
   • The presence of two large screw terminals at the bottom allows for high-current DC output, making the module suitable for powering heavy-duty equipment that requires substantial power.
3. Pin Headers & PCB Layout:

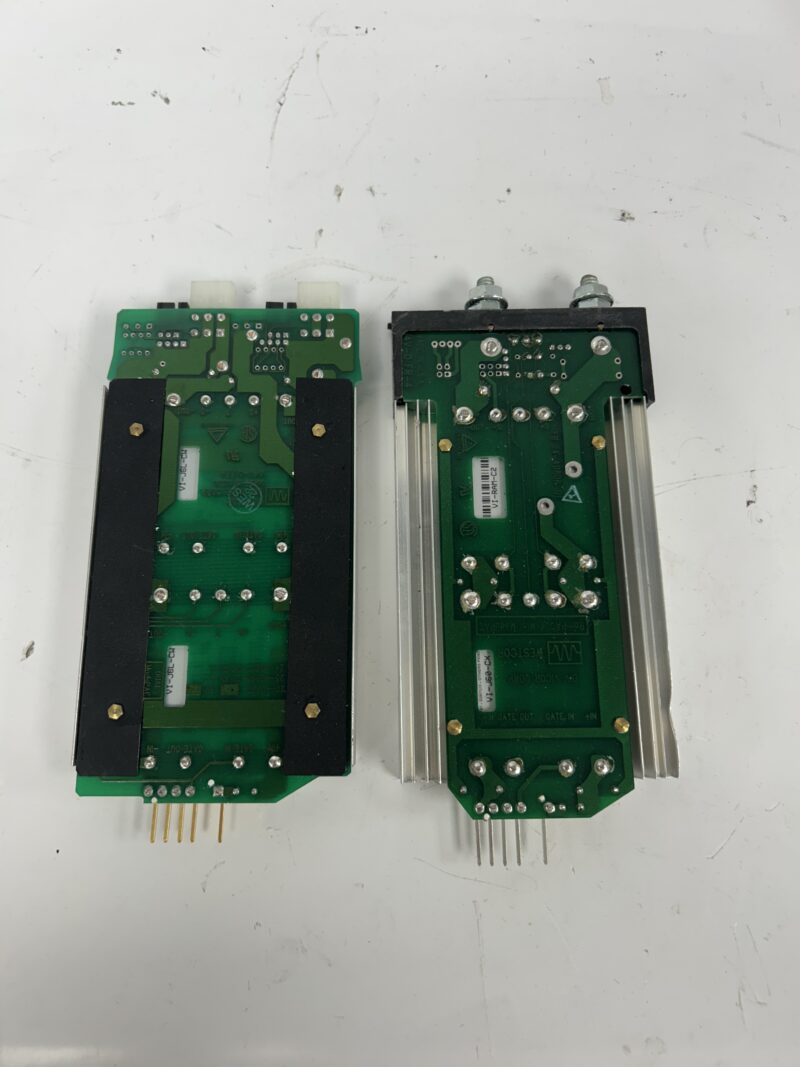

   • The Printed Circuit Board (PCB) is equipped with pin headers and connectors that facilitate control, configuration, or monitoring of the power supply. These may include connections for control signals or voltage monitoring.
4. Product Labels & Markings:
   • The module is labeled with identifiers like “VI-RAM-FC2”, part of the product’s identification number, indicating the specific configuration of the power module.
   • The PCB also features “IN”, “GATE”, and “OUT” labels, suggesting inputs for control signals, gate control, and output connections for regulating or monitoring the power supply.
5. Mounting Brackets & Industrial Design:
   • Designed with mounting brackets and a robust industrial-grade layout, this module is built to withstand demanding environments like data centers, telecommunication racks, and industrial automation systems.

Applications:

• Telecommunications Infrastructure:
  • Ideal for powering network equipment, base stations, or other communication systems that require stable and reliable power conversion.
• Data Centers:
  • Used for converting AC power to multiple DC outputs, supporting the powering of sensitive electronics in high-demand server environments.
• Aerospace Systems:
  • Suitable for aerospace power management systems where high efficiency and reliability are critical for operation.
• Industrial Automation:
  • This power supply module can be integrated into industrial control systems, providing power to automated machinery and process equipment.
