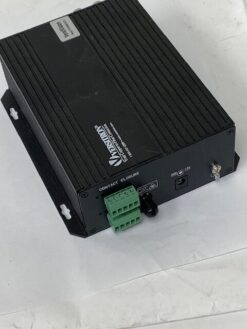

Versitron FVTM4BC5A‑CE 4‑Channel Fiber Optic Transmitter

🎥 Product Overview & Features

• Channels: Transmits 4‑channel analog video plus:

  • 2‑channel bi‑directional data

  • 4‑channel bi‑directional audio

  • 4‑channel bi‑directional contact-closure

  • 1‑channel Ethernet

• Fiber & Connector:

  • Uses singlemode fiber

  • ST-style optical connectors

  • Transmission range up to 30 km with no optical attenuation

• Video Performance:

  • 8-bit uncompressed digital video (BNC input)

  • Supports NTSC/PAL/SECAM

  • Bandwidth: 5 Hz–8 MHz; S/N ratio ~60 dB; differential gain/phase <±1°

• Audio, Data & Contact Closure:

  • Audio: 4‑channel, 24-bit encoding, 10 Hz–20 kHz frequency response; S/N >95 dB

  • Data: 1‑channel bi‑directional, up to 300 kbps via RS‑485 (or RS‑232/422 optional)

  • Contact closure: 4‑channel relay output (24 V DC/0.5 A; 125 VAC/0.1 A)

• General Specs:

  • Power: 5 V DC, 2 A supply

  • Optical wavelength: 1310/1550 nm

  • MTBF >100,000 hours

  • Operating temp: –35 °C to +65 °C

  • Storage: –45 °C to +85 °C; Humidity: up to 95% non-condensing
