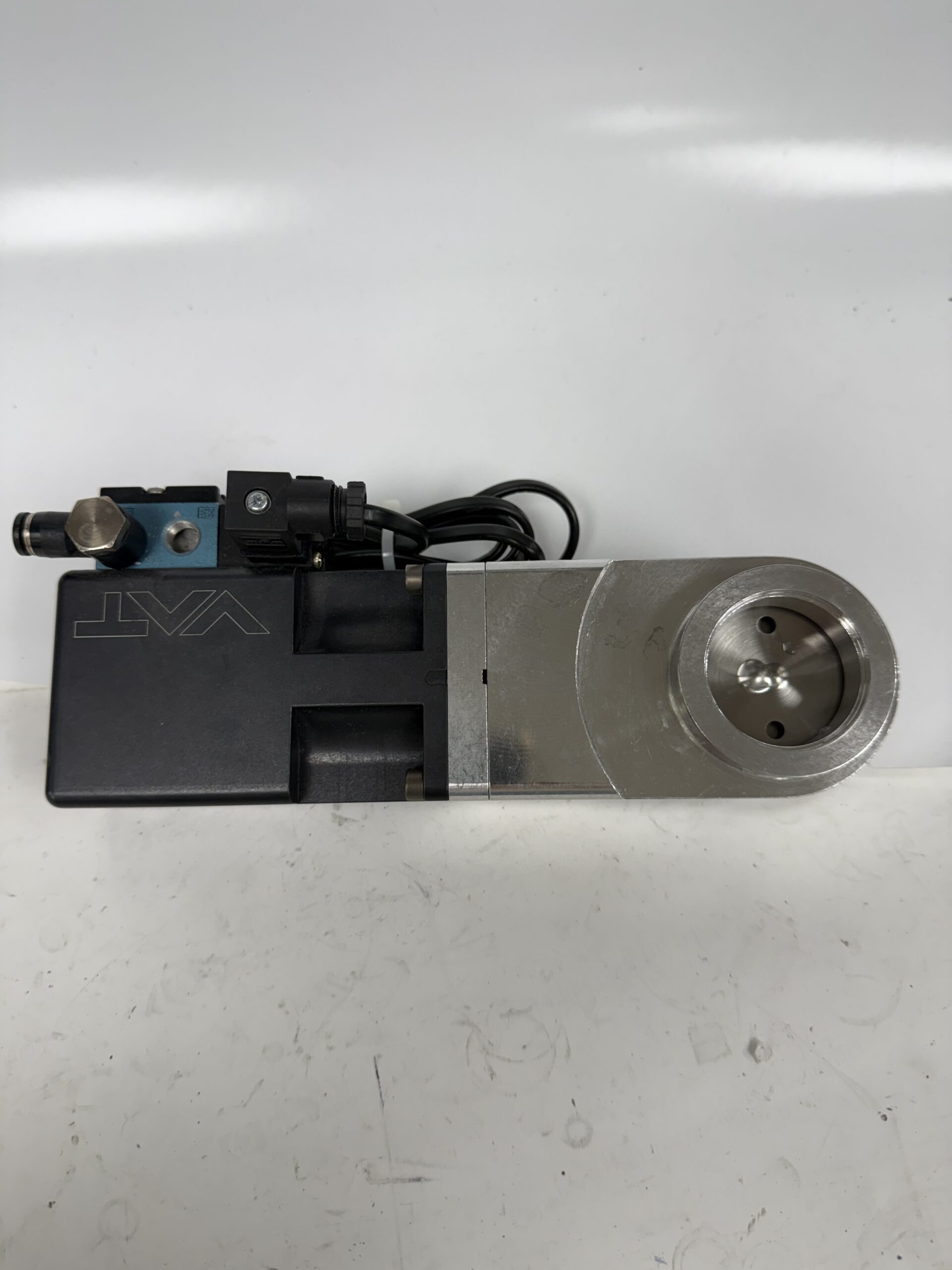

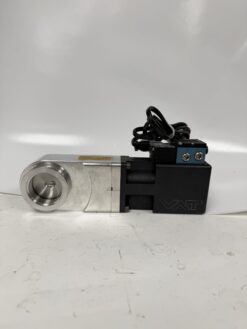

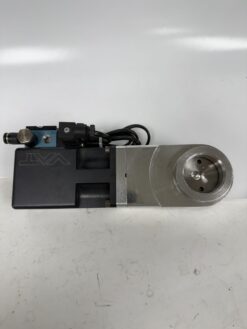

VAT 01232-KA44-0001 Mini Gate Valve

Product Overview:

The VAT 01232-KA44-0001 Mini Gate Valve is a precision-engineered vacuum isolation valve designed for high-performance applications in semiconductor fabrication, research laboratories, and industrial vacuum systems. Featuring a compact form factor with ISO-KF 40 flanges, this valve ensures reliable vacuum integrity and efficient flow control, making it an essential component in ultra-high vacuum (UHV) environments. Its pneumatic actuation with solenoid control allows for seamless integration into automated processes, offering enhanced reliability and efficiency.

Key Specifications:

• Inner Diameter: 1.5 inches (DN 40)

• Flange Type: ISO-KF 40

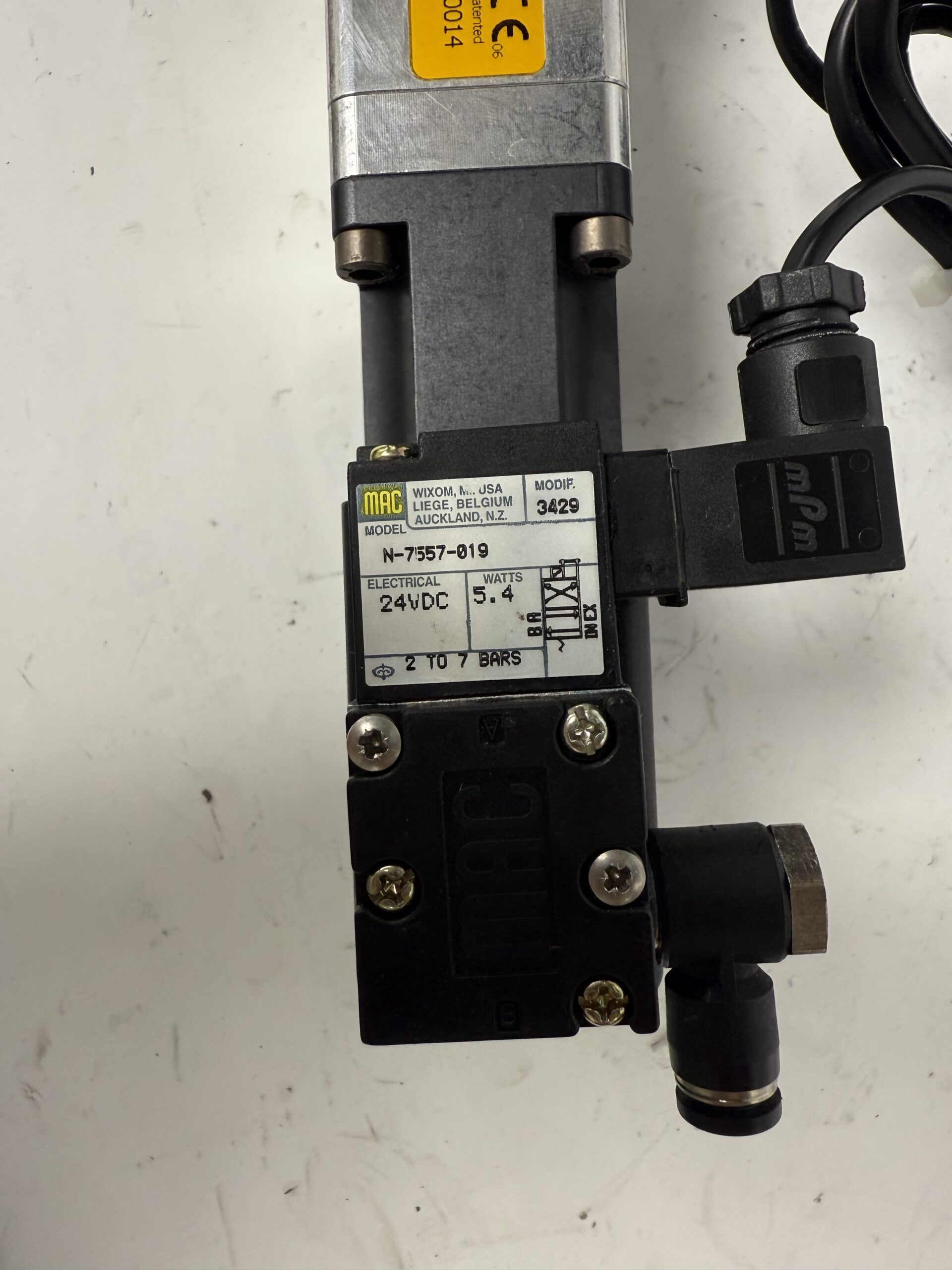

• Actuation: Pneumatic, double-acting with solenoid valve and position indicator

• Leak Rate: < 1 × 10⁻⁹ mbar l/s

• Body Material: Aluminum

• Maximum Differential Pressure (Closed Position): 2 bar

• Operating Temperature Range: -20°C to 150°C

Key Features:

• Ultra-Low Leak Rate: Maintains high vacuum integrity with minimal leakage for critical applications.

• Pneumatic Actuation: Double-acting actuator with solenoid valve enables automated precision control.

• Compact & Durable Design: Lightweight yet rugged aluminum body for long-lasting performance in demanding environments.

• Versatile Application: Suitable for scientific research, semiconductor processing, space simulation chambers, and industrial vacuum systems.

• Reliable Performance: Engineered for long-term stability, minimal maintenance, and high repeatability in vacuum processes.

Conclusion:

The VAT 01232-KA44-0001 Mini Gate Valve is a high-performance solution for vacuum isolation in UHV, research, and industrial applications. Its advanced features, robust construction, and seamless automation capability make it an indispensable tool for professionals seeking precision and efficiency in their vacuum systems.
