✅ Key Features & Specifications
-

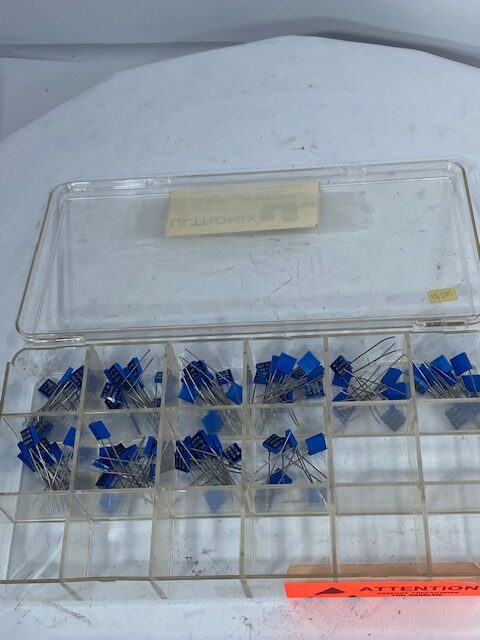

Series / Model: RCK02 / RCK02A. This resistor is part of the “RCK” family of fixed‑film resistors.
-
Resistance range: 1 Ω to 150 kΩ.
-
Power rating (ambient, +70 °C): 0.6 W. At elevated ambient temperature of +125 °C: 0.3 W.
-
For resistances up to 100 kΩ: alternate power derating — often 0.4 W at +70 °C / 0.2 W at +125 °C.
-
Package / Body dimensions:
-
Max width: ~0.0984 inches (≈ 2.5 mm)
-
Body length: ~0.300 ±0.010 inches (≈ 7.62 mm)
-
Body height: ~0.326 ±0.010 inches (≈ 8.28 mm)
-
-
Lead style: wire‑lead terminals (through‑hole / axial).
-
Tolerance / Temperature Coefficient (depending on specific part number within RCK02): some variants show very tight tolerances, e.g. ±0.01% for 14.654 kΩ example part.
-
Operating temperature range: typical temperature coefficient given over −55 °C to +125 °C for many variants.
-
Encapsulation: the resistor is “fixed‑film” and encapsulated — designed for reliability and stability.
