Sale!

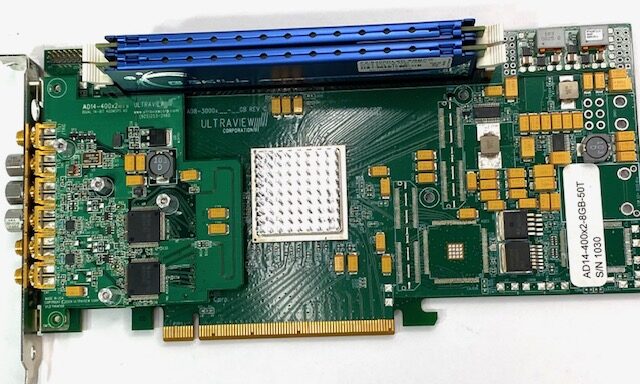

Ultraview AD8-3000 DAQ Board
Original price was: $3,500.00.$1,899.99Current price is: $1,899.99.
SKU: 12087
3 in stock
CompareUltraview AD8-3000 DAQ Board AD14-400×2.
The AD8-3000 is a high-speed data acquisition (DAQ) board by Ultraview, designed for demanding applications (e.g. scientific, military, signal analysis).
Key capabilities: very high sample rates, deep on-board memory, FPGA support, and continuous streaming to host.
Main Specifications
Here are the important technical specs:
| Feature | Specification |
|---|---|
| ADC Resolution | 8 bits |
| Number of Channels | One or two A/D channels (simultaneous) |
| Sampling Rate | Up to 3 GSPS (giga-samples per second) |
| Analog Input Range | −350 mV to +350 mV (must not exceed 800 mV) |
| Input Impedance | 50 Ω |
| Bandwidth (Analog Input) | DC to ~3 GHz (-3 dB point) |
| On-board RAM | 4 GB or 8 GB of DDR2 RAM |
| Data Transfer to Host | Up to ≈1.4 GB/s or more (depending on system) |
| Clock/Trigger Inputs | External clock input supported; some trigger/TTL inputs for selective recording etc. |
| Physical / Power / Operating | 2-slot board in PCIe x16; power requirements around +3.3 V and +12 V rails; operating temp 0-50 °C; size approx 4.2 in × 8.625 in (≈10.7 cm × 21.9 cm) |
| Weight | 2 lbs |
|---|---|
| Dimensions | 12 × 9 × 2 in |
