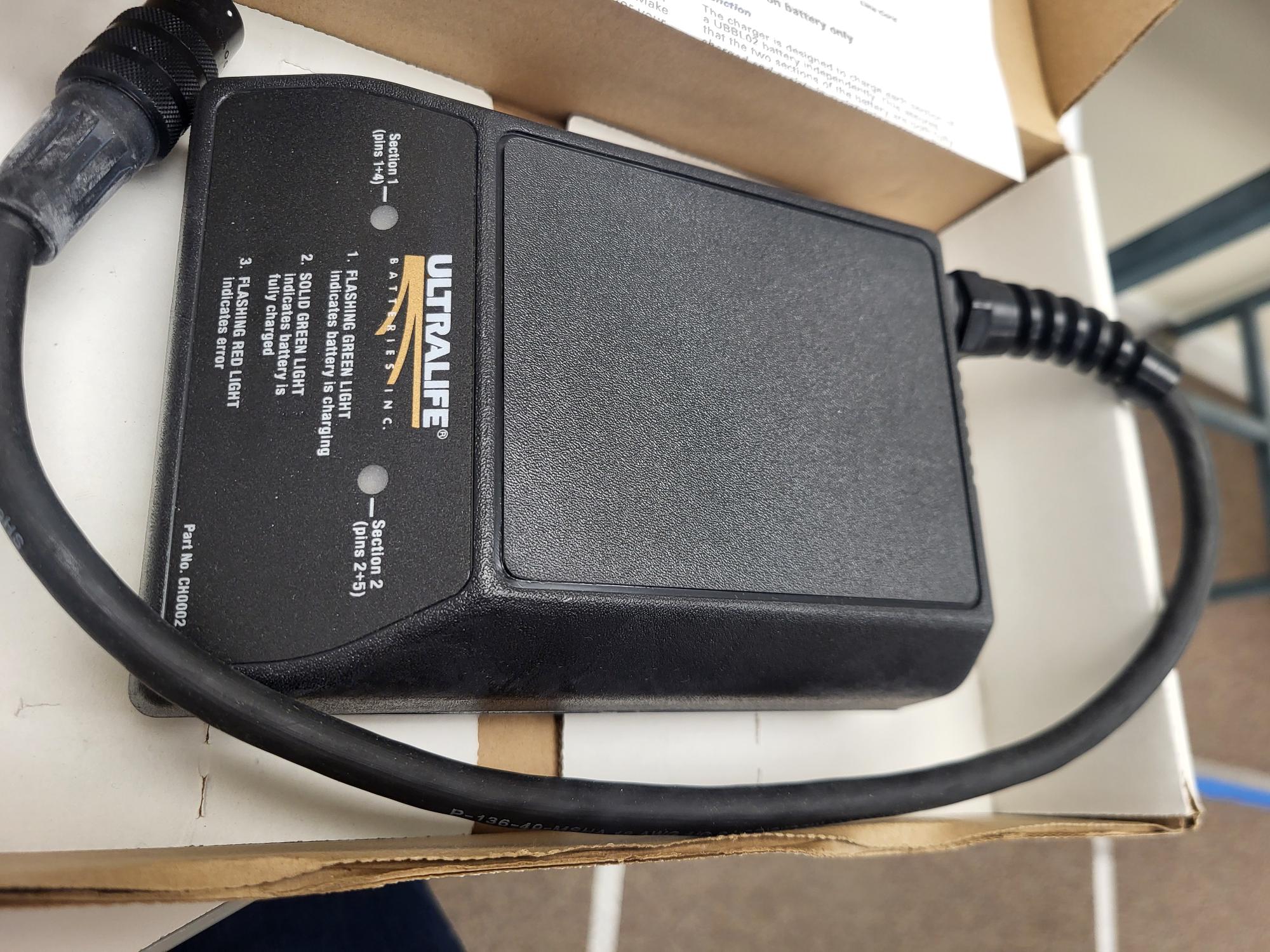

Ultra Life CH0002 Battery Charger

The UltraLife CH0002 Battery Charger is a commercial-grade, desktop charger specifically designed for the UBI-2590 battery family, including models UBBL02, UBBL10, and UBBL13. It’s widely used in military, aerospace, robotics, and research applications.​

🔋 Key Features

• Battery Compatibility: UBI-2590 series (UBBL02, UBBL10, UBBL13)

• Chemistry: Lithium-Ion (Li-Ion)

• Charge Rate: 1.7A

• Output Voltage: 16.8V DC

• Input Voltage Range: 19–40V DC

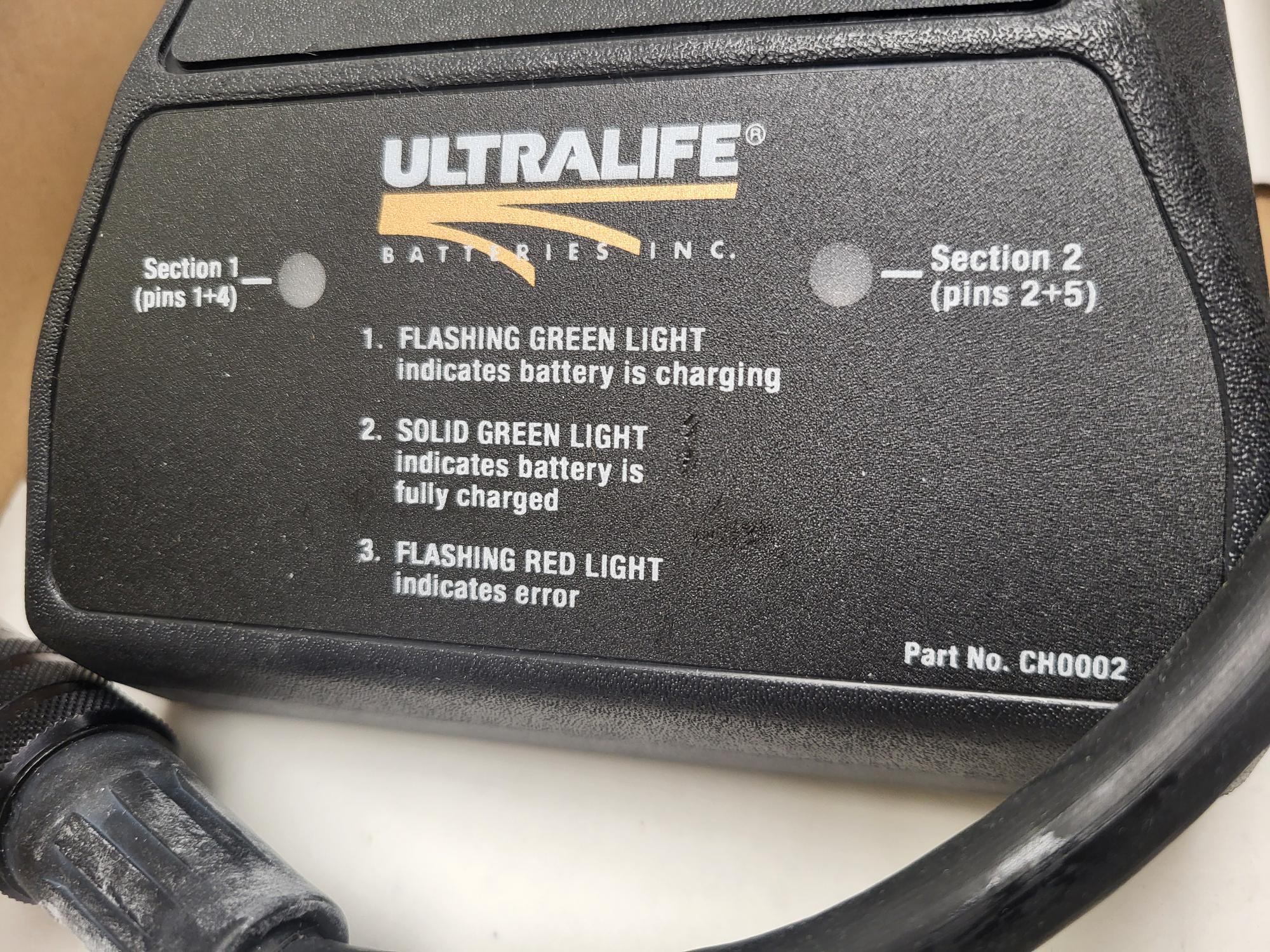

• LED Status Indicators:

  • Off: No battery detected

  • Green Blinking: Charging

  • Green Steady: Charge complete

  • Red Blinking: Error (e.g., shorted terminals or invalid battery)

• Safety Features: Built-in safety circuit to prevent charging shorted or incompatible packs

• Maintenance Charging: Initiates a low-rate charge every 24 hours if the battery remains connected​

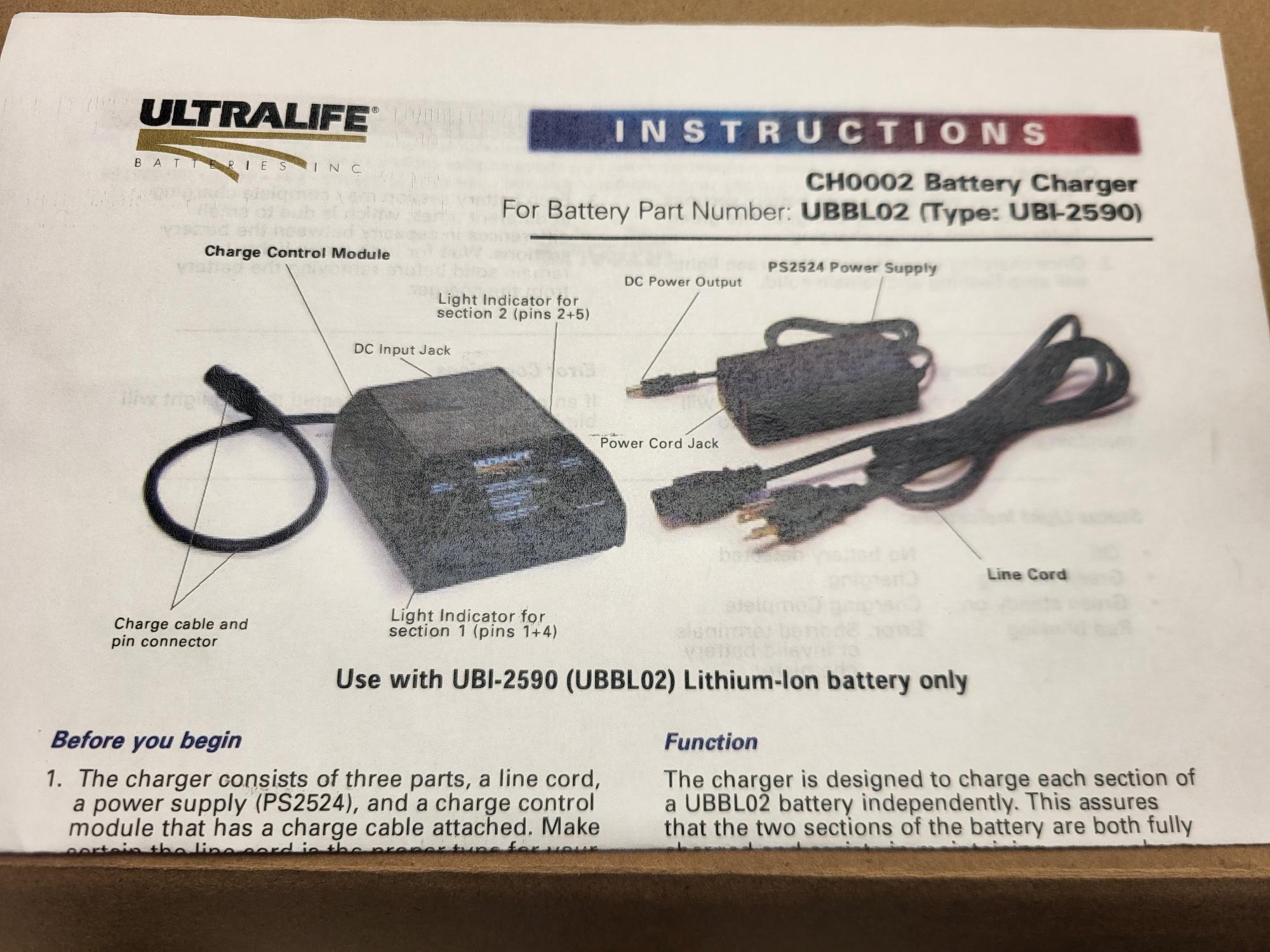

📦 Included Components

• CH0002 Charger Unit

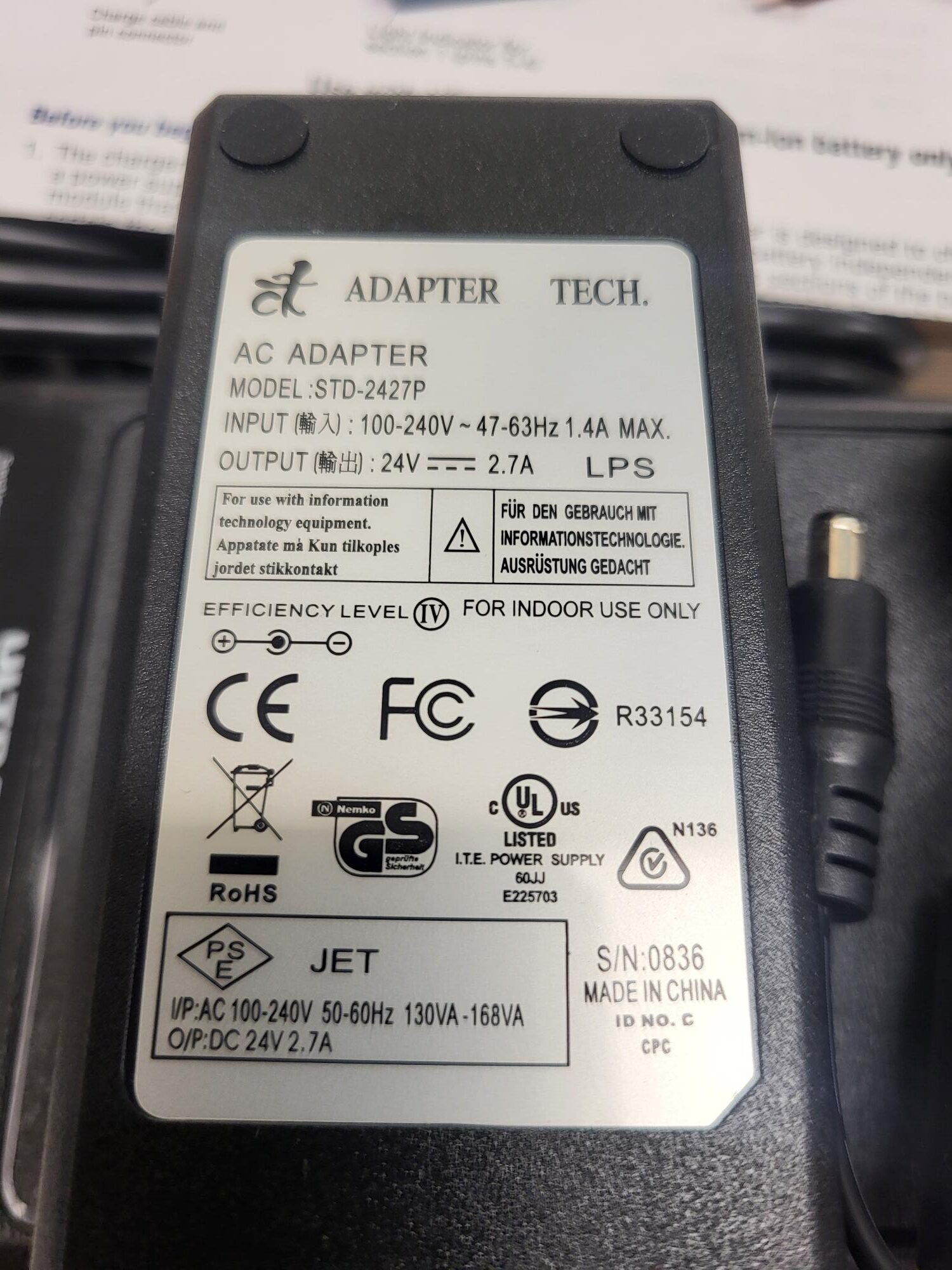

• Universal Power Supply (PS2524)

• North American Line Cord (UL/CSA 3-prong, 6 ft)​

📐 Physical Specifications

• Dimensions: 6.85″ x 4.88″ x 2.12″ (174mm x 124mm x 54mm)

• Weight: Approximately 16.2 oz (460g)

• Material: Black ABS G1SM plastic

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -25°C to 70°C
