Tyler Camera SystemsR44 Side Video Gimbal Mount Framework

🎥 Overview & Specs – Framework only (Camera must be sourced separately)  (NEW)

• Aircraft Compatibility: Designed specifically for the Robinson R44 helicopter, with full FAA, EASA, and Transport Canada approvals.

• Payload Capacity: Can carry up to 100–105 lb (≈45–48 kg) camera systems, covering popular options such as FLIR Ultramedia, Axsys/Cineflex V14, Polytech, Wescam, Over Shot

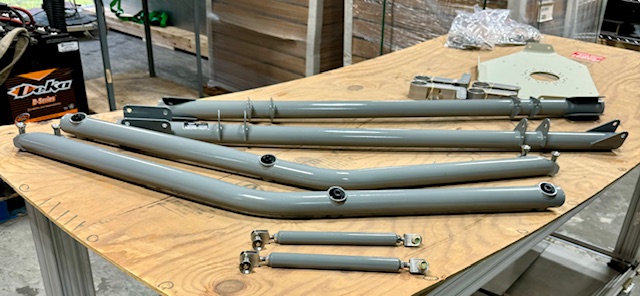

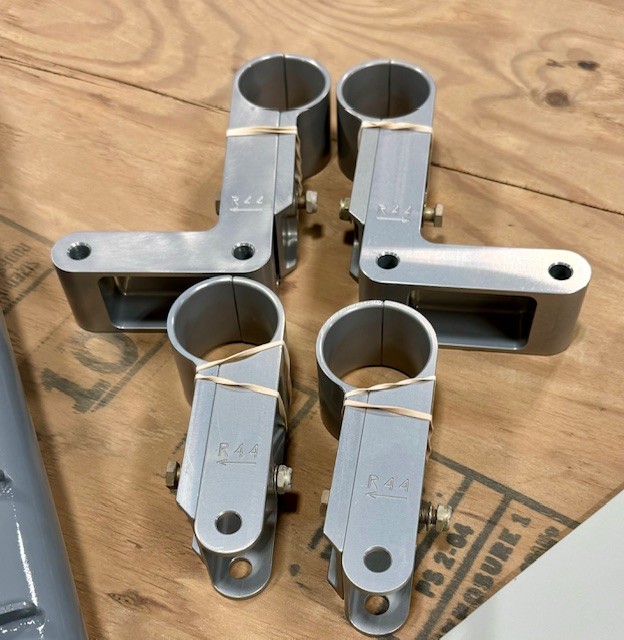

• Construction: Robust framework built from 4130 chromoly steel and 7075-T6 aluminum clamps—engineered for high strength, lightweight, and corrosion resistance

• Mounting:

  • Attaches to the helicopter’s skid gear—no major airframe modifications needed.

  • Installs on either the left or right side without obstructing doors.

  • Installation time is very efficient: approximately 30–60 minutes

  • Does not require counterweights

• Use Cases: Widely used in aerial cinematography—TV, film, surveillance, search & rescue, inspection—thanks to its gyro-stabilized capability and portability .
