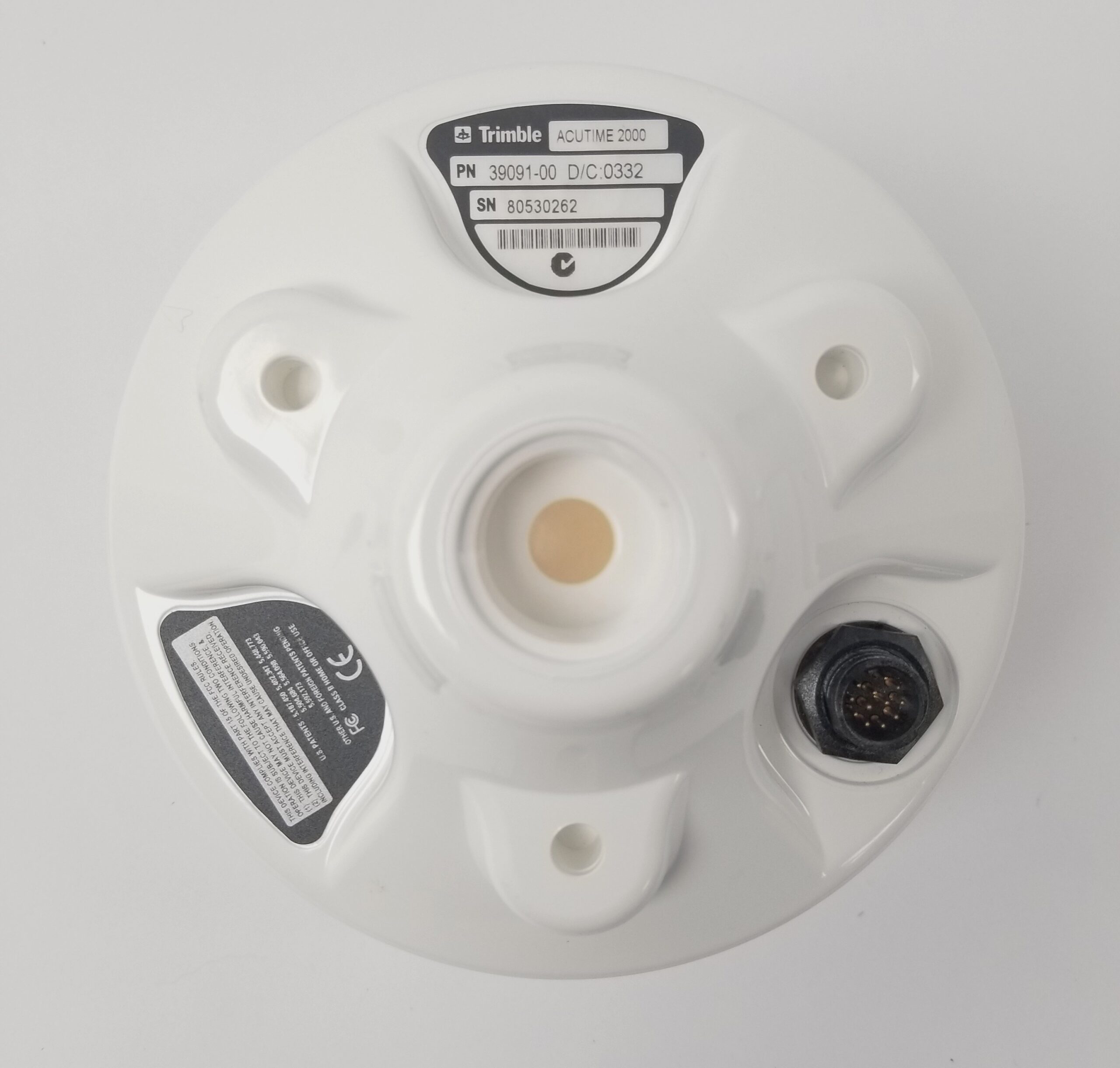

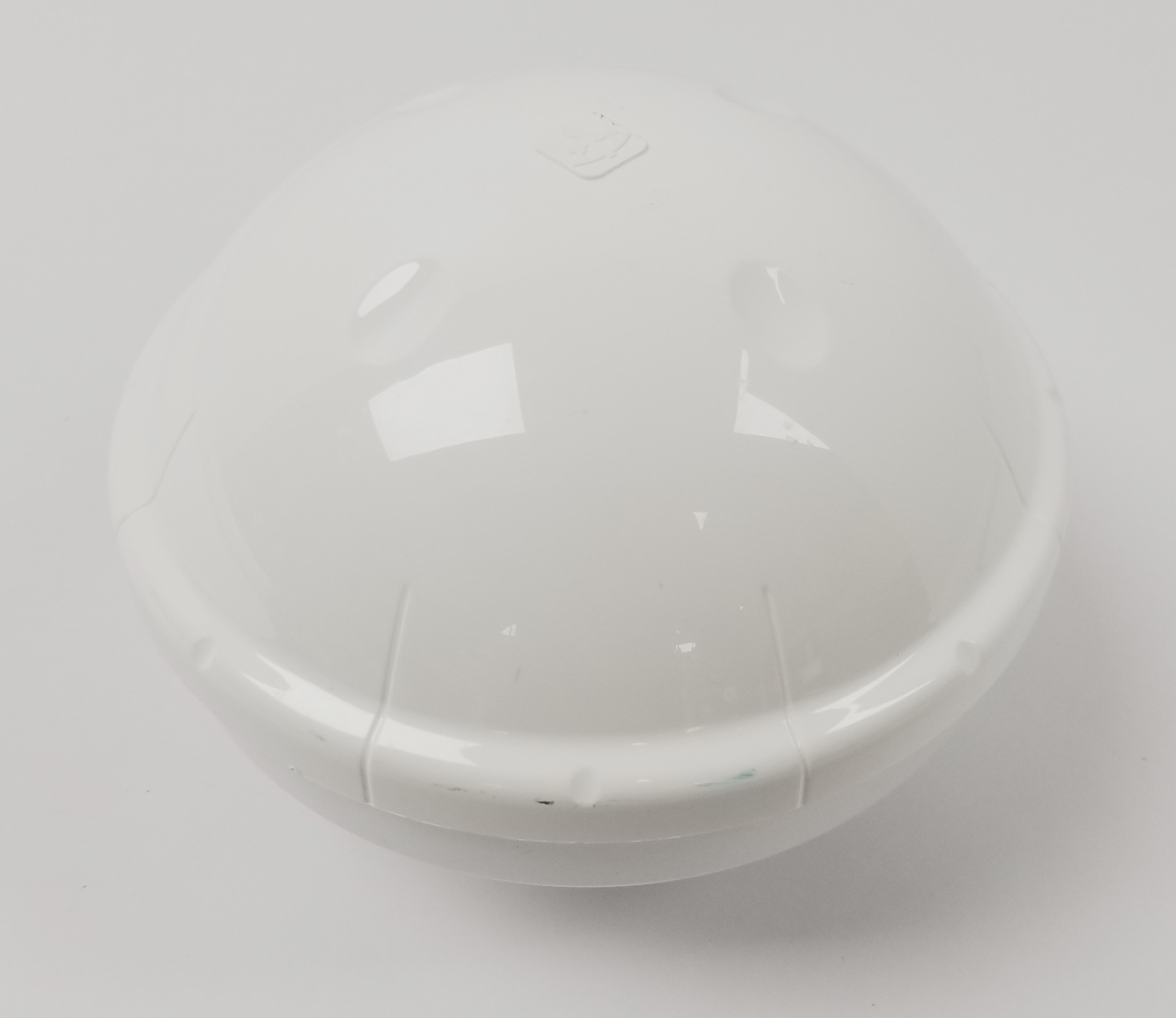

Trimble ACUTIME-2000 39091-00 GPS Smart Antenna

The Trimble ACUTIME-2000 39091-00 GPS Smart Antenna marks the integration of the latest GPS technology into a rugged self-contained unit that enables easy integration into any system.

The Acutime 2000 is a pole mounted GPS receiver and antenna in a single environmentally sealed enclosure. The Acutime 2000 GPS smart antenna design continues Trimble’s line of GPS smart antennas, which have been in production since 1991. The antenna is the perfect solution for precise timing and network synchronization needs, including broadband wireless applications. It provides an extremely cost-effective and independent (within the firewall) timing source for any application, such as fault detection systems and synchronization of wireless networks.

Once power is applied, the Acutime 2000 automatically tracks satellites and surveys its position to within meters. It then switches to overdetermined time mode and generates a pulse-per-second (PPS) output synchronized to UTC within 50 nanoseconds (one sigma), outputting a time tag for each pulse. The Acutime 2000 GPS smart antenna’s T-RAIM (Time-Receiver Autonomous Integrity Monitor) algorithm ensures PPS integrity.

Designed for long-term reliability, the Acutime 2000 GPS smart antenna is corrosion-resistant, waterproof and has a rounded top that facilitates run-off from the elements.
