Tri-M HE104 Power Supply

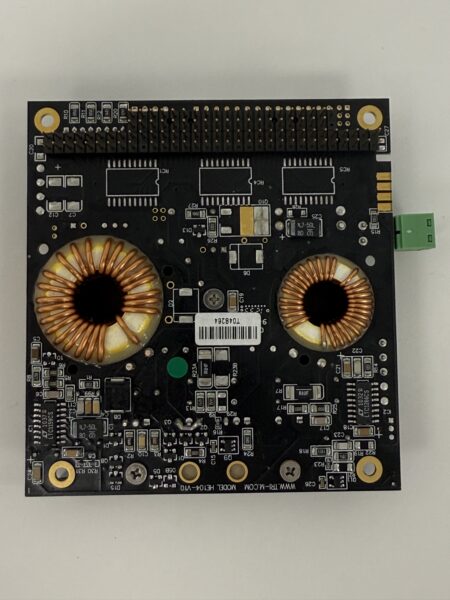

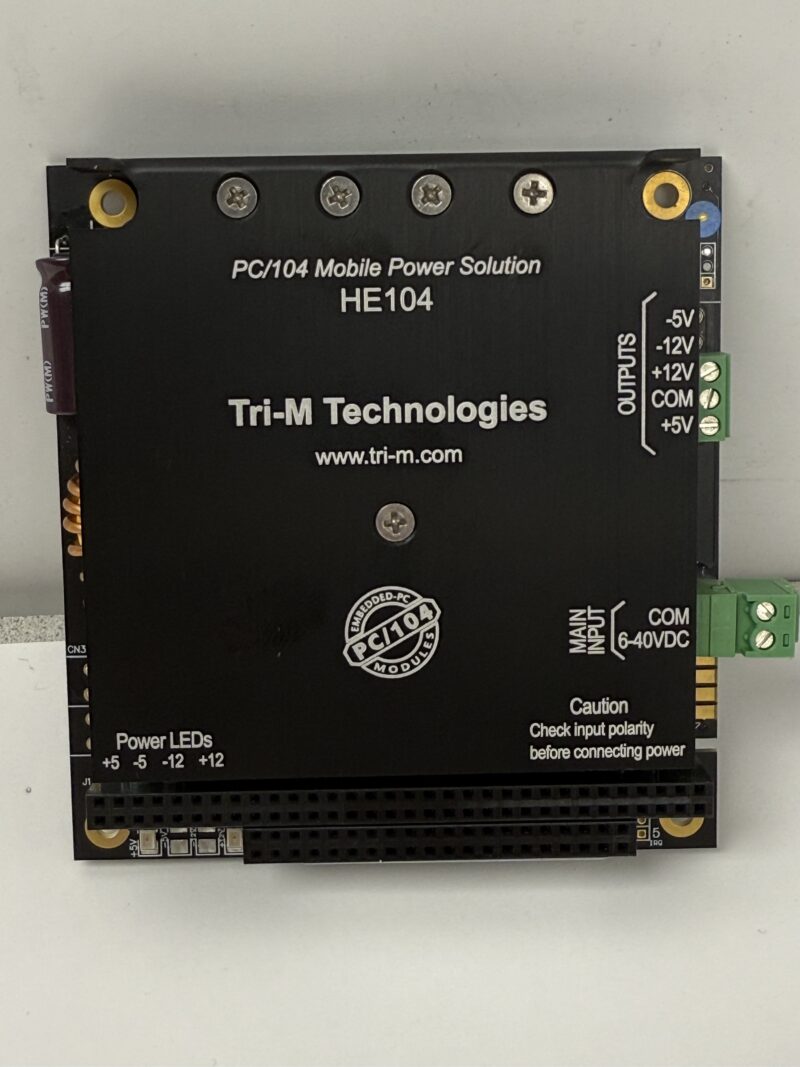

Tri-M Engineering HE104 High-Efficiency PC/104 Power Supply

The Tri-M HE104 is a rugged, high-efficiency DC-DC converter designed for embedded and vehicular applications requiring reliable power in harsh environments. With a wide input voltage range and multiple output options, it’s ideal for systems where low noise and high performance are critical.

Key Features:

• Manufacturer: Tri-M Engineering

• Model: HE104

• Type: PC/104 DC-DC Power Supply

• Input Voltage Range: 6VDC to 40VDC

• Output Power: Up to 60W

• Output Voltages: +5V @ 12A, +12V @ 2.5A, optional -12V and -5V

• Efficiency: Over 90%

• Operating Temperature: -40°C to +85°C

• Form Factor: PC/104 compliant

• Features:

  • Synchronous buck and boost regulators for low ripple noise (<20mV)

  • Heavy-duty transient suppressors (5000W)

  • Reverse polarity protection

  • Opto-isolated remote On/Off control

  • Conformal coating and epoxy for environmental protection

Applications:

• Vehicular and airborne systems

• Industrial automation

• Embedded computing

• Military and aerospace applications

• Battery-powered systems

SOLD AS IS

UNTESTED

NO ACCESSORIES INCLUDED
