TOA A-906MK2 Professional Public Address Amplifier
$75.00
SKU: 83538
Professional Public Address Amplifier
1 in stock

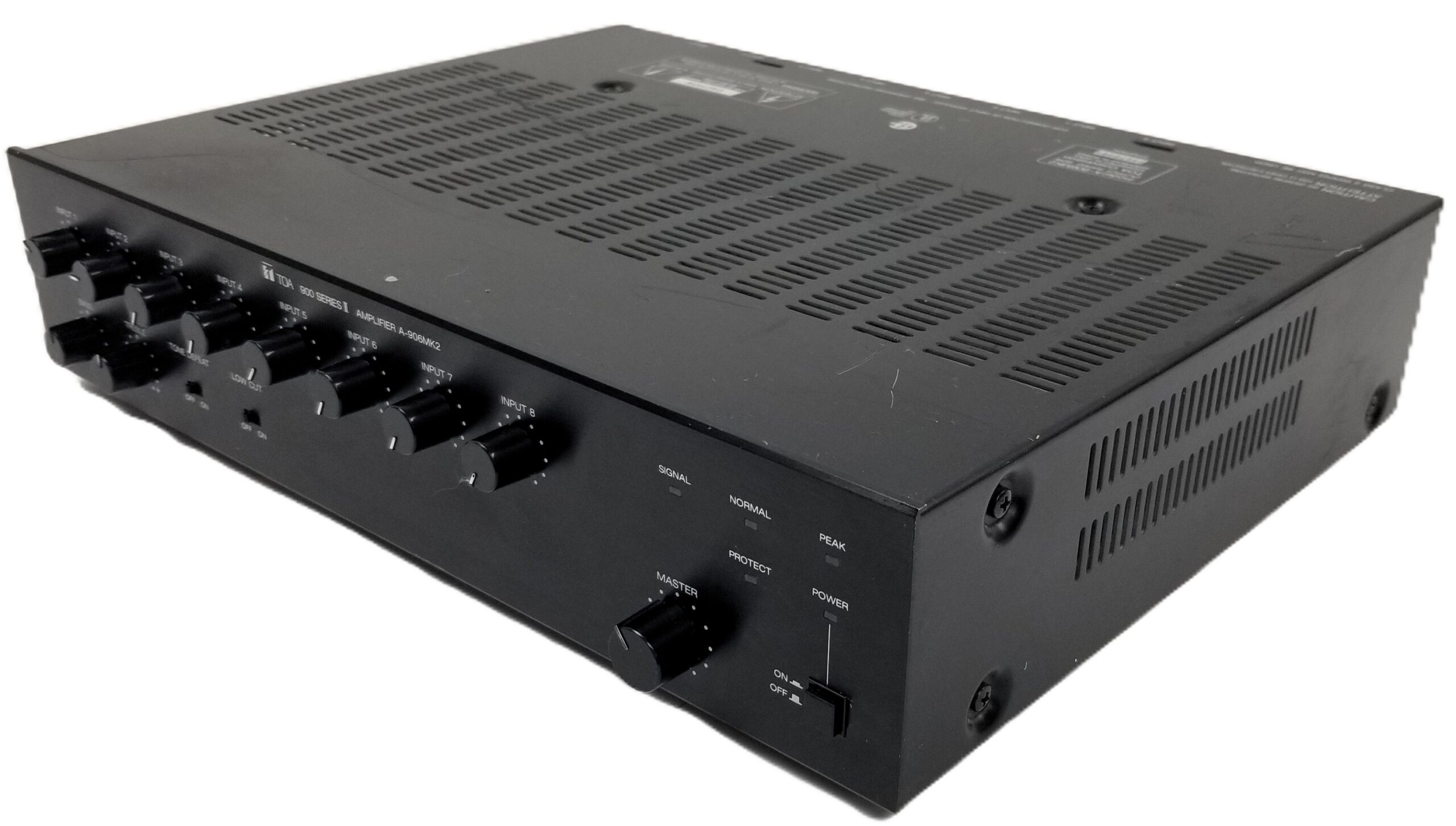

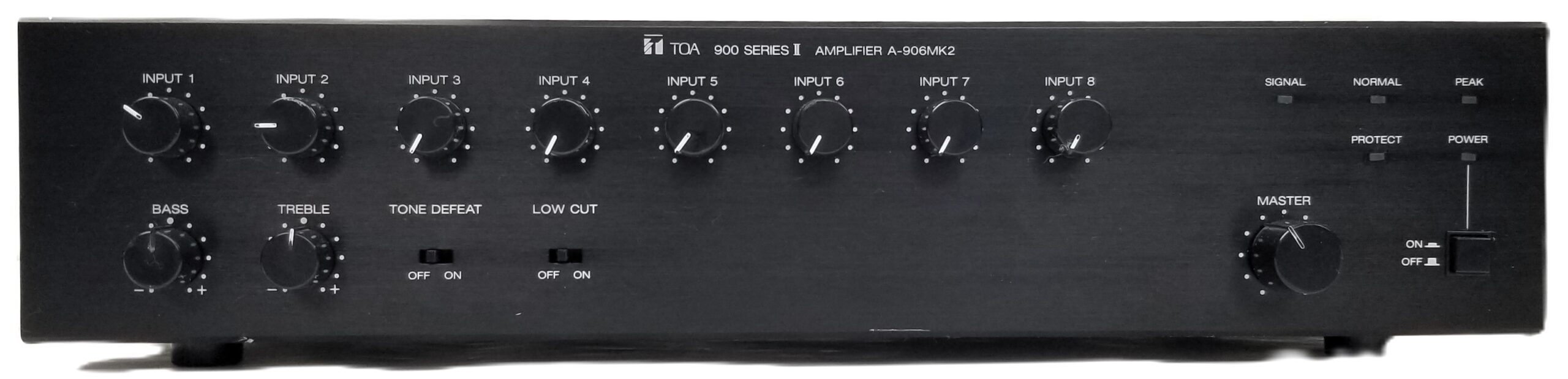

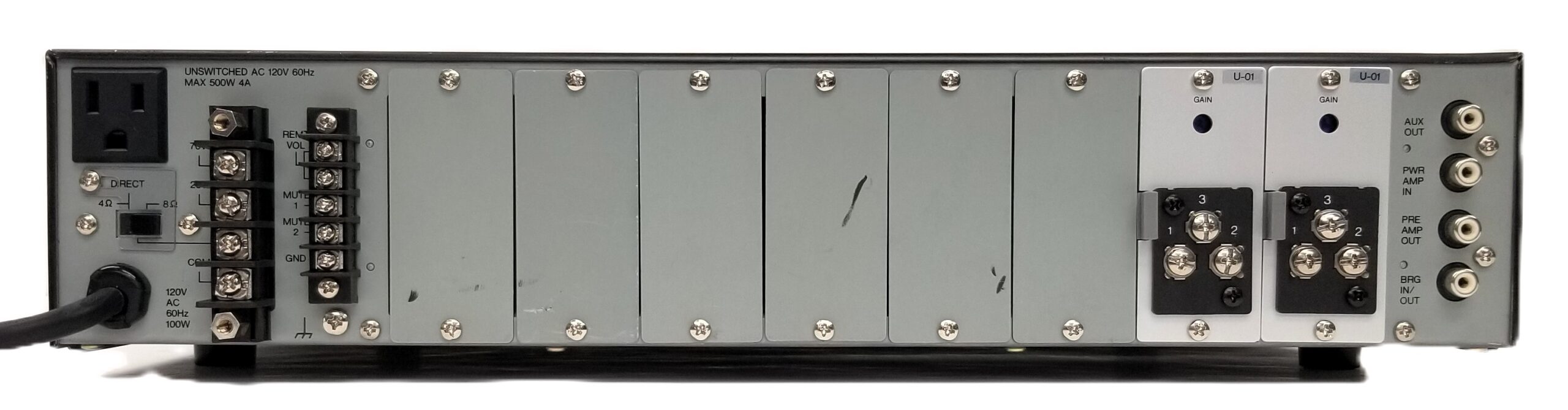

CompareTOA A-906MK2 Professional Public Address Amplifier. Good condition with some scuffs on top of cover. Unit has 2 U-01 modules installed (input positions 1&2) and is capable of 6 additional input modules (8 total). Unit checked O.K. No manual, cables or other accessories. Purchaser responsible for system compatibility, proper installation, set-up and use. As shown.
Type: 8-channel mixer power amplifier
Power Source: AC mains, 120 V, 60 Hz
Power Consumption: 100 W
Output Power: 60 W RMS
Power Bandwidth: (D) 20 to 20,000 Hz, 0.5% THD, (T) 50 to 20,000 Hz, 0.5% THD
Frequency Response: (D) 20 to 20,000 Hz, ±1 dB (T) 20 to 15,000 Hz, ±1 dB, (T) 20 to 20,000 Hz, +1 dB, -3 dB
Total Harmonic Distortion: 0.02% at 1 kHz, rated output
Input: Eight Input Ports, each port accepts any compatible input module, One Bridging Input/Output
Input Sensitivity/Impedance: Input Port #1 to #8 : 100 mV/10 kΩ
Bridging Input/Output: 100 mV/3.3 kΩ
Preamp OUT / Power Amp IN: 1000 mV into 600 Ω/1000 mV, 10 kΩ
Outputs: (T)=Transformer, (D)=Direct
Main (T): 8 Ω, 25 and 70 volts, balanced, Main (D) : 4 Ω, unbalanced
Aux : 10 kΩ, 1 V
Output Regulation: (1kHz)
(D): Less than 0.5 dB, no load to full load
(T): Less than 1.0 dB, no load to full load
(T): Less than 1.0 dB, no load to full load
Signal to Noise Ratio: Master volume min : 90 dB, Master volume max : 77 dB
Power amplifier only: 105 dB
Tone Control: Bass : ±10 dB at 100 Hz, Treble : ±10 dB at 10 kHz
Controls: 8 Input gain control 1 Master gain control, 1 Bass control, 1 Treble control, 1 Power ON/OFF switch, 1 Tone defeat switch, 1 Low-Cut switch (60 Hz, 6 dB/octave)
Indicator: 1 Power LED, 1 Protect LED, 1 Signal LED, 1 Normal LED, 1 Peak LED
Protection: Self-protection, with AC fuse (inside)
Connector: Input No.1 to No.8 : Card-edge connector, Bridging, Mixer preamp. output, Power amp. input, Aux output : RCA phono jack
Output : Screw-terminal strip, Mute, Remote VR : Screw-terminal strip
AC outlet: 3-pin grounding type
AC power cord/plug: SJT, 3-prong type
Operating Temperature: -10 °C to +60°C (12 °F to 140 °F)
Finish: Black
Dimensions: 420(16.54″) x 99.1(3.90″) x 358(14.09″) mm
Weight: 9.6 kg (21.16 lb.)
Optional Accessories: Rack mounting bracket (MB-25B)
| Weight | 23 lbs |
|---|---|
| Dimensions | 24 × 16 × 12 in |
