Product Description

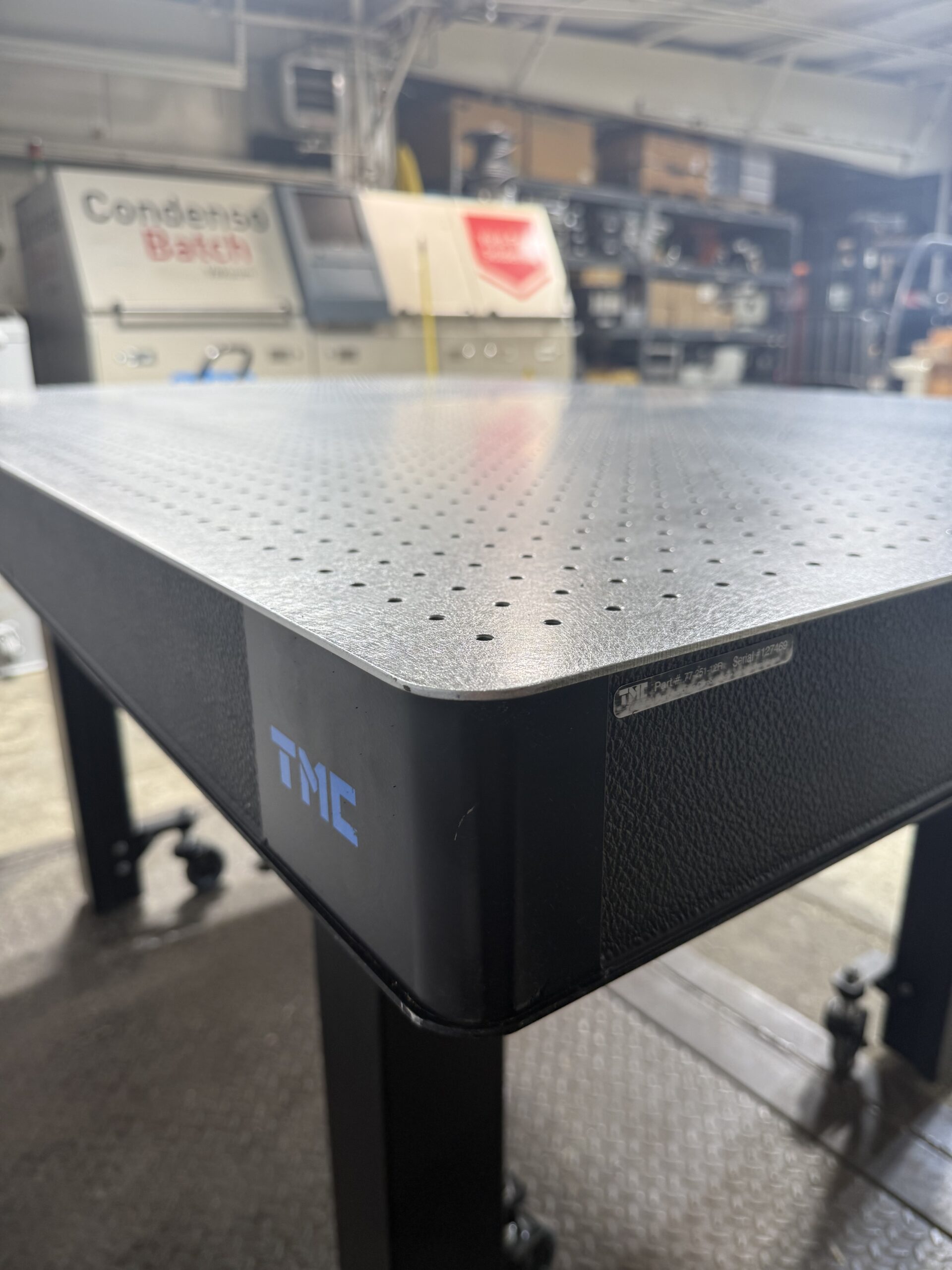

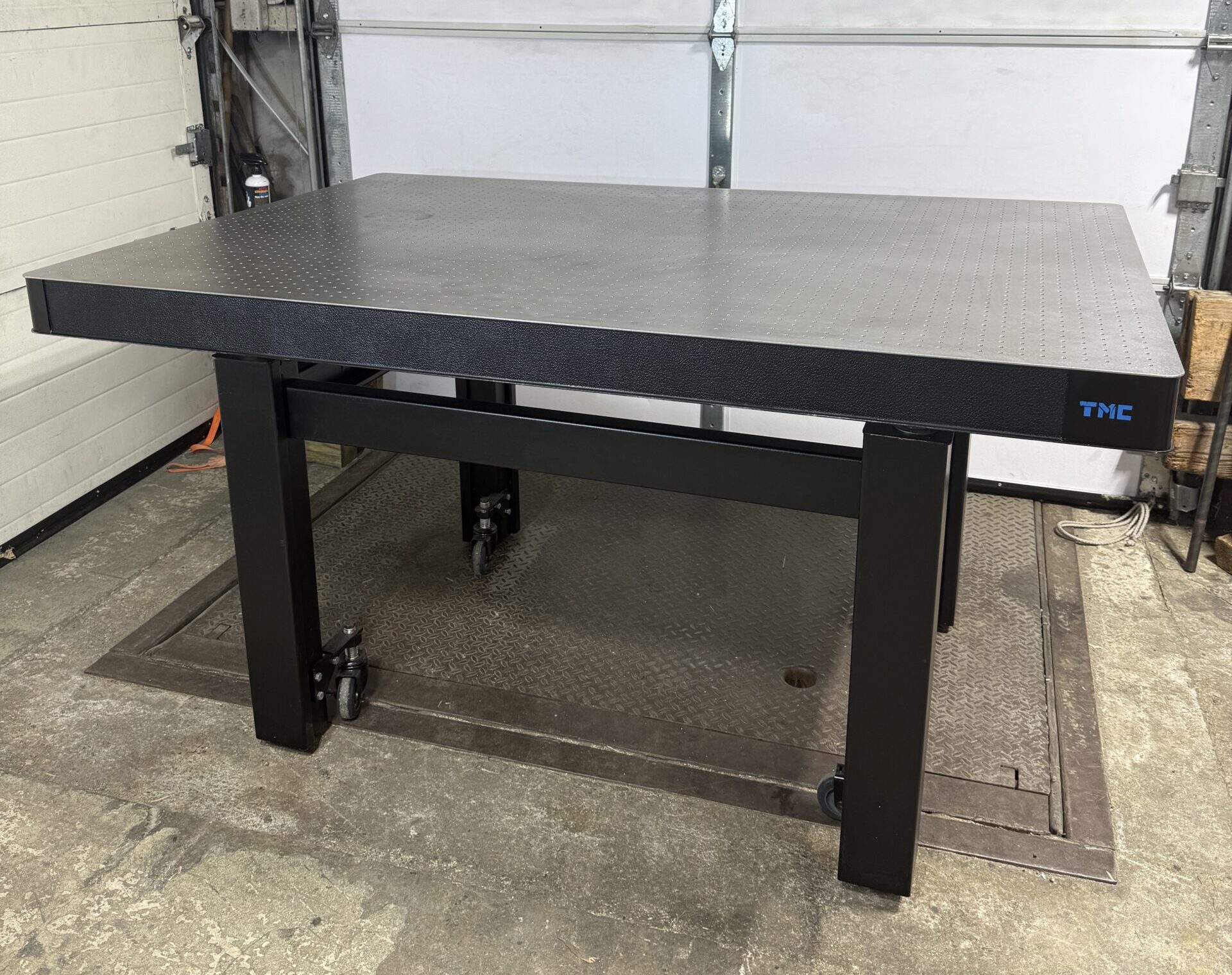

TMC 71″ x 47″ x 4″ CleanTop Research Grade Optical Table with 32″ Tall Support Base – Precision Vibration-Isolated Workstation
This used TMC (Technical Manufacturing Corporation) optical table system represents the gold standard in precision vibration control for demanding research applications. The 71″ x 47″ x 4″ all-steel honeycomb top delivers exceptional rigidity and damping, while the 32″ tall base provides robust support at an ergonomic working height.
TMC is the world leader in optical table technology, and their CleanTop® Research Grade tables are specified for the most demanding applications including interferometry, holography, ultra-fast lasers, and environments with severe floor vibration . This table combines the highest core density and smallest honeycomb cell size available, ensuring unmatched structural performance .
Key Specifications
| Specification | Details |
|---|---|

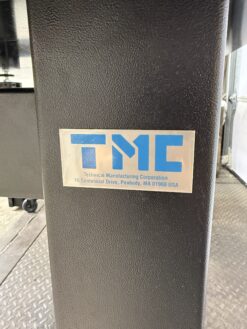

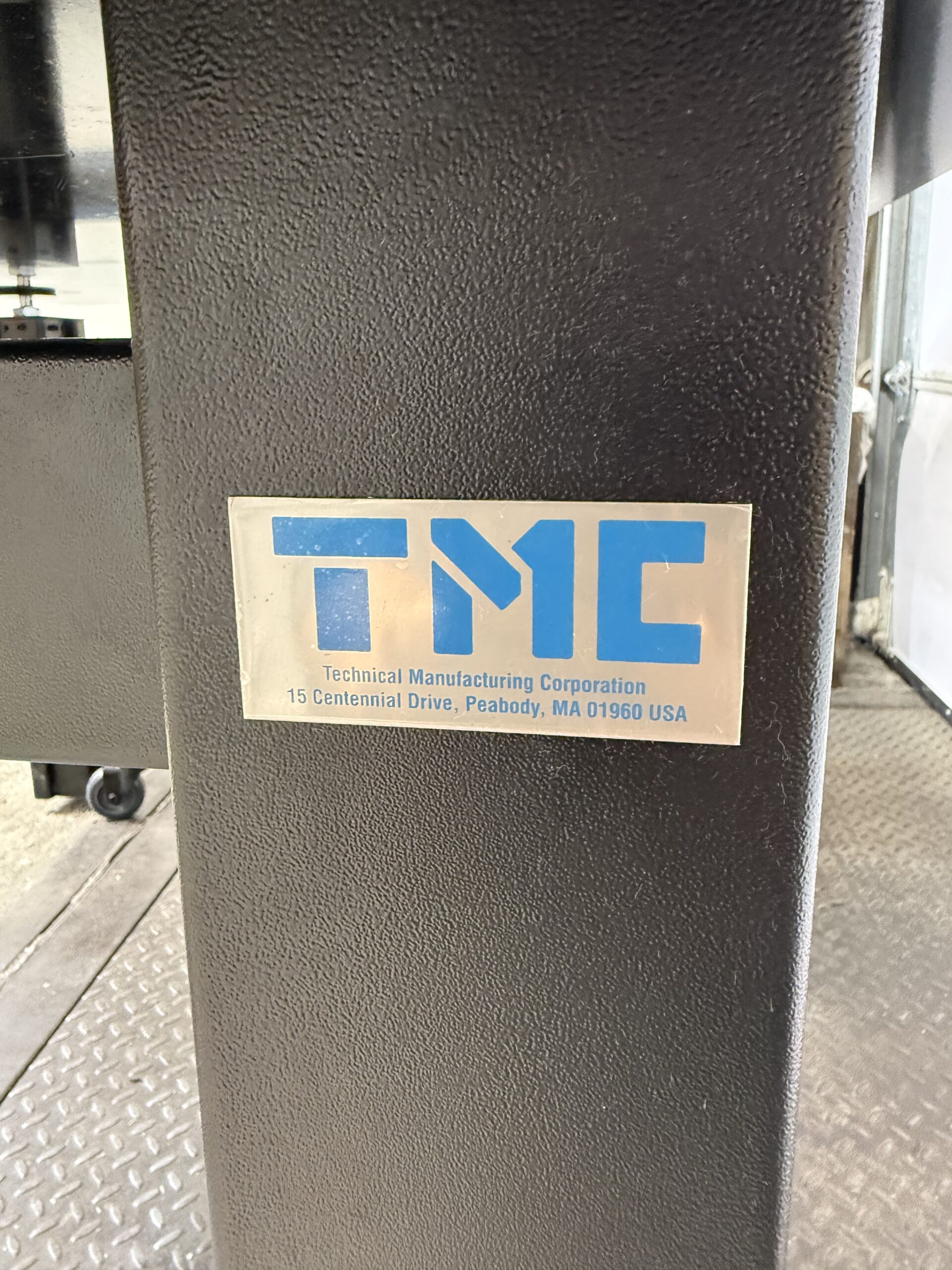

| Manufacturer | Technical Manufacturing Corporation (TMC) |
| Series | CleanTop® Performance Series |
| Grade | Research Grade 784 Series (highest damping level) |
| Table Dimensions | 71″ (180 cm) x 47″ (120 cm) |
| Table Thickness | 4 inches (100 mm) |
| Top Skin | 3/16 in. (5 mm) 400 series ferromagnetic stainless steel |
| Core | Steel honeycomb, closed cell, 0.01 in. foil |
| Core Cell Size | <0.5 in² (smallest in industry) |
| Core Shear Modulus | 275,000 PSI |
| Core Density | 13.3 lb/ft³ |
| Flatness | ±0.005 in. over entire table surface, guaranteed |
| Mounting Holes | 1/4-20 tapped holes on 1-inch staggered centers |
| Hole Sealing | Individual CleanTop® nylon cups (spill-proof design) |

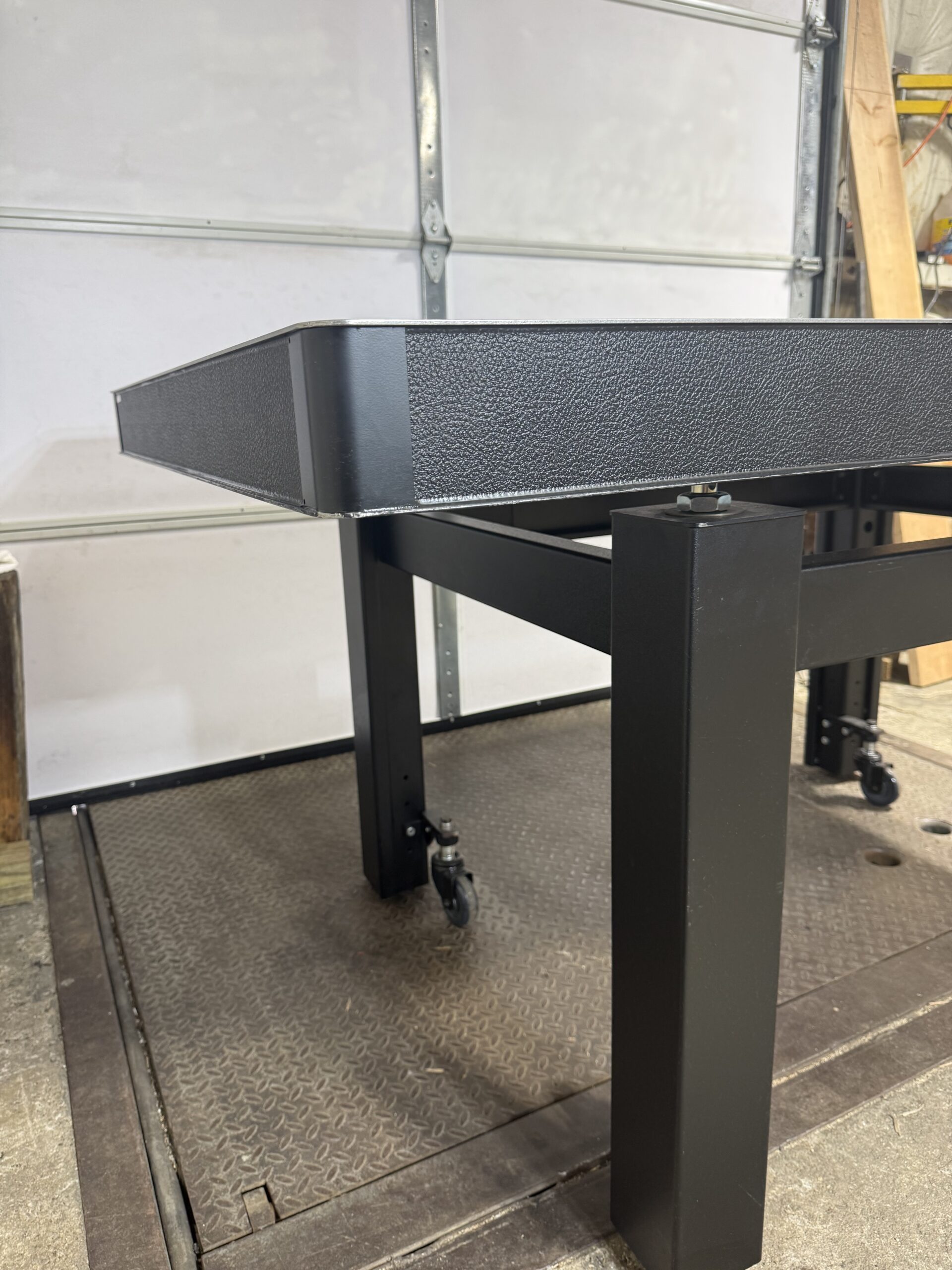

| Sidewalls | Damped formed steel channel covered with vinyl |

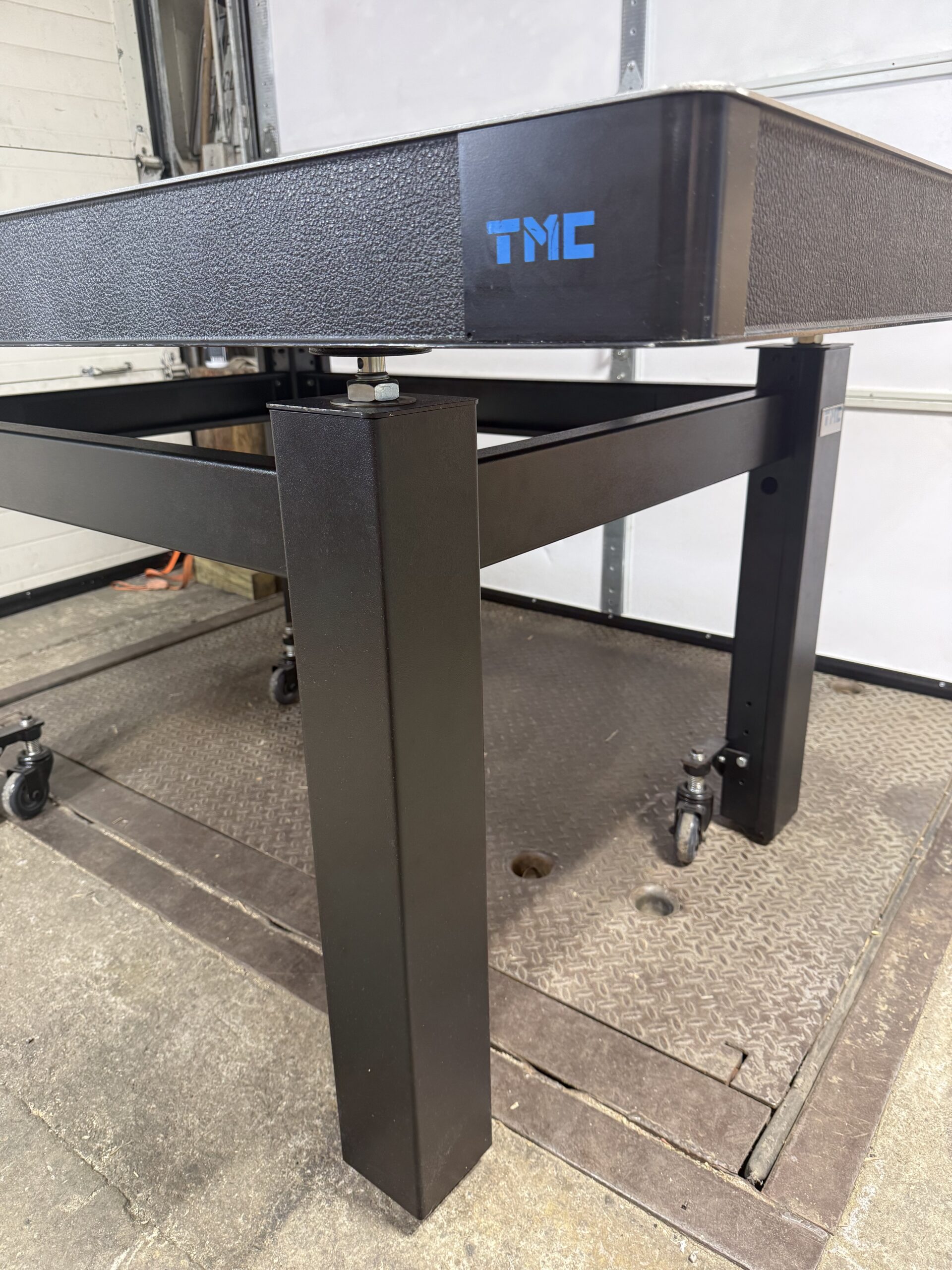

| Base Height | 32 inches (support system) |
| Construction | All-steel, no particle board or plastic layers |
The CleanTop® Advantage
TMC’s patented CleanTop® design offers several critical benefits that set it apart from competitors :
All-Steel Construction
-
No particle board sidewalls or plastic layers between the top skin and honeycomb core
-
Assures maximum strength and structural integrity
-
All components share the same coefficient of thermal expansion for optimal thermal stability
Smallest Core Cell Size, Highest Core Density
-
Average cell size of 0.5 in² is at least 50% smaller than competing designs
-
Achieved through cylindrical CleanTop cups (not conical like plastic layer designs)
-
Ensures highest stiffness and greatest core-to-skin bonding contact area
Superior Spill Protection
-
Individual CleanTop cups are epoxy-bonded under each tapped hole
-
Liquid spills are contained on the surface and cannot reach the honeycomb core
-
The core remains completely clean and dry with no residual thread-cutting oils to out-gas
Steel-to-Steel Bonding
-
Only two bonding layers: top skin to core and core to bottom skin
-
Imitations require a third bonding layer which weakens the structure
Structural Damping
TMC’s Research Grade tables utilize advanced broadband dry damping technology, which is superior to “tuned” damping methods used by competitors :
-
Broadband Damping: Dissipates energy across the entire frequency range of interest, addressing primary, secondary, and higher resonant frequencies
-
No Oil Dampers: Eliminates risk of oil leakage and performance changes over time
-
Performance Guarantee: TMC guarantees maximum compliance levels (measured in micro-inches per pound) for their tables, with Research Grade providing the highest damping performance available
Applications
This Research Grade optical table is recommended for the most demanding applications :
-
Interferometry – Michelson, Twyman-Green, and Fizeau interferometers
-
Holography – requiring extreme stability for fringe stability
-
Ultra-Fast Lasers – Ti:Sapphire and fiber laser systems
-
Quantum Optics – single-photon experiments and atomic physics
-
Confocal Microscopy – high-resolution imaging requiring sub-nanometer stability
-
Spectroscopy – Raman, fluorescence, and absorption measurements
-
Nanotechnology – probe-based and optical characterization
Condition
EXCELLENT – WELL-MAINTAINED

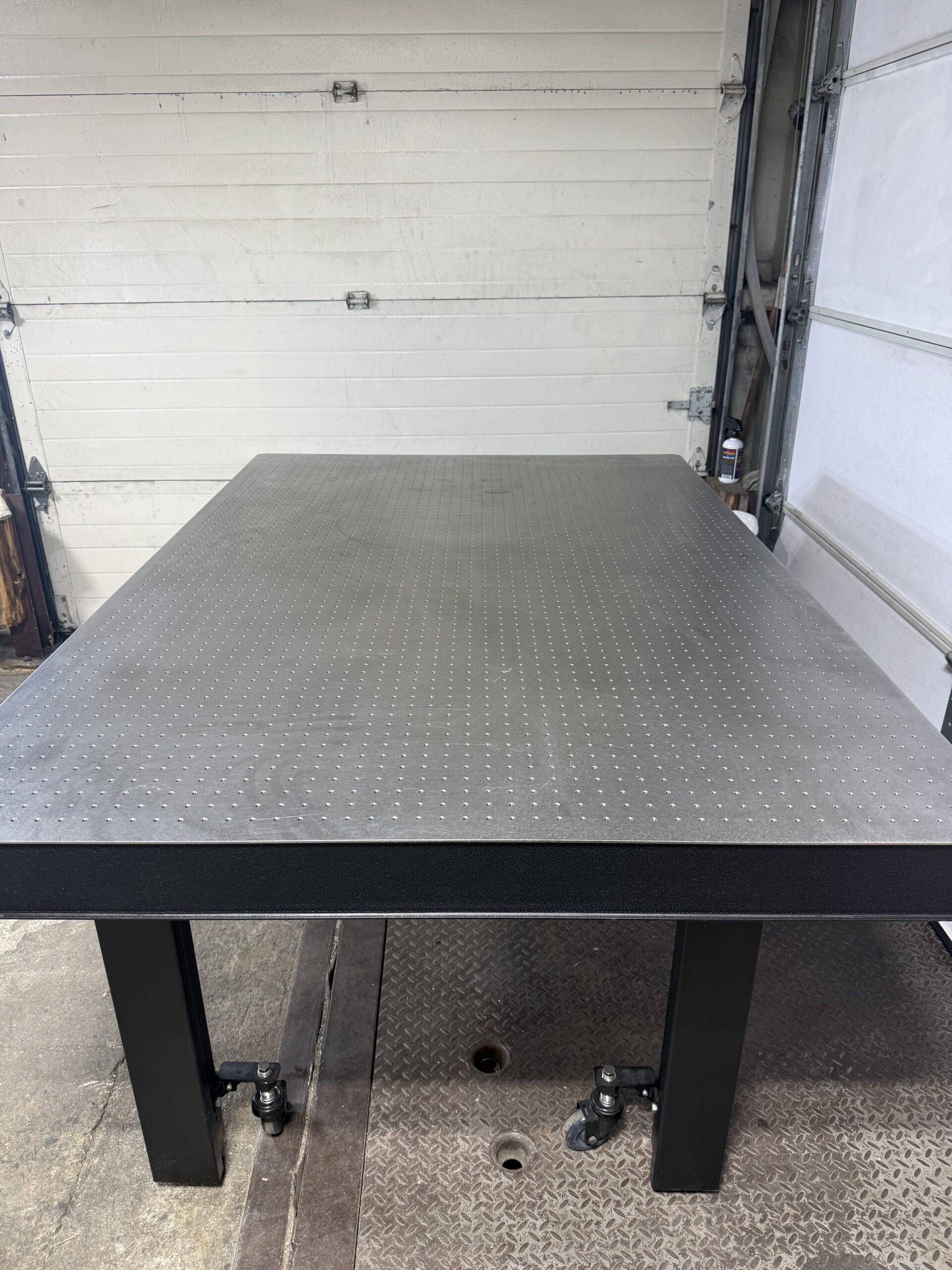

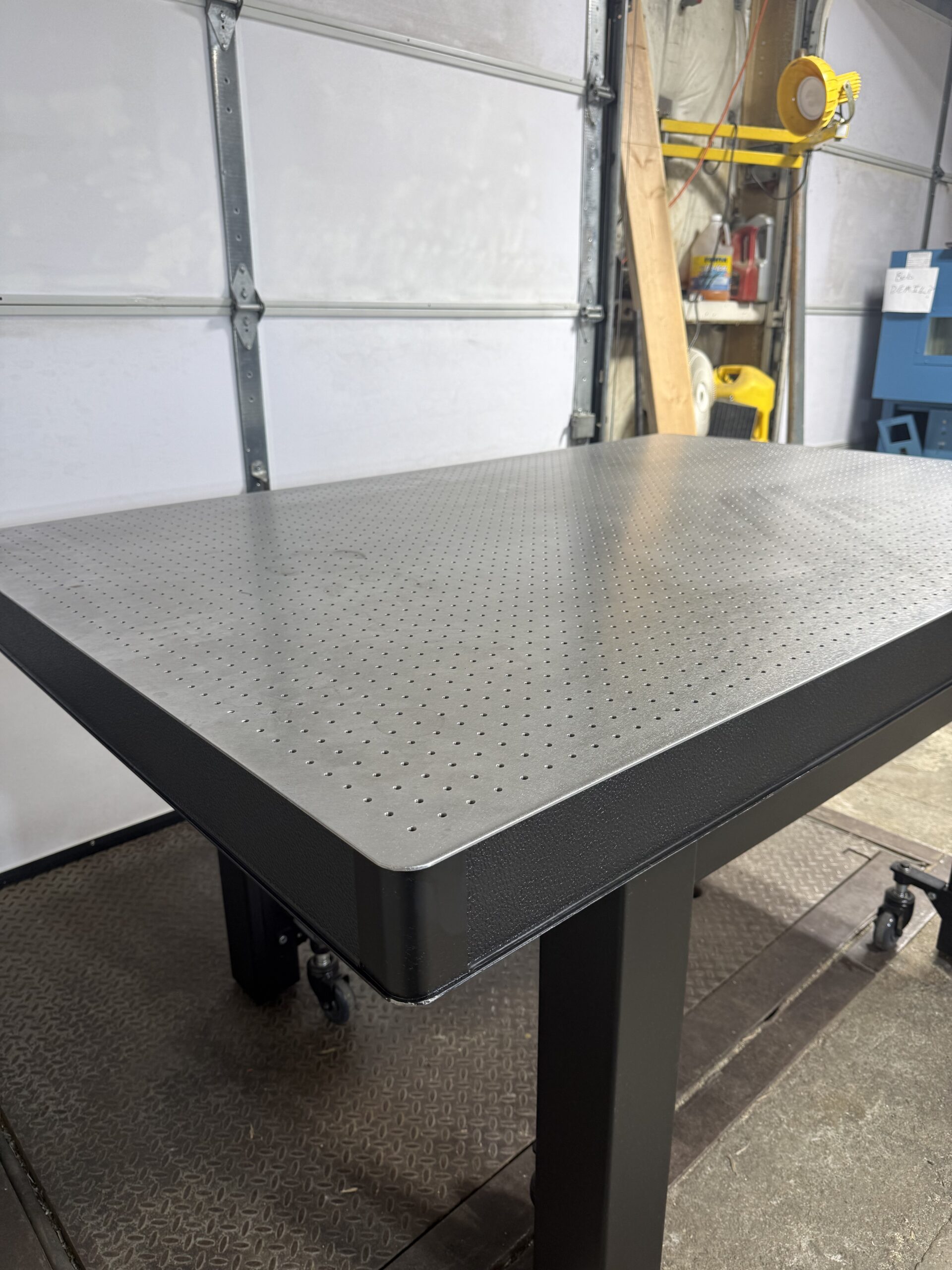

TOP SURFACE: clean, minimal cosmetic scratches, minimal rust
TAPPED HOLES: Clean, no damage
SIDEWALLS: Intact, no dents

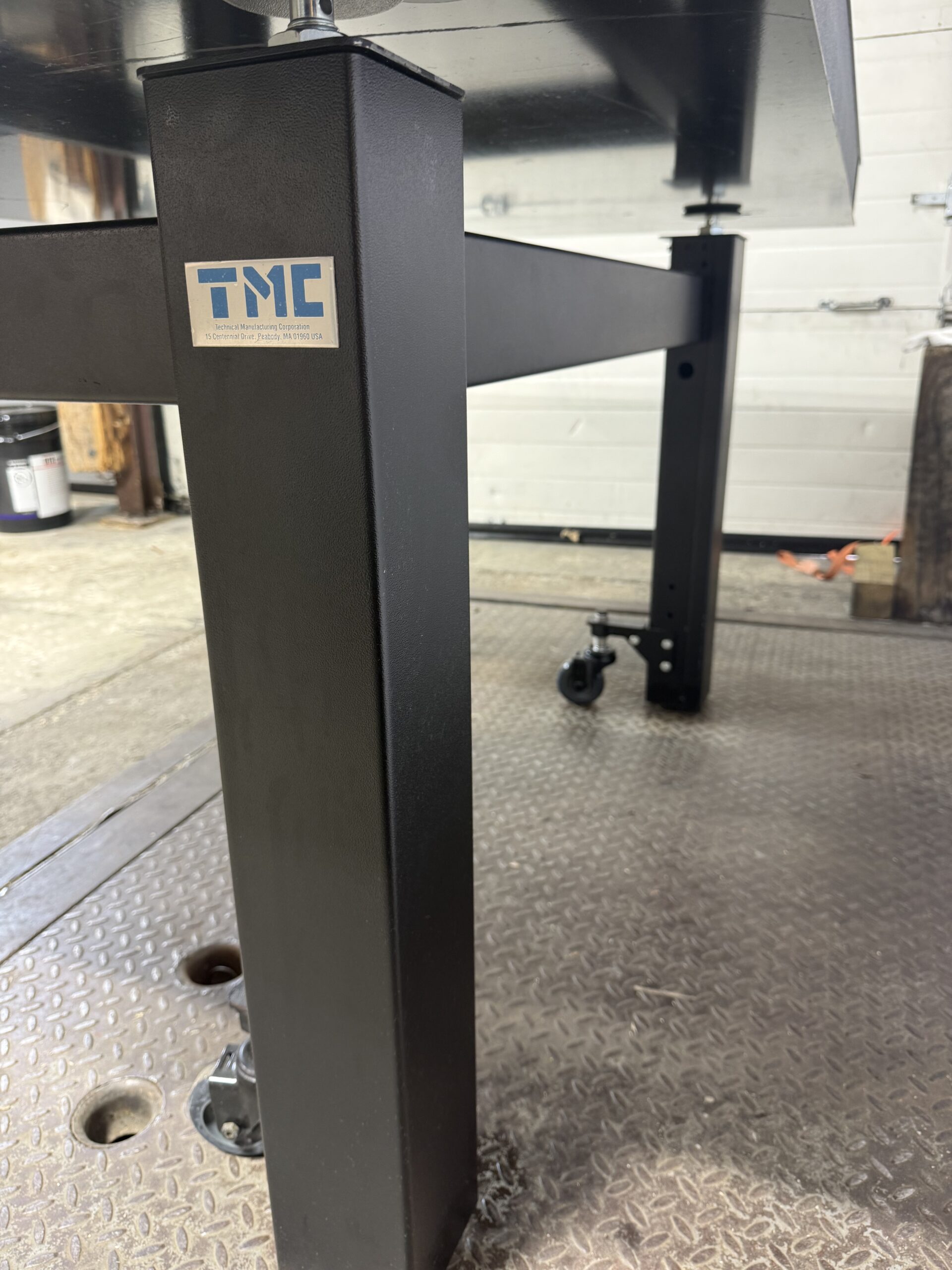

BASE: Stable, level
CLEANTOP CUPS: Intact, fully functional
⚠ INSTALLATION NOTE: This is a heavy system requiring proper floor support. The 32″ base height provides a standard working surface when combined with the 4″ table top (total working height ~36″). Ensure adequate floor loading capacity before installation.
