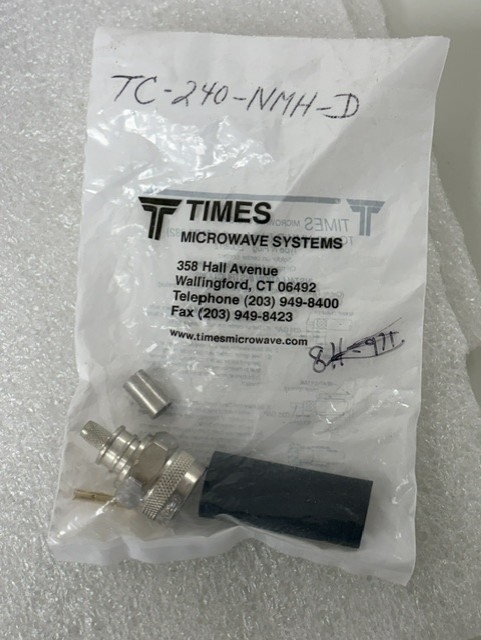

The Times Microwave Systems TC-240-NMH-D is a 50-ohm Type N male (plug) coaxial RF connector designed for use with LMR-240, TCOM-240, and FBT-240 series coaxial cables. It is commonly used in RF communications, wireless infrastructure, antenna systems, test equipment, and microwave applications.
Key Specifications
| Specification | Value |
|---|---|
| Manufacturer | Times Microwave Systems |
| Part Number | TC-240-NMH-D |
| Connector Type | Type N Male Plug |
| Impedance | 50 Ohms |
| Cable Compatibility | LMR-240, TCOM-240, FBT-240 |
| Center Contact Attachment | Solder |
| Shield Attachment | Crimp |
| Maximum Frequency | 6 GHz |
| Coupling Style | Threaded |
| Contact Plating | Gold |
| Body Finish | White Bronze / Alballoy |
Features
- Designed for low-loss RF and microwave cable assemblies.
- Weather-resistant Type N interface suitable for indoor or outdoor installations.
- Solder center pin provides reliable electrical performance.
- Crimp-on outer conductor termination for secure mechanical attachment.
- Compatible with commercial, military, wireless, and test applications.
Typical Applications
- Cellular and wireless communications
- RF test systems
- Antenna feed lines
- Microwave communication links
- Laboratory and instrumentation setups
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 3 × 2 in |
