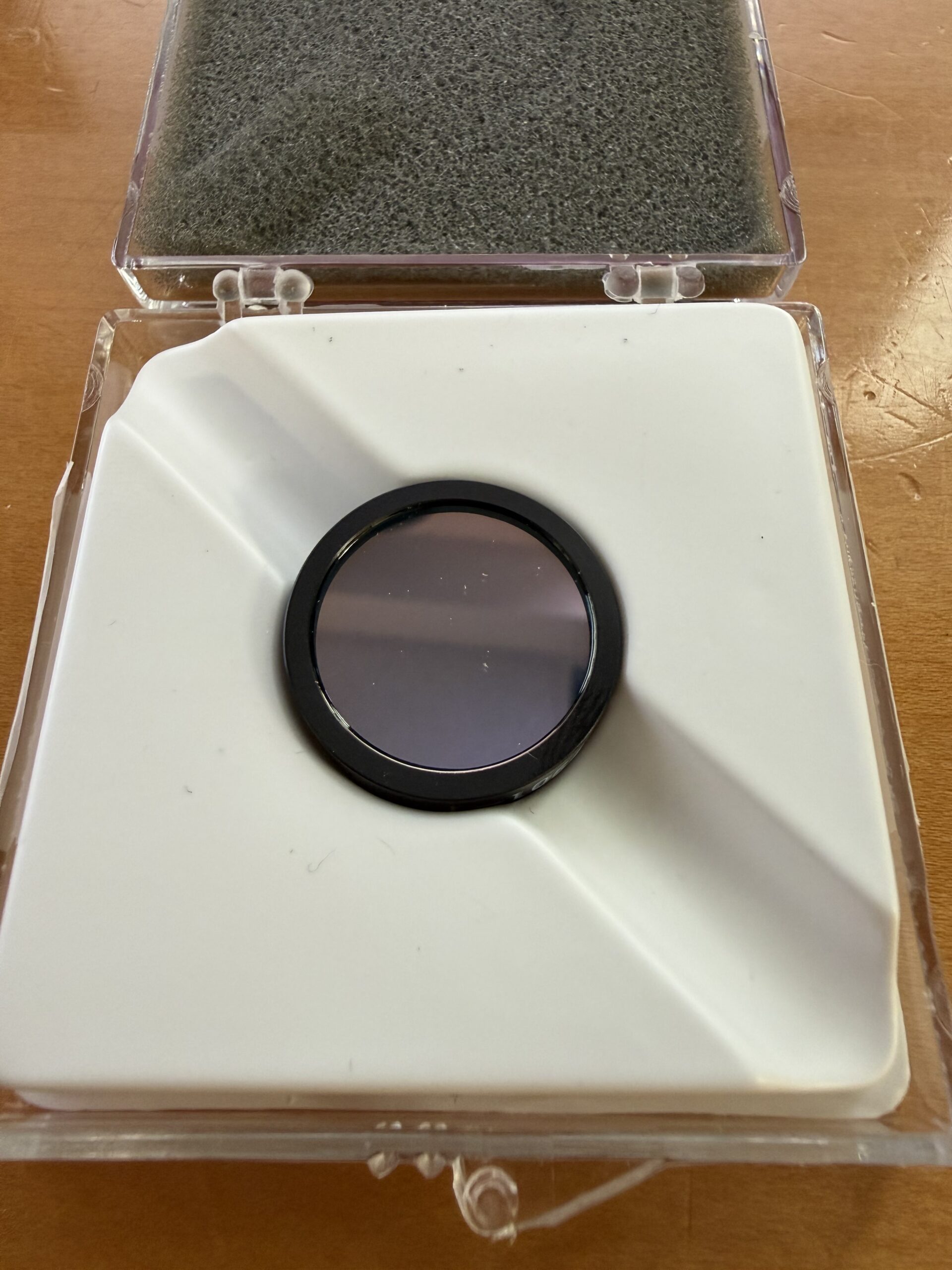

Thorlabs FL1064-10 bandpass filter

Product Description

Thorlabs FL1064-10 Bandpass Filter – 1064 nm Center Wavelength, 10 nm FWHM

A precision hard-coated dielectric bandpass filter from Thorlabs, designed for spectral filtering at the common 1064 nm laser wavelength. With a 10 nm full-width half-maximum (FWHM) bandwidth and high out-of-band rejection, this filter is ideal for laser line cleanup, fluorescence isolation, and noise reduction in imaging and detection systems.

🔍 Key Specifications:

• Center Wavelength (CWL): 1064 nm

• Bandwidth (FWHM): 10 nm

• Peak Transmission: >90% (typical)

• Blocking Range: UV to IR (OD >4 outside passband)

• Diameter: 1″ (25.4 mm)

• Thickness: 3.5 mm (typical)

• Mount: C-mount compatible (threaded retaining ring not included)

• Coating: Hard dielectric, environmental stable

• Substrate: Optical glass (likely N-BK7 or equivalent)

⚙️ Applications:

• Laser Systems: Cleanup filter for Nd:YAG, fiber, or DPSS lasers at 1064 nm

• Fluorescence & Spectroscopy: Isolate emission or excitation bands in NIR experiments

• Imaging & Detection: Block unwanted light in scientific cameras or photodetectors

• Telecommunications: WDM channel selection or noise filtering at 1064 nm

• R&D & Prototyping: Versatile spectral filtering for optical bench setups
