Thorlabs F220APC-532 fiber collimator

Product Description

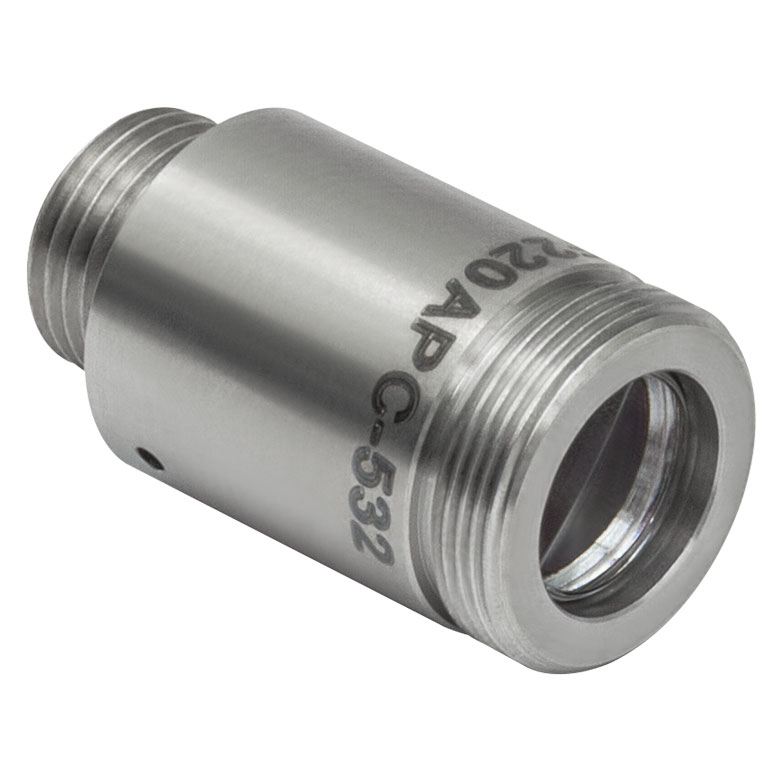

Thorlabs F220APC-532 Fiber Collimator (New)

This precision fiber collimator is optimized for 532 nm laser light, converting the output of a single-mode fiber into a free-space collimated beam or vice versa, ideal for optical system integration and laser delivery.

Key Specifications:

• Wavelength: 532 nm (optimized)

• Connector: FC/APC (angled physical contact)

• Beam Diameter: 2.20 mm (1/e²)

• Working Distance: 16 mm

• Numerical Aperture: 0.12 (typical for SMF-28 fiber)

• Body Diameter: 1.03″ (SM1 threaded)

Includes:

• (1) F220APC-532 fiber collimator

• (2) Threaded protective caps

• Thorlabs specification sheet

Applications:

• Free-space laser beam delivery

• Interferometry and metrology setups

• Optical system prototyping

• Laser-to-fiber coupling systems
