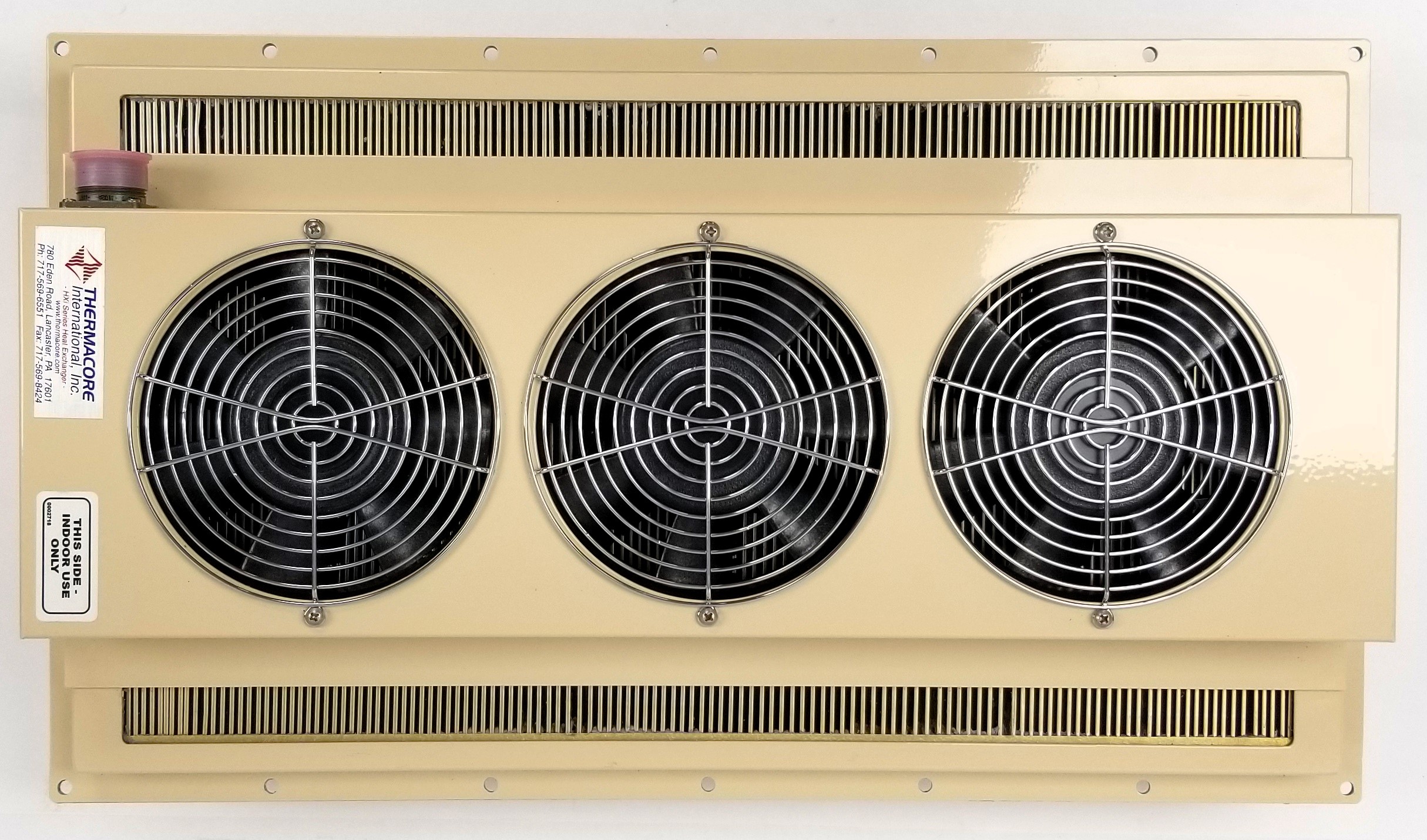

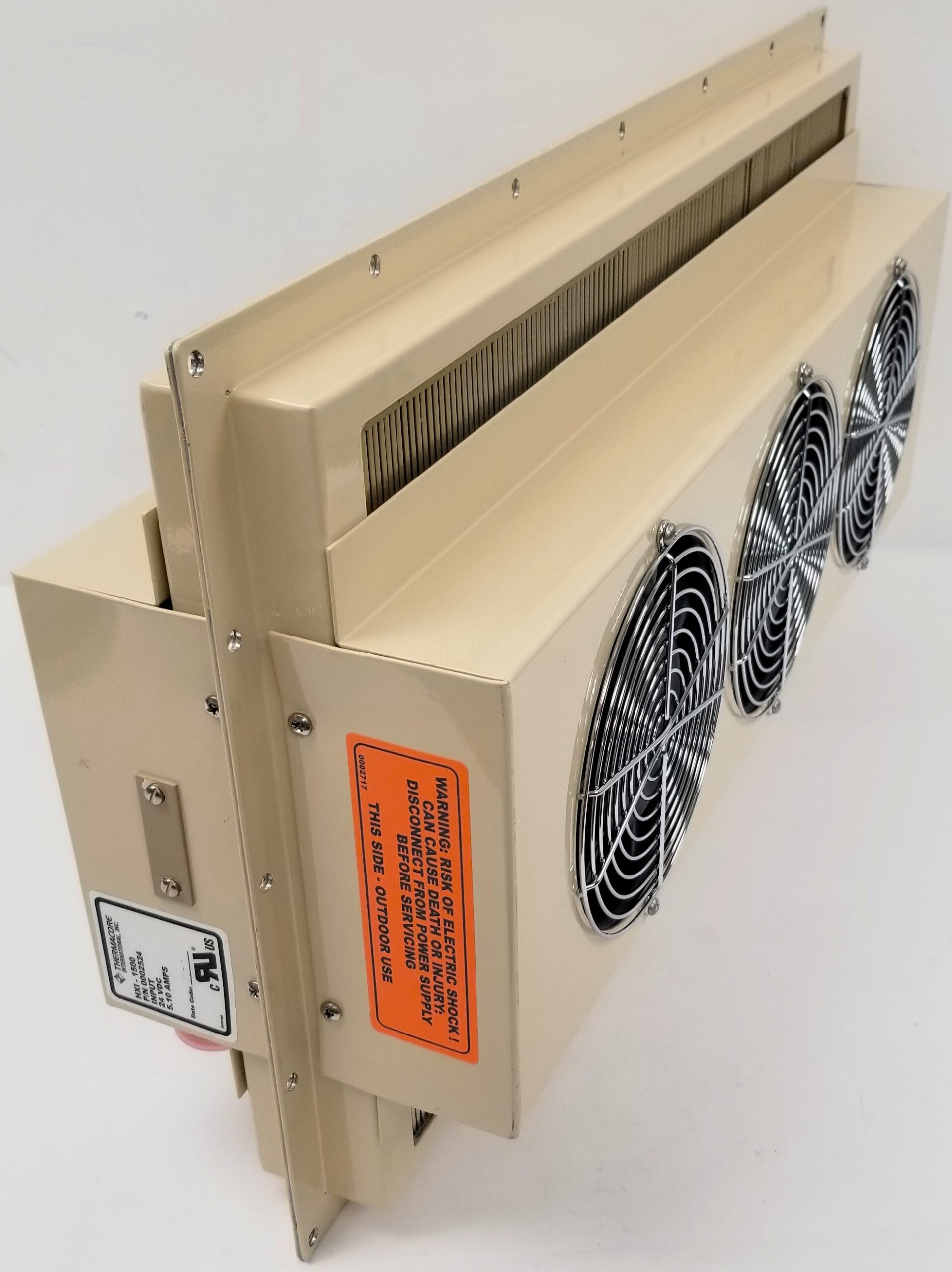

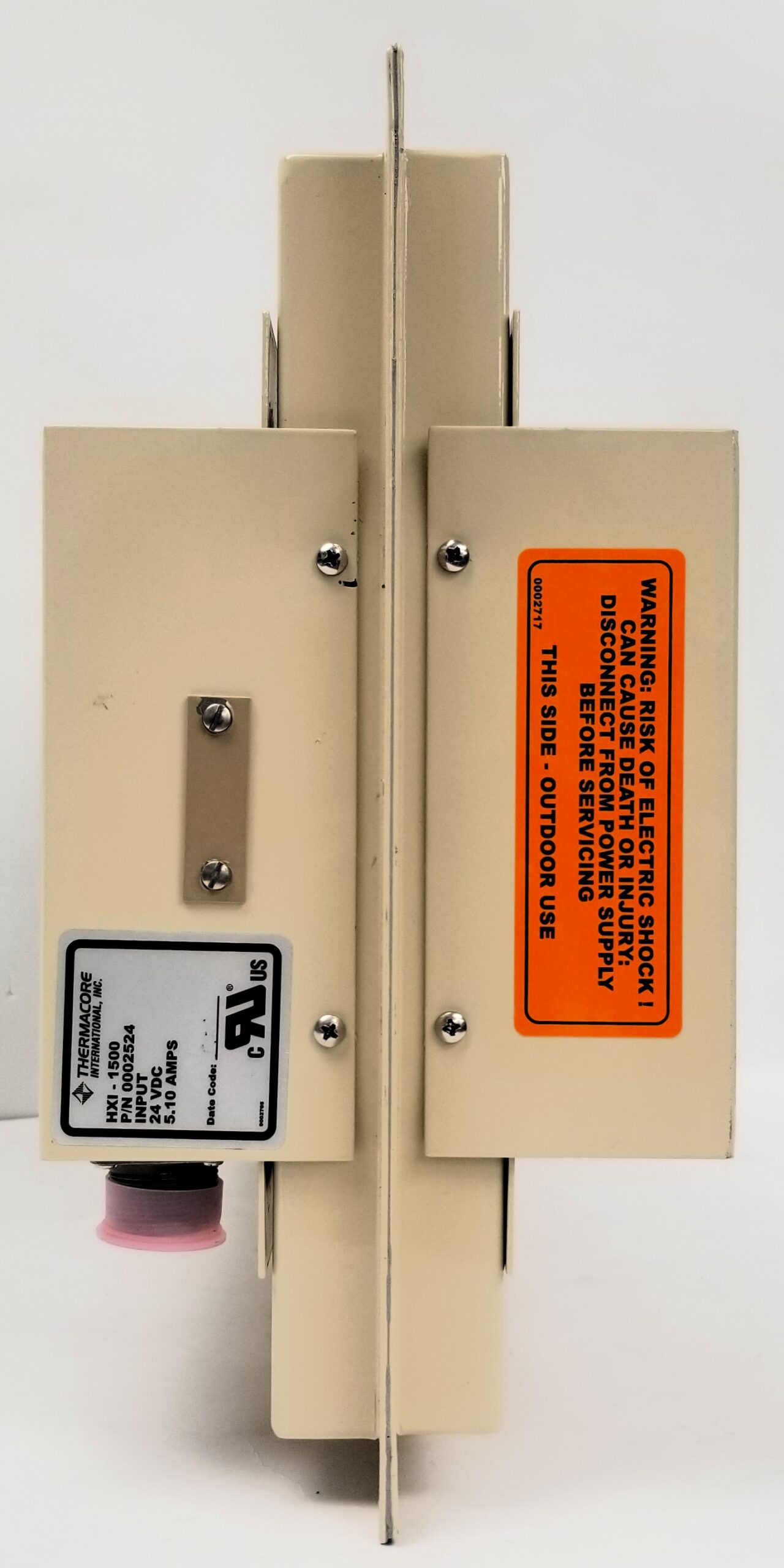

Thermacore International Inc. HXI-1500 Air to Air Heat Exchanger

Thermacore International Inc. HXI-1500 Air to Air Heat Exchanger. Military grade. New. No manual or other documentation, cables or other accessories. Purchaser responsible for compatibility, proper installation and use. As shown.

For high-heat transfer performance with indoor and outdoor electronic enclosures, rely on Thermacore HXI Series. These versatile heat exchangers give you compact size and
significantly improved heat transfer performance, even at high-heat loads, through double-sided impingement cooling technology. The HXI Series heat exchanger can dissipate twice the heat load of most conventional heat exchanger technologies of similar size, so you can have both higher performance and lower fabrication costs. Standard units are available with 2, 4 or 6 fans, and custom optional features such as alarms and temperature controls are also available. The HXI Series is UL recognized and meets Telcordia GR-487-CORE, NEMA 4 and NEMA 12 (IP66 and IP55) requirements.

HXi™ Series
Thermacore’s HXi™ Series air-to-air heat exchangers are designed primarily for cooling indoor and outdoor electronic enclosures. The HXi™ uses a double-sided impingement technology to achieve significantly improved heat transfer performance while reducing heat exchanger size. Comparative tests verified that a HXi™ heat exchanger is capable of dissipating twice the heat load of many other types of heat exchangers at a comparable size.Thermacore’s patent-pending design makes the HXi™ Series heat exchanger a lower-cost and higher-performance alternative to conventional heat exchanger technology.

Size: 24″W X14″H X 7.5″D Weight: 34Lbs

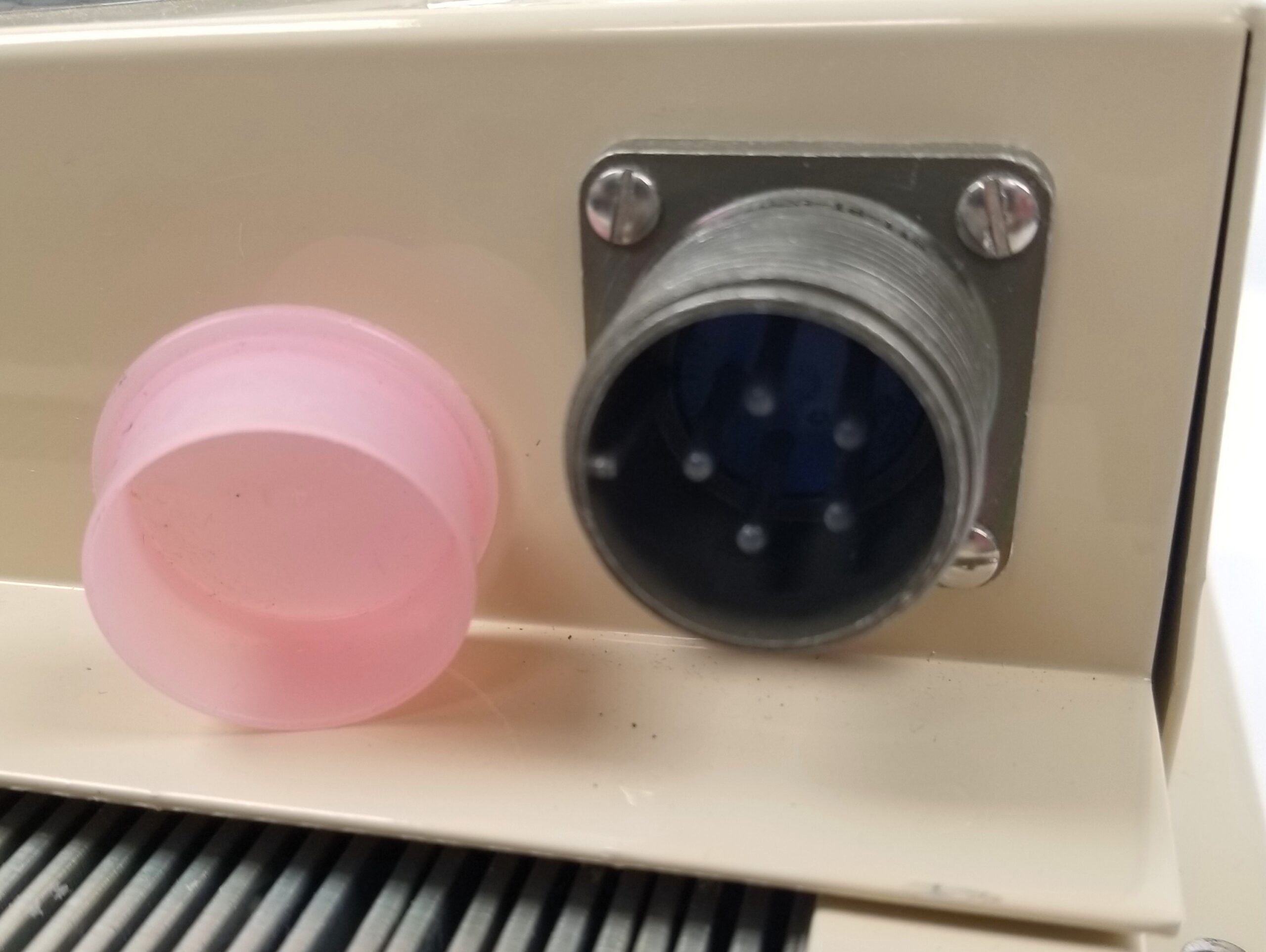

24 Volts D.C. 5.1 Amperes Military style connector Amphenol 18-11PF
