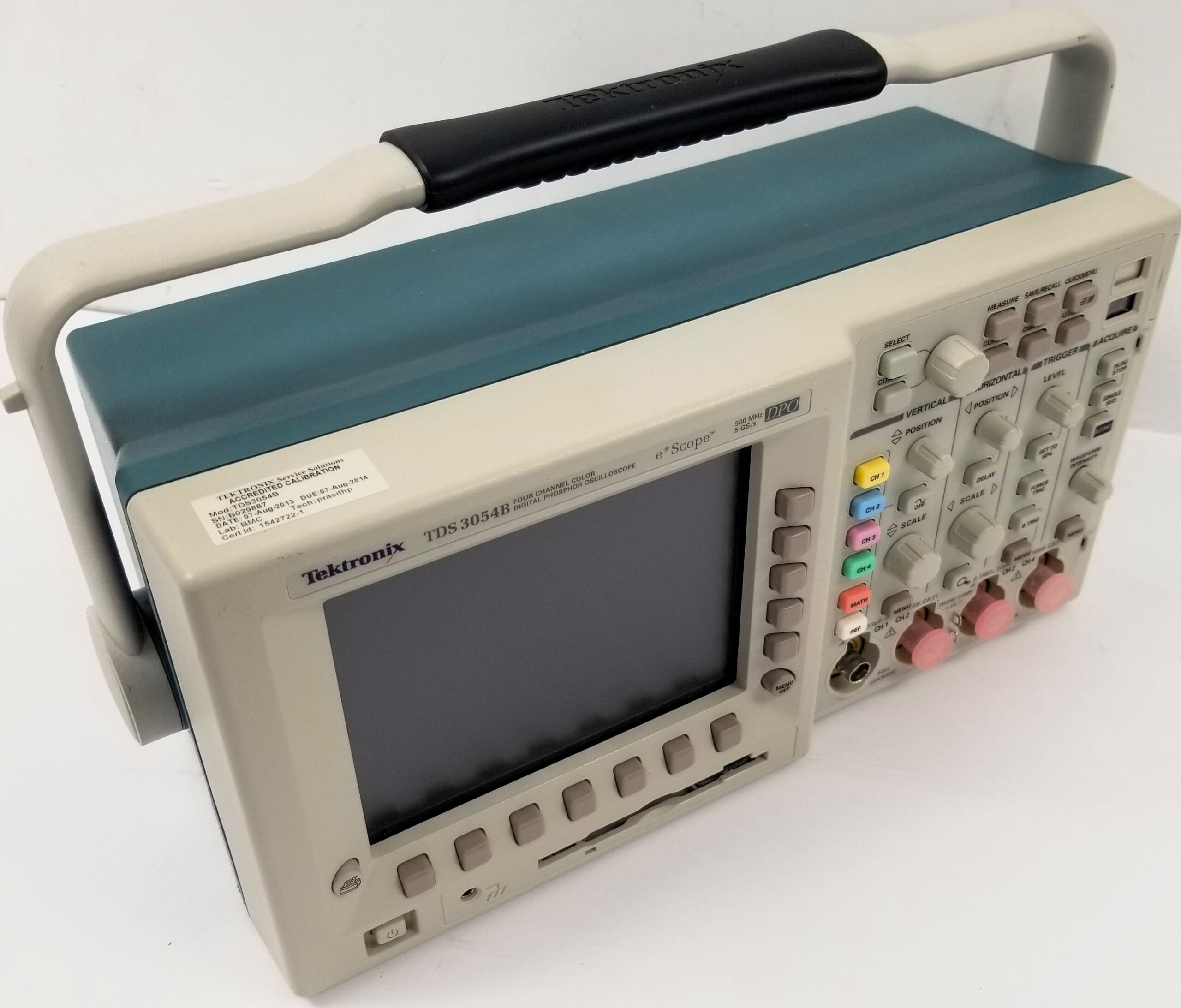

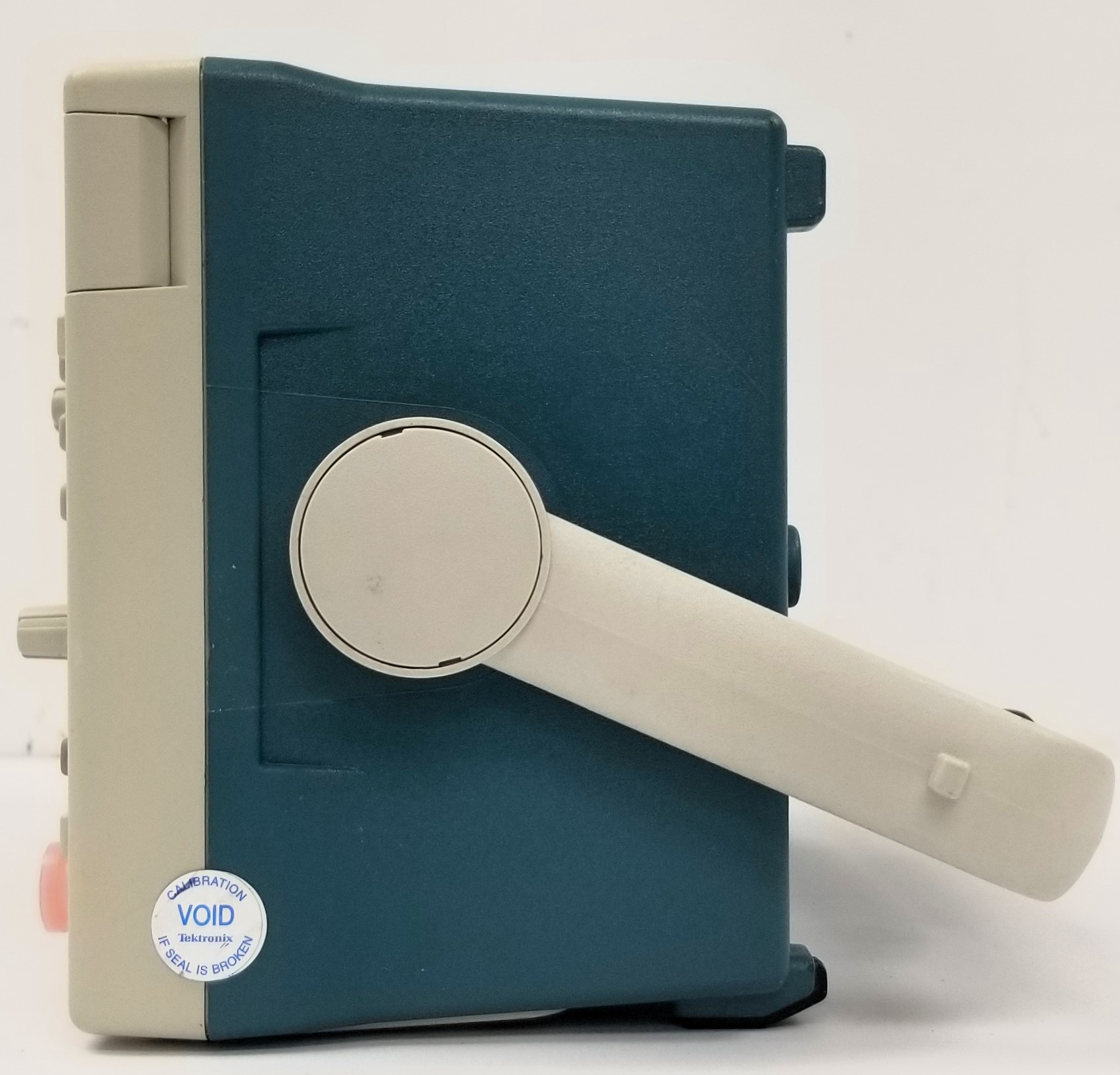

Tektronix TDS 3054B 500MHz 4 Channel Digital Phosphor Oscilloscope

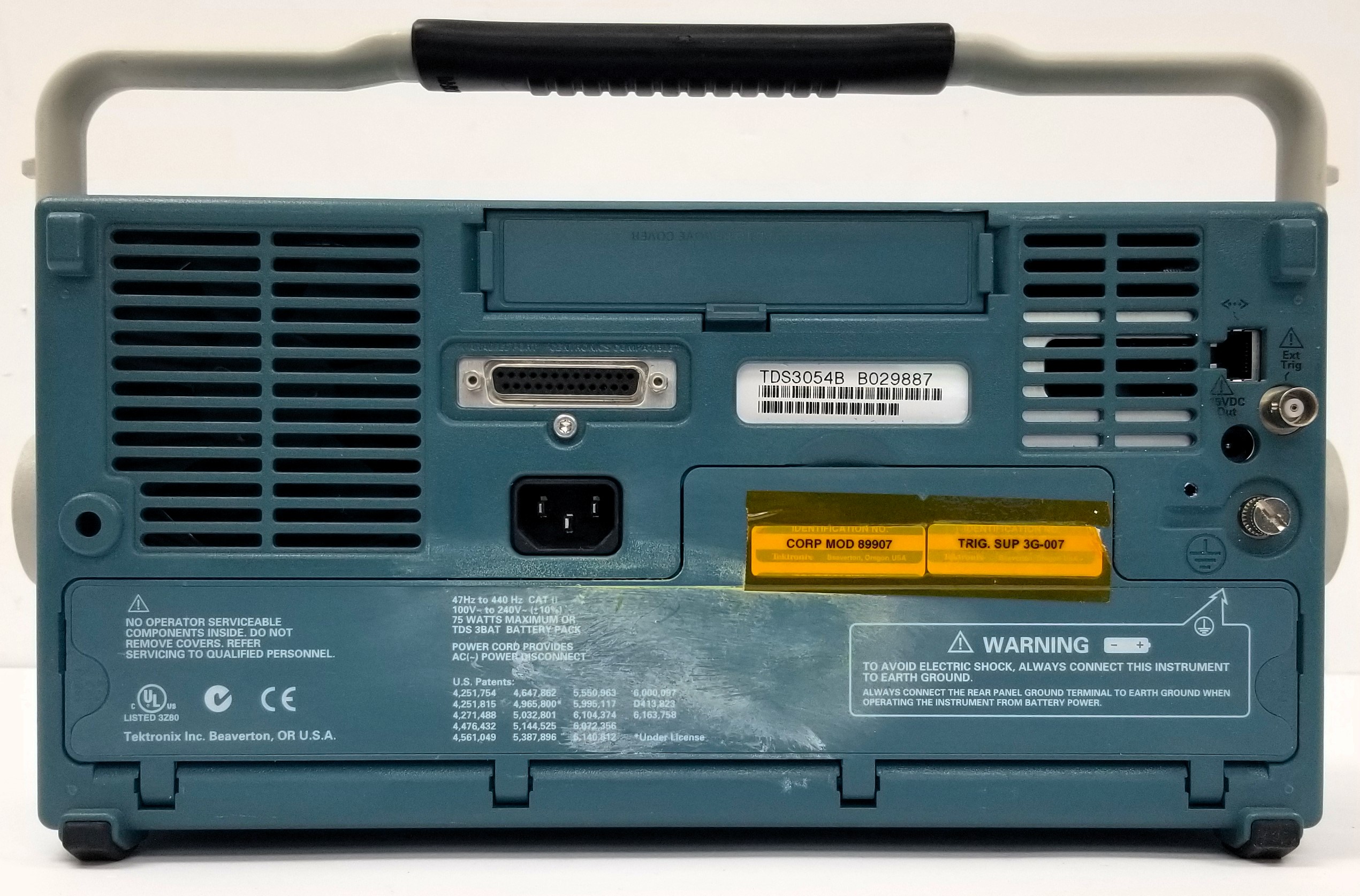

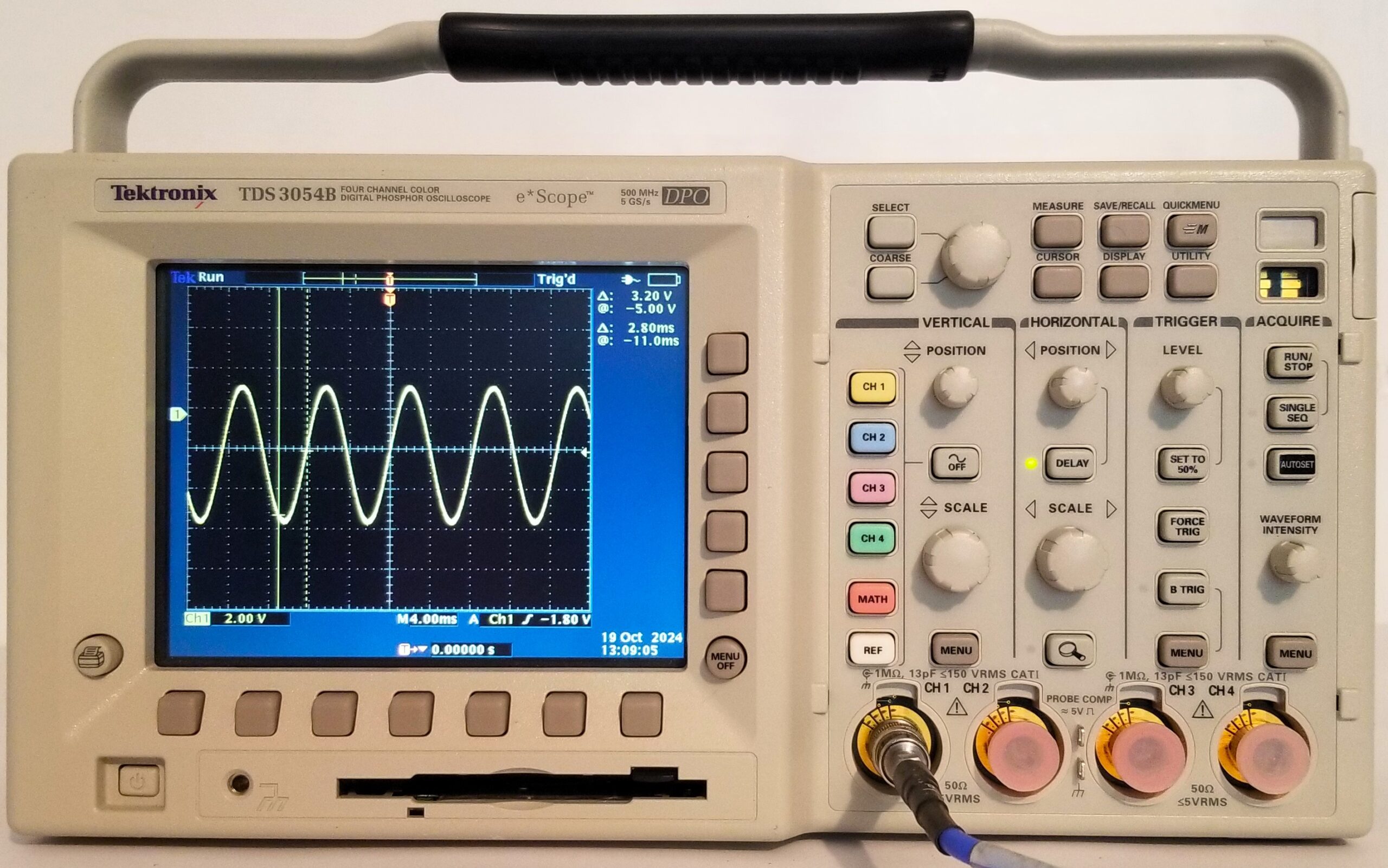

Tektronix TDS 3054B 500MHz 4 Channel Digital Phosphor Oscilloscope. Corp mod 89907 and Trig SUP 3G-007. Unit powers on. Completes self-test with no errors and instrument initializes O.K. Display clear and bright. Cooling fan clean and quiet. Auto set function used with each channel individually – O.K. No manual, probes, software, memory modules, rechargeable battery pack, face cover or other accessories. Purchaser responsible for any calibration, updates or other maintenance. As shown. *This oscilloscope model series is known for ease of use (intuitive & logical), light weight, compact design and battery pack (can be added) operation. Perfect for academic settings, small laboratory or even home/hobbyist.

Tektronix TDS3054B Digital Phosphor Oscilloscope, 500 MHz

The TDS3054B is a portable Digital Phosphor Oscilloscope (DPO). Now, every design engineer and technician can take advantage of the tremendous benefits of DPOs. DPOs deliver a new level of insight that makes dealing with complex signals simple. DPOs display, store, and analyze, in real-time, three dimensions of signal information: amplitude, time, and distribution of amplitude over time.

Benefits of DPO
DPOs have an intensity-graded color display that provides information about the frequency of occurrence of signal amplitudes and widths. This helps the user locate and characterize waveform anomalies that can be elusive on traditional Digital Storage Oscilloscopes. The fast update rate of DPOs also makes it easier to capture and display infrequent waveforms or waveform variations.

Quick to Learn and Quick to Use
The TDS3000 Series graphical user interface offers a new operating mode called QuickMenu. This quick-access user interface makes the main oscilloscope controls accessible with a push of a single button. Included with every scope is an online tour disk that runs in the oscilloscope. This disk gives an overview of the product’s operation and capabilities.

Features:

• 500 MHz Bandwidth
• Sample Rate on each channel: 5 GS/s
• 4 Channels
• Full VGA Color LCD
• Built-in Floppy Disk Drive For Easy Storage and Documentation
• 21 Automatic Measurements
• Centronics Port Standard for Quick, Convenient Hardcopies
• 9-bit Vertical Resolution
• Multi-Language User Interface
• QuickMenu User Interface Mode for Quick, Easy Operation
• Optional Modules for RS-232, GPIB, or VGA Communication Ports
• Support for Active Probes, Differential Probes, and Current Probes that Provide Automatic Scaling and Units
• Shipping weight: 15 lb
