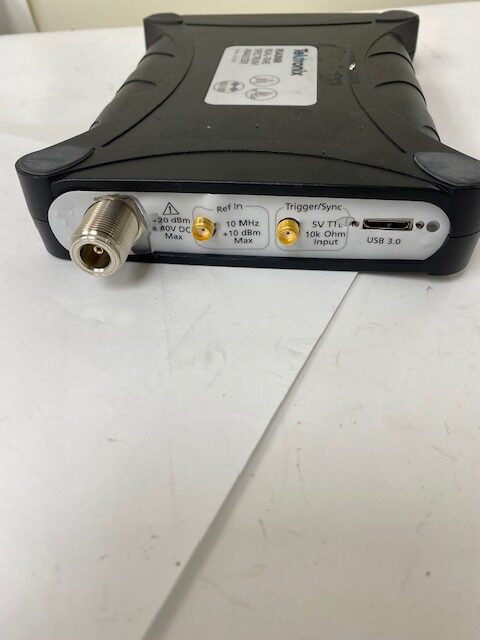

Tektronix RSA306B Real-Time Spectrum Analyzer

The Tektronix RSA306B is a compact, USB-powered real-time spectrum analyzer offering a blend of portability and high-performance features. Ideal for applications in fields such as wireless communications, electromagnetic interference (EMI) troubleshooting, and signal analysis, it leverages the computing power of your laptop or tablet for data processing.

🔧 Key Specifications

• Frequency Range: 9 kHz to 6.2 GHz

• Real-Time Bandwidth: 40 MHz

• Dynamic Range: -160 dBm to +20 dBm

• Minimum Signal Duration for 100% Probability of Intercept (POI): 15 µs

• RF Input Connector: Type-N

• Environmental Compliance: Meets MIL-STD-28800 Class 2 standards for shock and vibration

• Interface: USB 3.0 (sourced separately)

These specifications make the RSA306B suitable for a wide range of signal analysis tasks, from basic spectrum analysis to more complex measurements involving modern wireless standards.

🧰 Applications

The RSA306B is well-suited for:

• EMI troubleshooting and precompliance testing

• Signal analysis in wireless communication systems

• Field and laboratory measurements requiring portability

• Educational purposes in academic settings

Its combination of portability, performance, and affordability makes it a valuable tool for professionals and educators alike.
