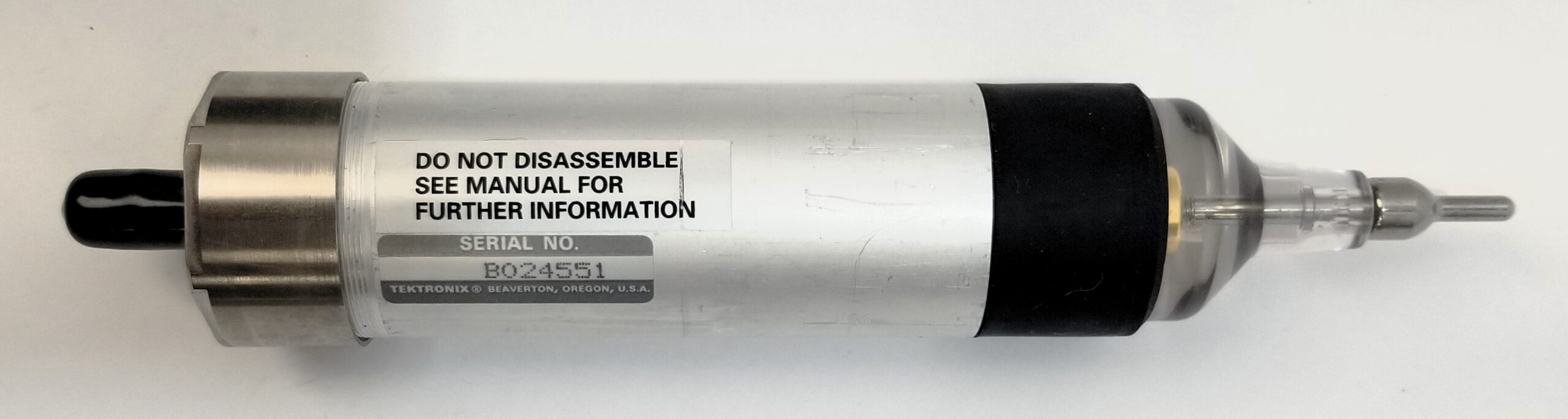

Tektronix P6015A Passive High Voltage Probe 1000:1 20kV 75MHz
Original price was: $2,000.00.$1,790.00Current price is: $1,790.00.
SKU: 82807
Tektronix 6015A Passive High Voltage Probe
Out of stock

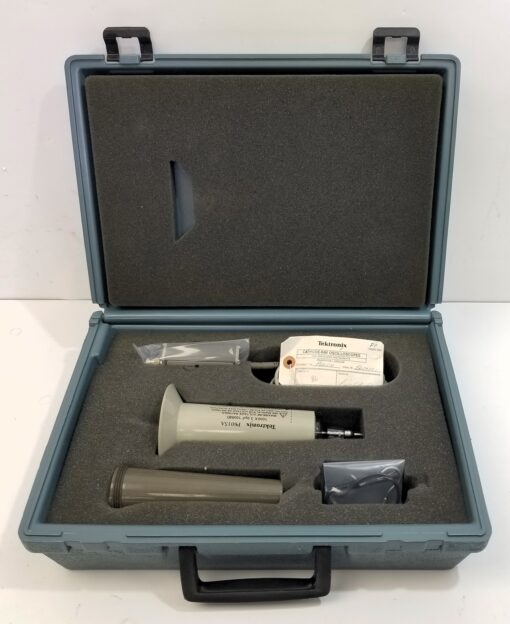

CompareTektronix P6015A Passive High Voltage Probe 1000:1 20kV 75MHz. Very good, like new condition with hard case. No manual. Purchaser responsible for any maintenance, calibration or certification if required. As shown.
Features and Specifications
- DC to 75 MHz
- High Voltage – 20 kV DC / 40 kV Peak (100 ms Pulse Width)
For heavy-duty high-performance measurements of voltages over 2.5 kV, the P6015A is the industry standard. You can measure DC voltages up to 20 kVRMS and pulses up to 40 kV (peak, 100 ms duration). The 75 MHz bandwidth enables you to capture fast, high-voltage signals.
Applications
- Power supply design
- Design motor drive
- Electronic ballast
- Power semiconductors
- Switch mode control
- UPS systems
- Power converters
Brand: Tektronix
Bandwidth: 75 MHz
Attenuation: 1000X
Input Capacitance: 3 pF
Maximum Input Voltage: 20 kV
Cable Length: 3 m
Series: P-Series
Dimensions: 8.50 x 18 x 21″
Input Impedance: 100 MΩ
Risetime: 4 ns
Series Compatibility: 5 Series MSO, 2 Series MSO
Type: Passive Probe
| Weight | 4 lbs |
|---|---|
| Dimensions | 18 × 10 × 8 in |
