Tektronix K420 Oscilloscope Cart

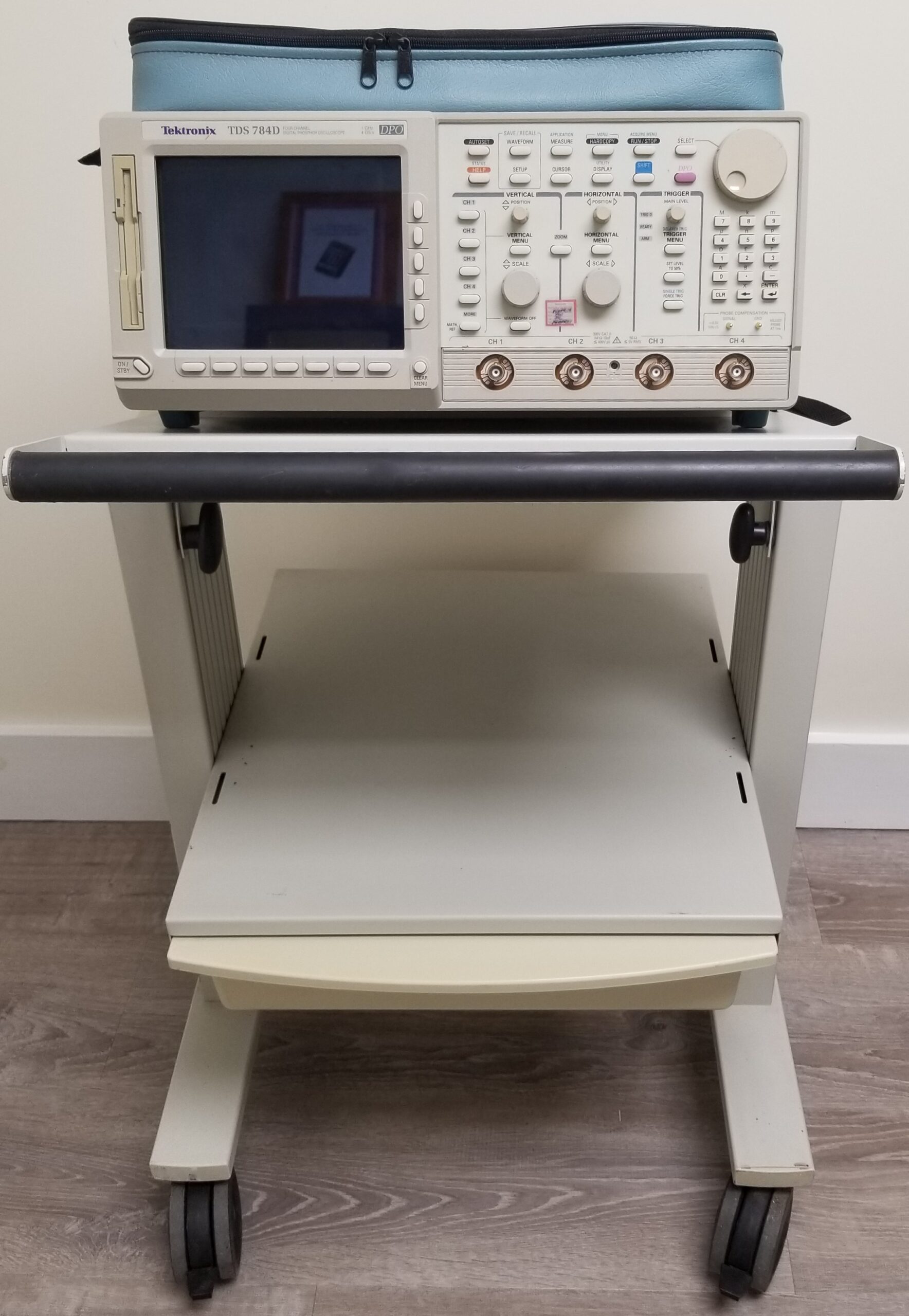

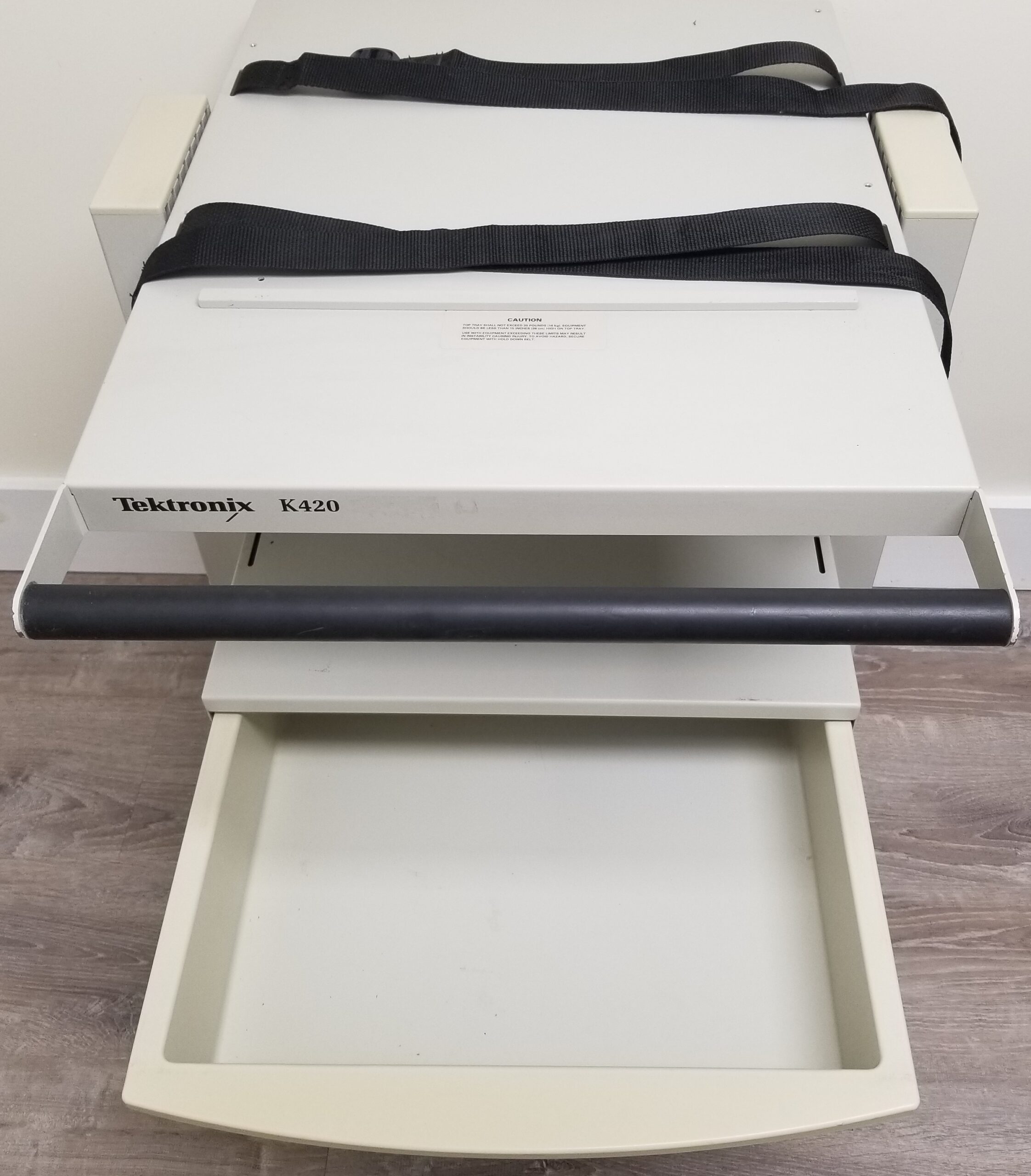

Tektronix K420 Oscilloscope Cart. Tilting top shelf with front foot stop and security straps. Lower fixed shelf with storage drawer underneath. Large swivel rubber wheels with front wheel locks. *In person pick up or arrange your own shipping preferred. This item will ship as dimensional weight and may be cost prohibitive.

The Tektronix K420 Oscilloscope Cart is a durable, mobile workstation designed to support Tektronix TDS Series oscilloscopes and similar instruments in laboratory, manufacturing, and service environments. Its ergonomic design and robust construction make it ideal for professionals requiring a stable and organized platform for their test and measurement equipment.

🔧 Key Features

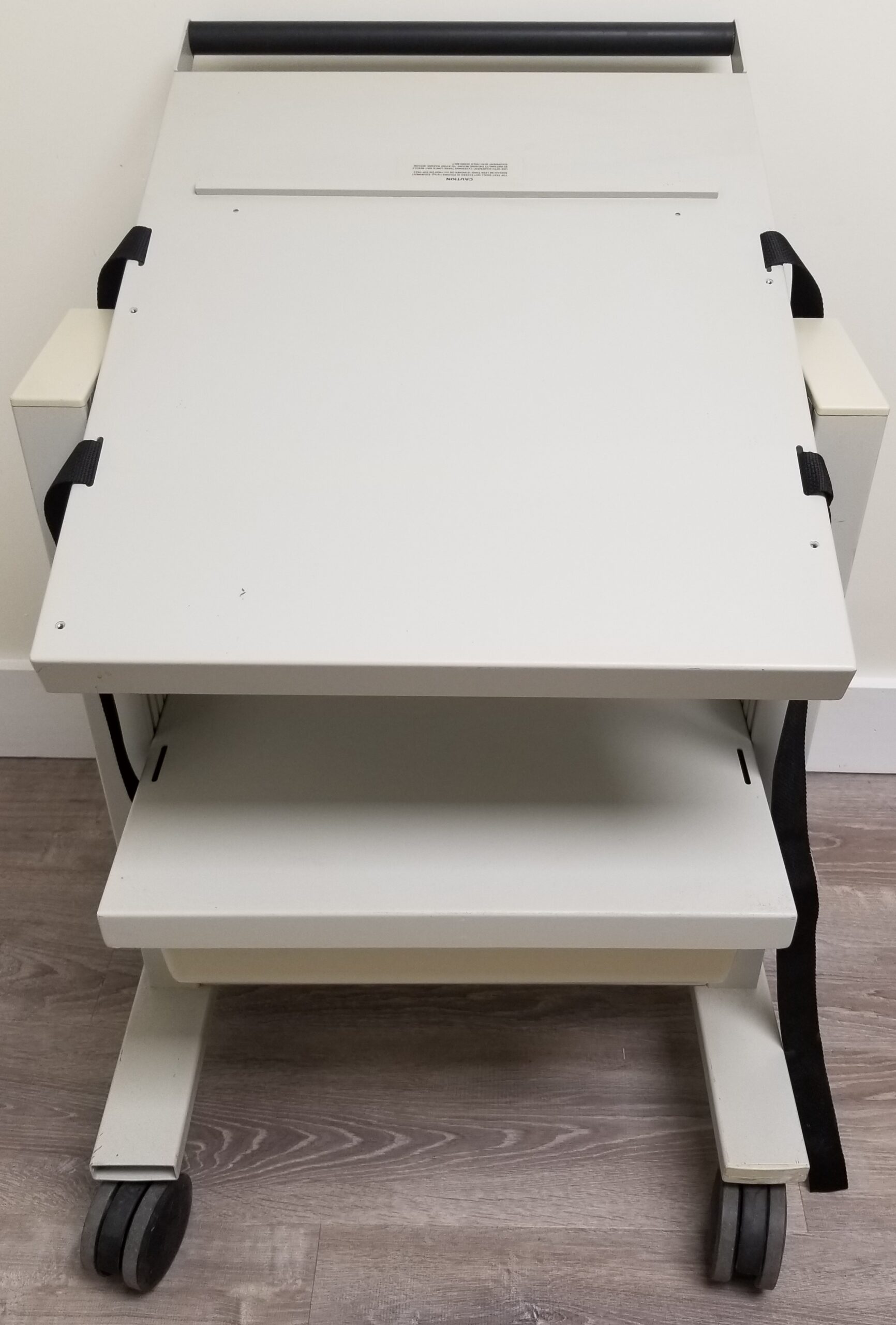

• Tiltable Top Shelf: Adjustable from 0° to 26°, allowing optimal viewing angles for various instruments.

• Heavy-Duty Construction: Supports up to 82 lbs (37 kg) per shelf, accommodating a wide range of equipment.

• Integrated Storage Drawer: Spacious drawer measuring 19.5″ x 22″ x 4″ (496 mm x 559 mm x 102 mm) for convenient storage of accessories and documentation.

• Mobility: Equipped with locking casters for easy transportation and stability during use.

📐 Technical Specifications

• Overall Dimensions:

  • Width: 25.0″ (635 mm)

  • Height: 30.7″ (780 mm)

  • Depth: 24.4″ (620 mm)

• Top Shelf Dimensions:

  • Width: 19.75″ (502 mm)

  • Depth: 21.0″ (533 mm)

• Bottom Shelf Dimensions:

  • Width: 20.0″ (508 mm)

  • Depth: 21.0″ (533 mm)

• Net Weight: 57 lbs (26 kg)

• Shelf Tilt Range: 0° to 26°

• Shelf Loading Capacity: 82 lbs (37 kg) per shelf

• Drawer Dimensions: 19.5″ x 22″ x 4″ (496 mm x 559 mm x 102 mm)
