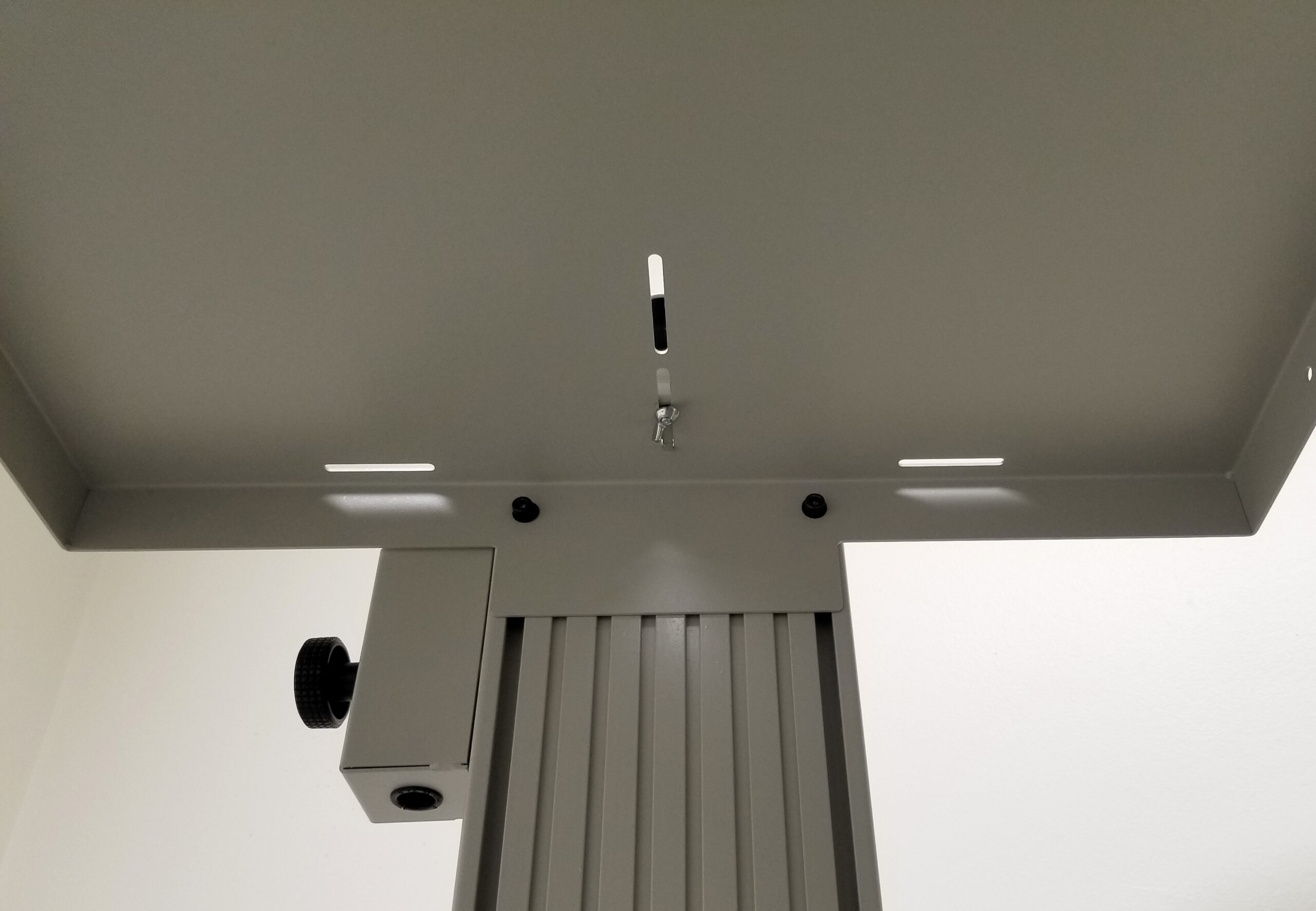

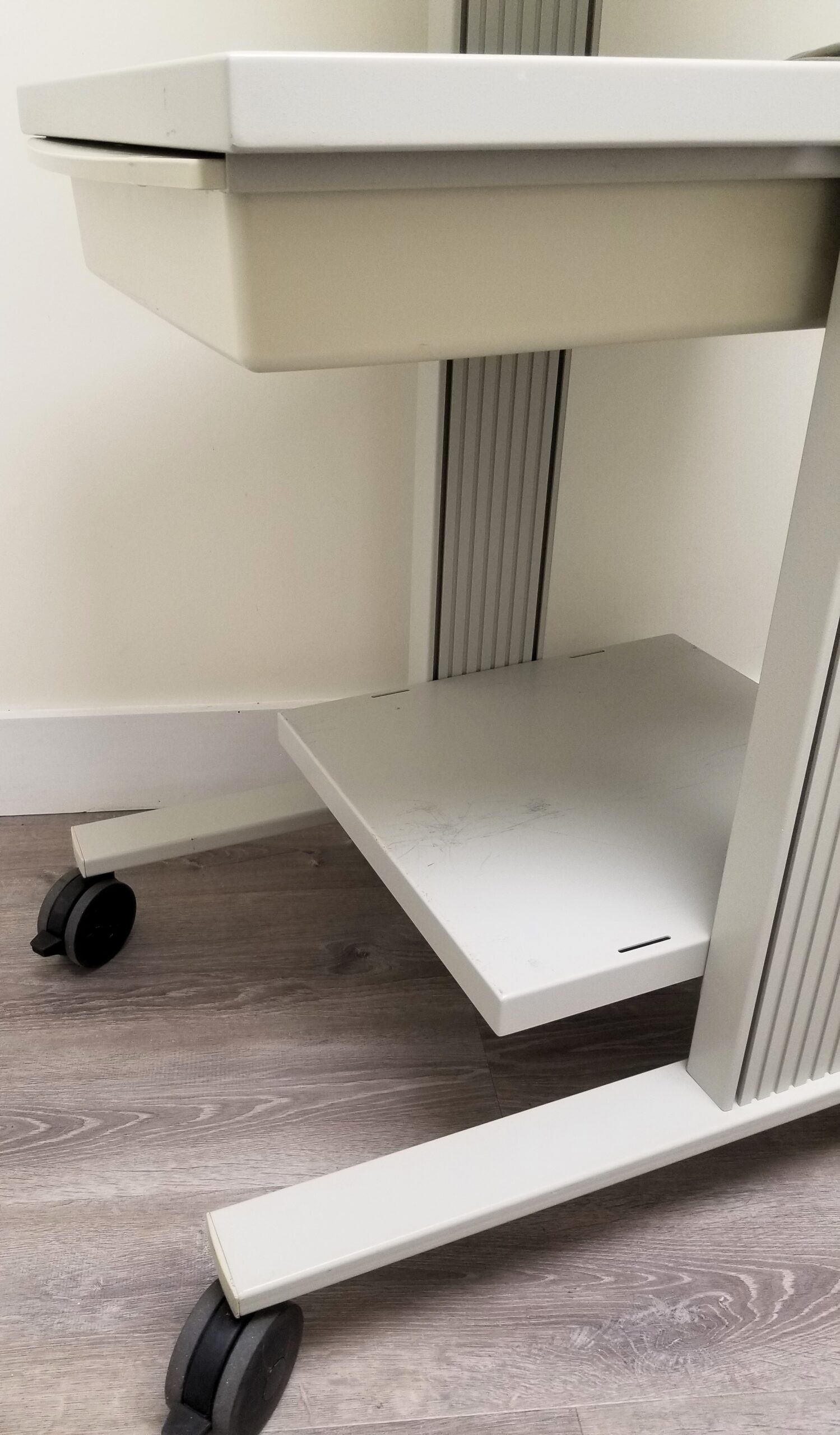

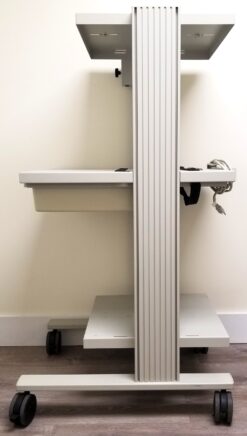

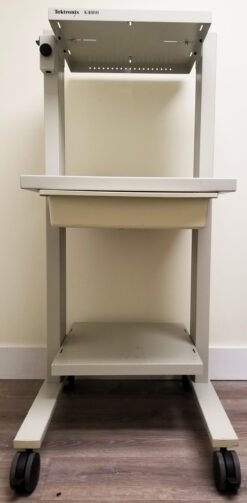

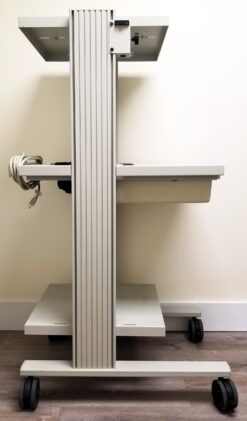

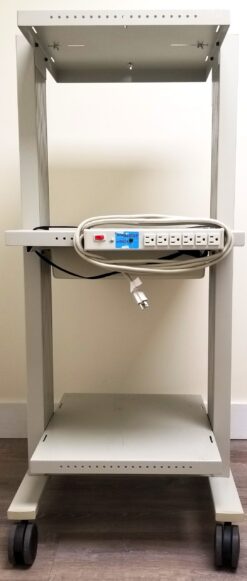

Tektronix K4000 Test Equipment Cart. Good condition. 56″ high, 25″ wide, 35″ deep. Top and bottom shelf (adjustable) are 20″ wide and 21″ deep, middle shelf (with drawer) is 24″ wide and 28 3/4″ deep. The cart is 82 Lbs. The total load capacity is 250 Lbs. As shown. In-person pick-up or arrange your own transport is preferred for this item, freight/pallet is required, and shipping cost may be high.

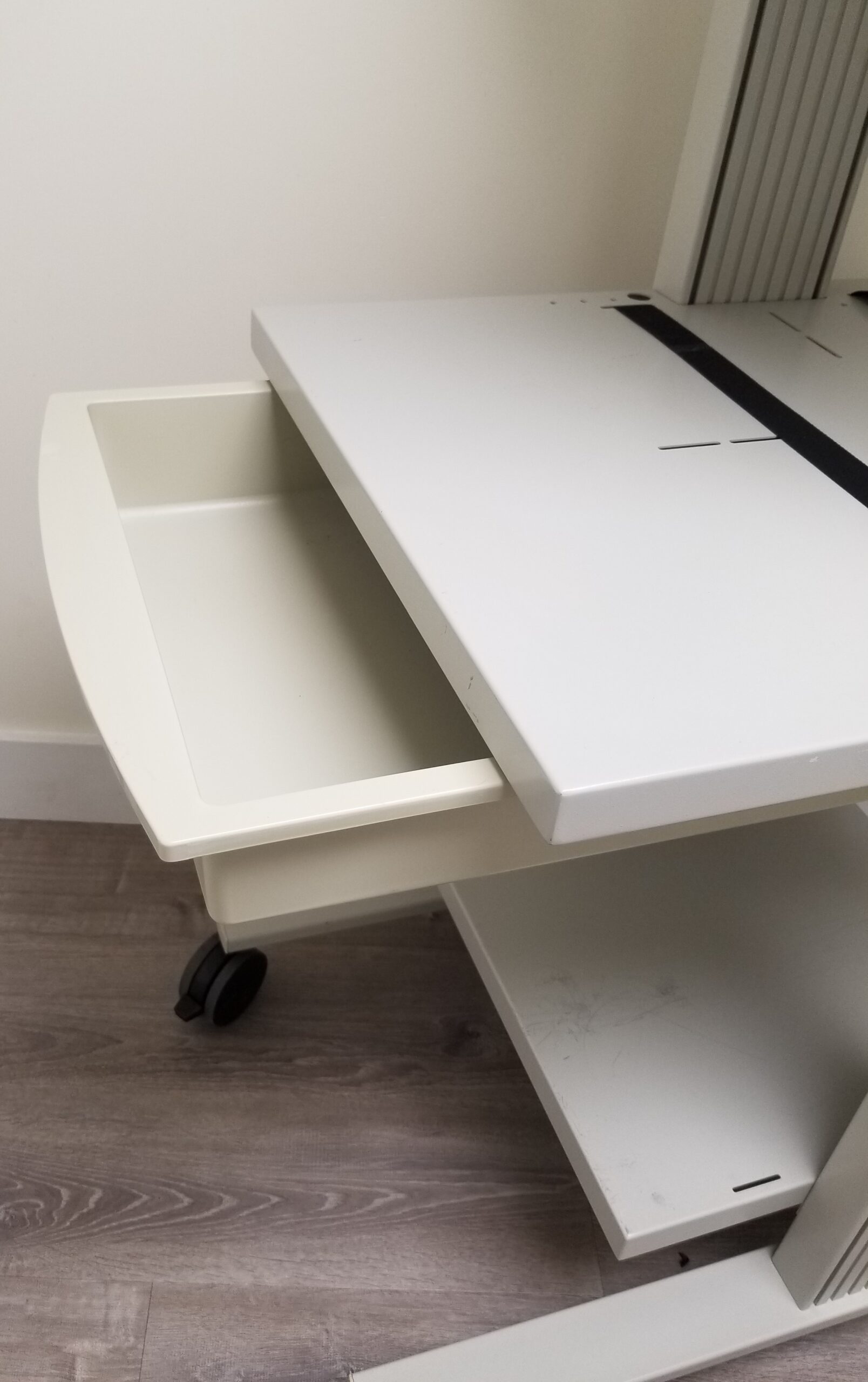

The K4000 Mobile Workstation provides convenient instrument transportation while adding valuable workspace for those crowded labs. This compact three-shelf cart is based on the sturdy K400 Series architecture, able to support a varied combination of instruments, PC, printers, and/or display monitors up to 21 in. Key enhancements feature an extended middle shelf for comfort and space when using a keyboard and mouse with Window-based instrumentation. Bonus items include a skyhook for probe cable management, monitor clips, and instrument brackets for stability and a storage drawer.
| Dimensions | K4000 | mm | in. |
| Width | Overall Cart | 635 | 25 |
| Top/Bottom | 508 | 20 | |
| Middle | 609.6 | 24 | |
| Height | Overall Cart | 1,422.40 | 56 |
| Depth | Overall Cart | 876.3 | 34.5 |
| Top/Bottom | 533 | 21 | |
| Middle Shelf | 730.25 | 28.75 | |
| Weight | K4000 | kg | lbs. |
| Net | 36.29 | 80 | |
| Shelf Loading | 100 lbs. (45.4 kg) per shelf | 250 lbs. (114.6 kg) maximum | |
| Drawer Dimensions | 19.5 in. x 22 in. x 4 in | (496 mm x 559 mm x 102 mm) | |
