Tektronix 1410A IntelliFrame Mainframe

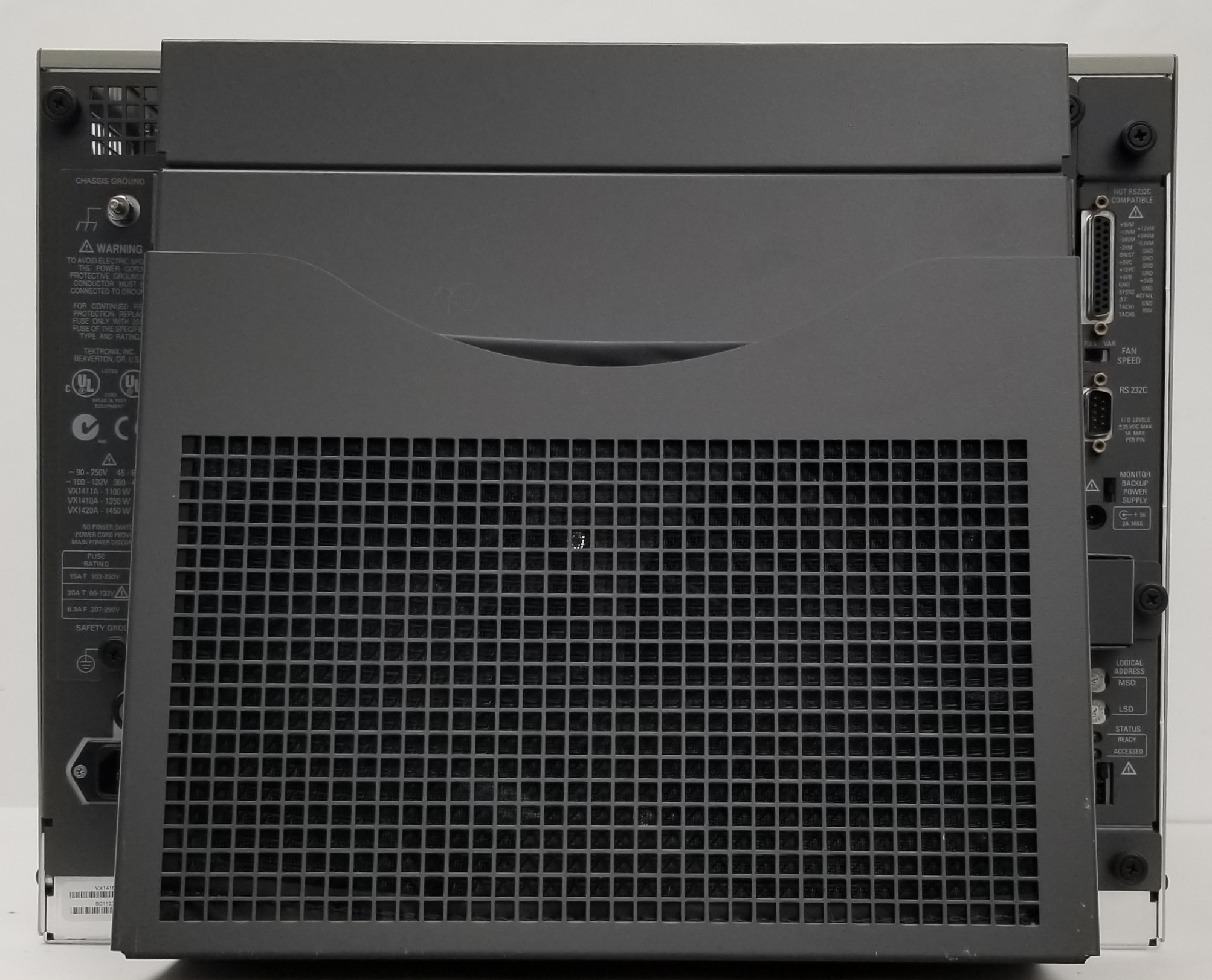

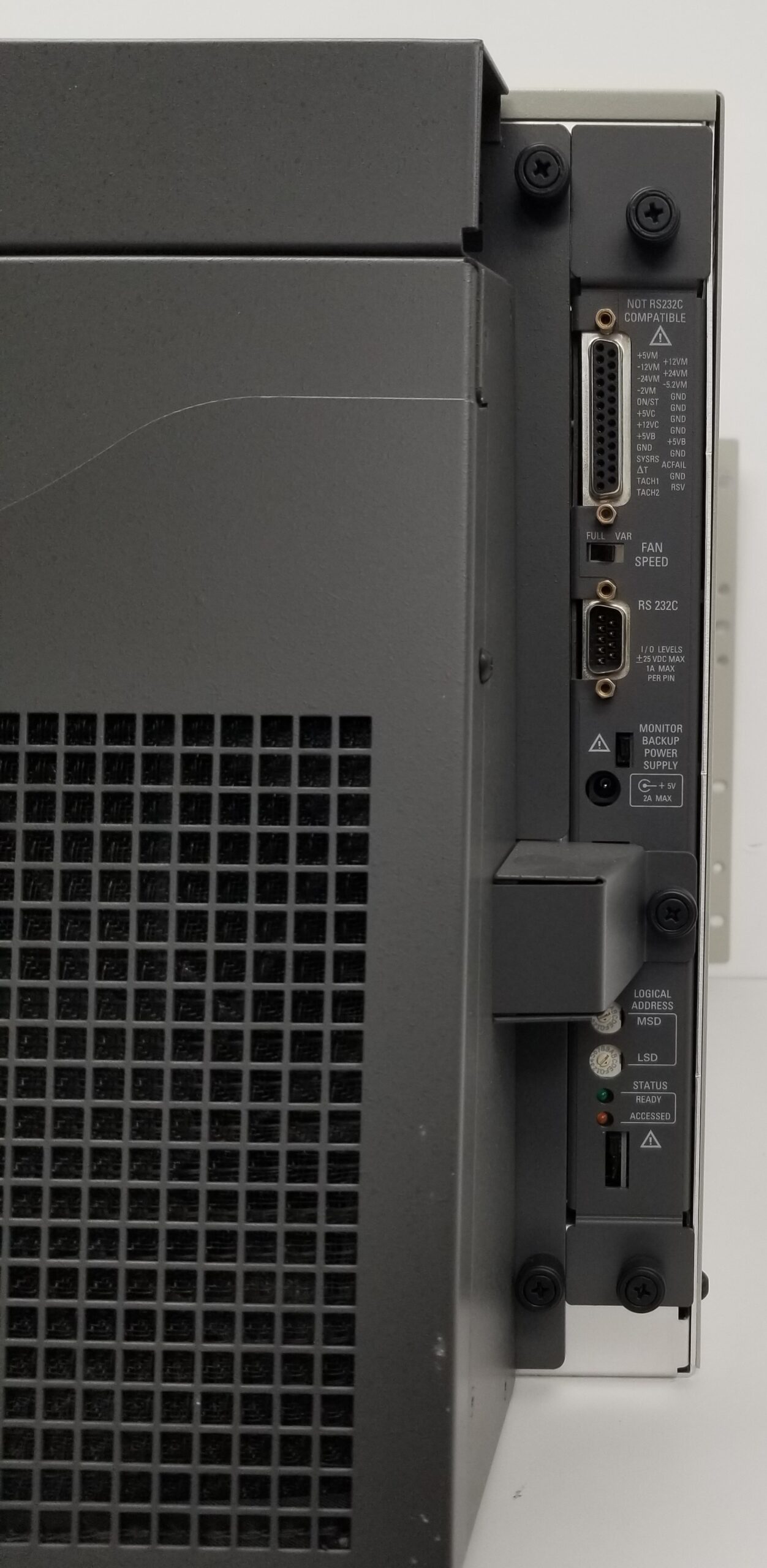

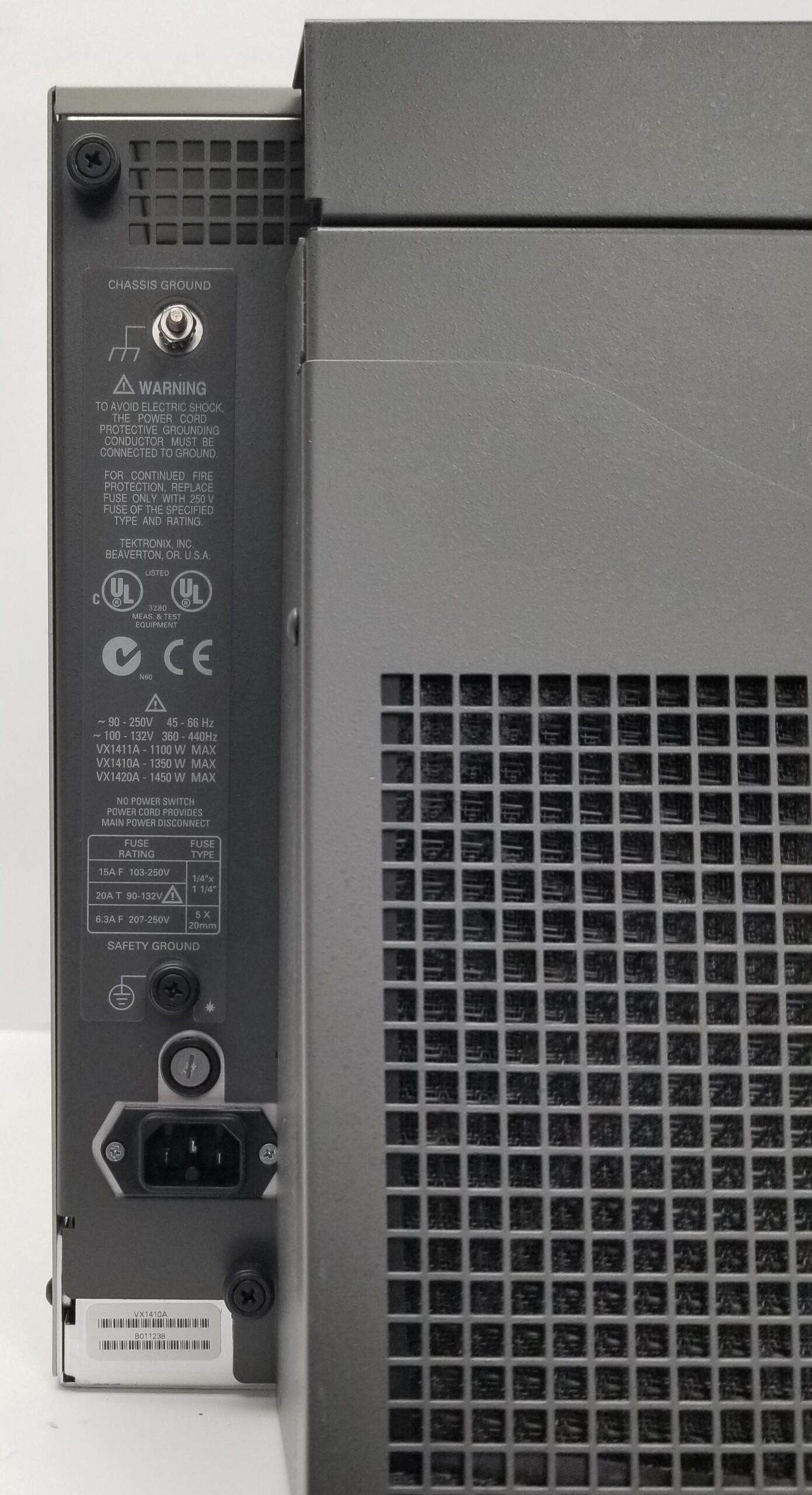

Tektronix 1410A IntelliFrame Mainframe. Unit(s) carefully removed from operational system. No manual, cards or other accessories. As shown.

The Tektronix 1410A IntelliFrame is a modular mainframe system designed for use in test and measurement applications. It serves as a versatile chassis that accommodates various Tektronix and other manufacturers plug-in VXI modules, allowing users to configure it for specific signal analysis, communication testing, and other laboratory or field applications.

Key Features

1. Modular Design
   • Supports a variety of Tektronix and other manufacturers plug-in VXI modules.
   • Provides a flexible, customizable platform for test and measurement applications.
2. High-Performance Signal Processing
   • Designed for real-time signal acquisition and analysis.
   • Compatible with various analog and digital signal processing modules.
3. Expandable Configuration
   • Users can install multiple plug-in cards for scalable performance.
   • Compatible with various Tektronix and other manufacturers plug-in VXI test modules for signal generation, waveform analysis, and data acquisition.
4. Reliable Power Supply & Cooling System
   • Built-in power supply unit ensures stable operation of all installed modules.
   • Efficient cooling system prevents overheating and maintains performance.
5. Intelligent Control & Connectivity
   • Features intelligent frame control for automated module detection and management.
   • Provides multiple communication interfaces for integration into laboratory environments.

Applications

✔ Telecommunications & RF Signal Analysis
✔ Broadcast & Video Signal Processing
✔ Electronics Testing & Debugging
✔ Scientific & Research Applications

Technical Specifications

• Chassis Type: Modular VXI mainframe
• Number of Slots: Supports multiple plug-in modules
• Power Supply: Integrated power distribution for all installed modules
• Cooling System: Active fan cooling for temperature regulation
• Interfaces: Compatible with Tektronix signal processing modules

Why Choose the Tektronix 1410A IntelliFrame?

✔ Highly Configurable – Accommodates various plug-in modules for different testing needs.
✔ Reliable Performance – Designed for precise and stable signal processing.
✔ Scalable & Modular – Easily expandable for diverse applications.
✔ Tektronix Quality – Ensures high accuracy and durability in professional environments.
