TDK-Lambda ESS-200-75 Power Supply (Pallet of 8)

TDK-Lambda ESS-200-75 Power Supply (Pallet of 8)

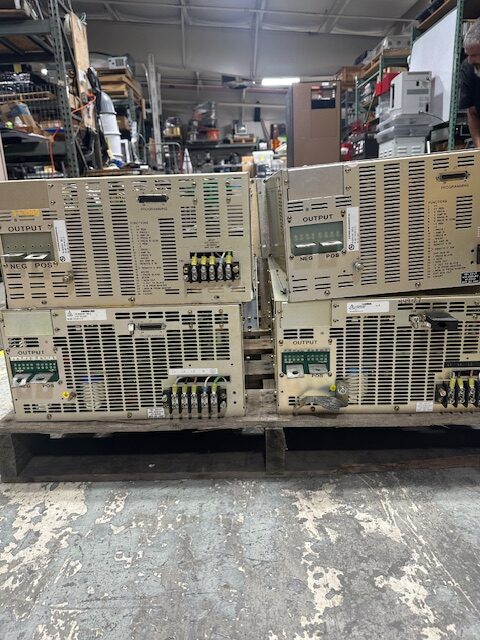

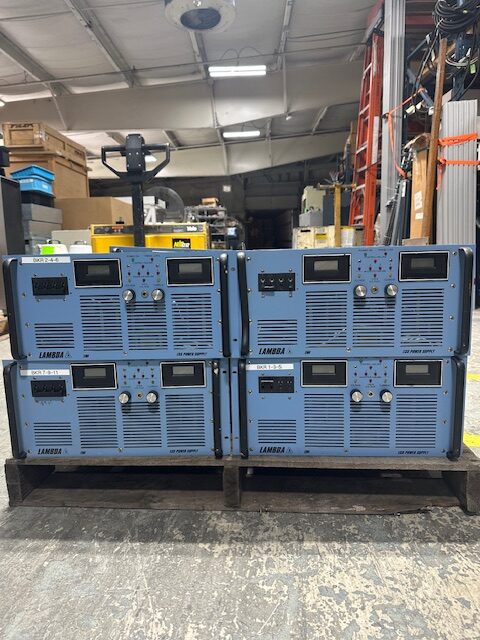

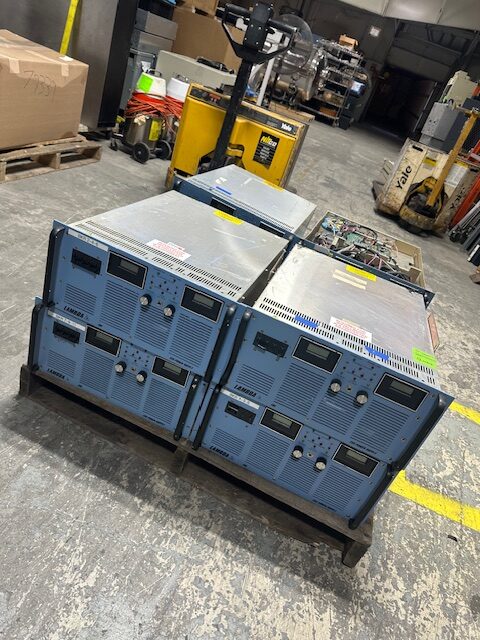

This is a pallet of 8 power supplies being sold as a lot.  None of them have been tested.

6 of the 8 are in good cosmetic shape and believed to be working, but have not been tested.

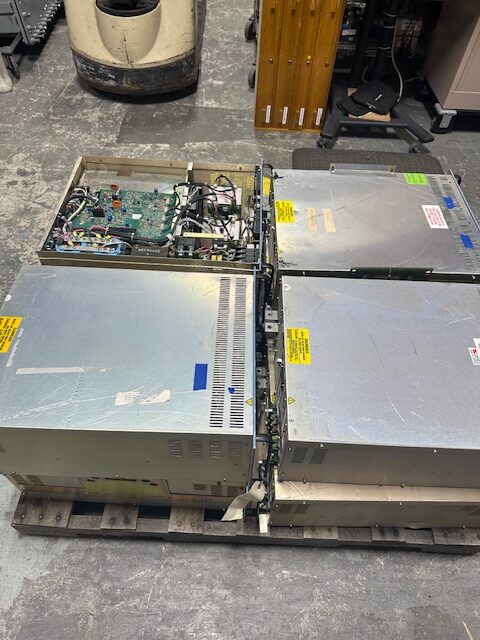

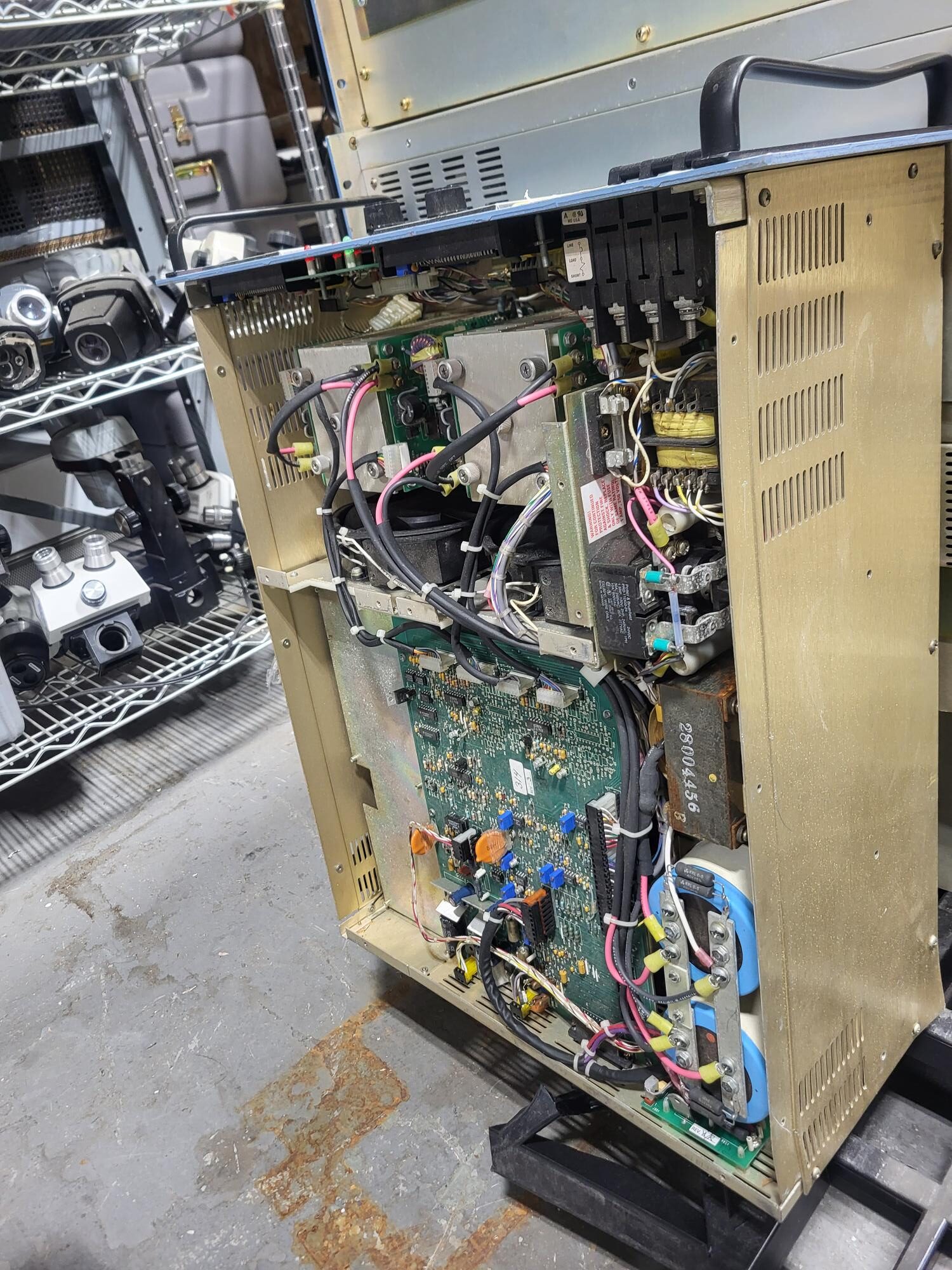

Of the remaining 2 one is missing the top cover, the other front face is broken ( see listing pictures)

The ESS‑200‑75 is part of TDK‑Lambda’s legacy ESS series—a rack-mountable, programmable DC power supply designed for high-power applications (e.g., RF amplifiers, DC motors, magnetic coils)

• Output Specs:

  • Voltage: 0 – 200 V DC

  • Current: 0 – 75 A

  • Maximum Power: 15 kW (5 kW per 5 U rack share)

  • Voltage & current regulation: ±0.1%

  • Ripple & noise: ~35 mV rms (voltage), ~20 mA rms (current)

• Input & Efficiency:

  • Input: 3-phase AC (≈ 432–528 VAC, 47–63 Hz) TDK

  • Power factor: ~0.9; Efficiency: 85–91% depending on model

• Regulation Tech:

  • Pulse-by-pulse current limiting

  • Adjustable front-panel Over‑Voltage Protection (OVP) Control & Interfaces:

  • Front-panel analog potentiometers & meters

  • Rear-panel analog programming/monitoring; optional RS‑232 / IEEE‑488 interfaces

• Operation Features:

  • Constant Voltage (CV) / Constant Current (CC) modes with automatic crossover

  • Series/parallel stacking capability

  • Remote sense and start/stop interlock support

• Physical & Environmental:

  • 5 U rack-mount (8.75″ height); ~48 kg (105 lb)

  • Operating temperature: 0°C to +50 °C; storage: –55 °C to +85 °C
