PGI MATRIX RASTER SCAN, Freeform Optics – Taylor Hobson

Taylor Hobson PGI MATRIX RASTER SCAN

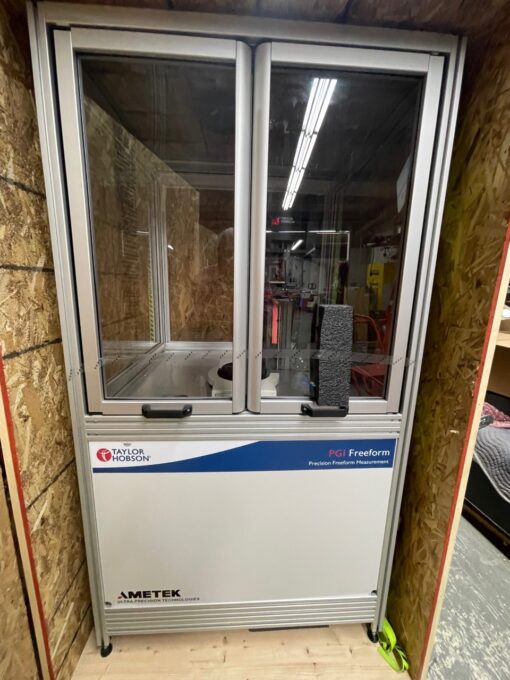

(Phase Grating Interferometer) is a versatile, high resolution 3D Freeform profilometer for high precision measurement. It performs surface finish and form analysis for freeform optics.

Excellent condition! Ready to go!

Been Professionally Crated and Ready to Ship;
2 Crate / 2 boxes
Customer Inspection Appreciated

***66248***

Product Overview
The Taylor Hobson PGI MATRIX RASTER SCAN is a state-of-the-art 3D optical profilometer designed for precise, high-resolution surface measurement, specializing in freeform optics. This advanced instrument offers unmatched accuracy and efficiency, making it indispensable for industries that require fine analysis of complex optical surfaces. Whether for research, production, or quality assurance in industries such as aerospace, automotive, and optical manufacturing, the PGI MATRIX is engineered to deliver reliable results for both small and large optical components, including mobile phone lenses and high-precision astronomy optics.

With the PGI MATRIX, you can quickly measure optical surfaces and forms with precision down to nanometers, making it an essential tool for the development of freeform optics, which are increasingly in demand for cutting-edge technologies.

Operational
Hard Drive & Software needs to be upgraded.

Key Specifications

• Measurement Range: Capable of measuring optical components with diameters up to 200 mm.
• Measurement Resolution: Precision measurements down to 10 nm for form and roughness analysis.
• Field of View: Offers a wide field of view for detailed 3D profiling of both large and small optical components.
• Repeatability: High repeatability with an error margin of less than 0.5%.
• Scanning Speed: Optimized for fast scanning with throughput rates of up to 50 parts per hour.
• Data Output: Provides both 2D and 3D surface maps, along with quantitative analysis such as surface roughness and form errors.
• Automation: Fully automated system with integrated software for easy programming and operation.
• Interface: User-friendly touch-screen interface with intuitive software for seamless integration into any existing testing environment.
• Software: Comes with proprietary Taylor Hobson software, which provides advanced filtering, data analysis, and reporting tools.
• Laser Source: Utilizes advanced laser interferometry for highly accurate surface mapping.
• Temperature Compensation: Built-in compensation for temperature variations to ensure consistent results in changing environments.
• Modularity: Modular design allows for custom configurations to meet specific application needs, including adjustments for optical geometries and component sizes.

Key Features

• Freeform Optics Measurement: Specifically engineered for high-precision measurement of freeform optics, the PGI MATRIX excels in capturing the complex surfaces of modern optical components.
• High-Precision Surface Profiling: Equipped with advanced interferometric sensors, the PGI MATRIX ensures high precision in 3D surface profiling, providing micron-level detail for surface flatness, curvature, and roughness.
• Batch Testing Capabilities: Perfect for high-volume environments, the system supports rapid batch testing, dramatically improving throughput without sacrificing measurement accuracy.
• Real-Time Data Analysis: The integrated software offers real-time feedback, allowing operators to adjust parameters and analyze results instantly, facilitating rapid decision-making.
• Ease of Integration: Designed with flexibility in mind, the PGI MATRIX can be easily integrated into existing workflows, offering seamless compatibility with other testing equipment.
• Adaptability: The system can measure a variety of materials, including metals, plastics, and glass, making it ideal for diverse industries that require optical surface inspection.
• Cost-Effective: Although capable of high-end, research-grade measurements, the PGI MATRIX offers a cost-effective solution for businesses seeking a high-precision optical profiler without the need for costly custom-built systems.

Conclusion
The Taylor Hobson PGI MATRIX RASTER SCAN is an indispensable tool for high-performance, precision measurement in the rapidly advancing field of freeform optics. Whether you’re developing next-generation optics for smartphones, medical devices, or astronomical equipment, this profilometer offers the accuracy, flexibility, and automation you need to ensure top-quality performance. By investing in the PGI MATRIX, you gain a reliable, cost-effective solution for testing that enhances your research, production, and quality control processes.
