Stratasys Dimension SST 1200es
Original price was: $5,000.00.$4,500.00Current price is: $4,500.00.
1 in stock
CompareProduct Description

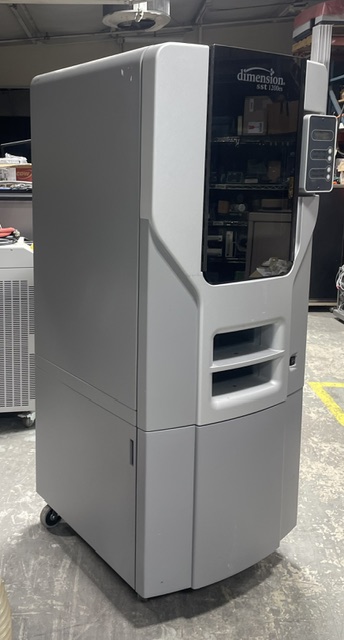

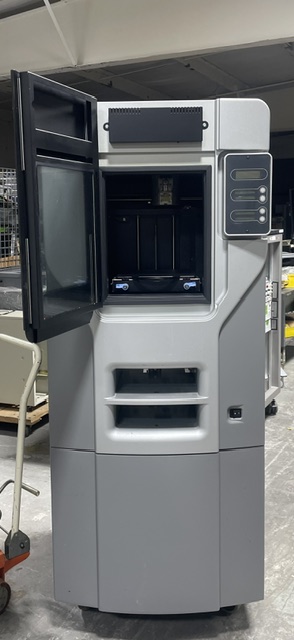

Stratasys Dimension SST 1200es 3D Printer – Industrial FDM Production System with Soluble Support
This used Stratasys Dimension SST 1200es is a professional-grade fused deposition modeling (FDM) 3D printer designed for rapid prototyping and production of functional parts. The SST 1200es was part of Stratasys’s “es” (enhanced) series, offering a larger build envelope than the base 1200 model, increasing the build volume to 10 x 10 x 12 inches (254 x 254 x 305 mm) .
The “SST” designation indicates this printer includes soluble support technology, using a specialized support material (Support 200-S) that dissolves in a water-based solution for easy removal, enabling complex geometries and intricate internal cavities . The machine typically uses ABSplus thermoplastic, a production-grade material known for its strength, durability, and temperature resistance, making it suitable for form, fit, and functional testing .
Condition Note: This unit is untested and sold as-is. It is a complex industrial machine that requires specialized materials, software, and maintenance. No materials (ABSplus, Support 200), print heads, or accessories are included unless specified.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Stratasys, Inc. |
| Model | Dimension SST 1200es |
| Technology | FDM (Fused Deposition Modeling) |
| Build Envelope | 10 x 10 x 12 inches (254 x 254 x 305 mm) |
| Layer Thickness | 0.007 or 0.010 inches (0.178 or 0.254 mm) |
| Material (Part) | ABSplus (Stratasys proprietary) |
| Material (Support) | Support 200-S (soluble) |
| Support Removal | WaterWorks™ soluble support system |
| Nozzle Diameter | 0.010 inches (0.254 mm) |
| Software | Insight (preparation) and CatalystEX (control) |
| Operating System | Windows-based (legacy, often XP/Vista/7) |
| Approvals | UL, CE, CSA |
| Machine Weight | Approx. 420 lbs (191 kg) |
| Dimensions | 48″ x 43″ x 48″ (1220 x 1090 x 1220 mm) |
| Power Requirements | 220-240 VAC, 50/60 Hz, 16.2 A |
| Air Requirements | 1.13 m³/min at 0.55 MPa (40 CFM at 80 psi) – typical of FDM machines |
| Year Introduced | ~2005 |
| Status | Discontinued |
| Condition | Used – Untested |
Key Features & Benefits
| Feature | Benefit |
|---|---|
| Soluble Support (SST) | Enables printing of complex, moving, and internal cavity designs without manual support removal |
| Production-Grade Materials | ABSplus offers functional strength for load-bearing parts |
| Large Build Envelope | 10x10x12 inches suitable for sizable prototypes and production parts |
| Industrial Build Quality | Designed for reliability and continuous operation in production environments |
| Sealed Materials | Materials are delivered in sealed cartridges, ensuring consistent quality |
| Network Capable | Can be integrated into office and production networks for remote operation |
| Legacy Value | Important for maintaining existing Stratasys installations or producing parts with a specific legacy material |
Applications
-
Functional Prototyping: Creating parts for form, fit, and function testing
-
End-Use Parts: Production of small batches of custom parts for manufacturing
-
Jigs & Fixtures: Custom tooling for assembly lines and production
-
Aerospace & Defense: Functional prototypes and replacement parts
-
Medical Devices: Functional prototypes for device development
-
Education: Advanced manufacturing training
| Weight | 500 lbs |
|---|---|
| Dimensions | 48 × 40 × 80 in |
