SSEC SMT Tank I/O 110110180-G

Product Description

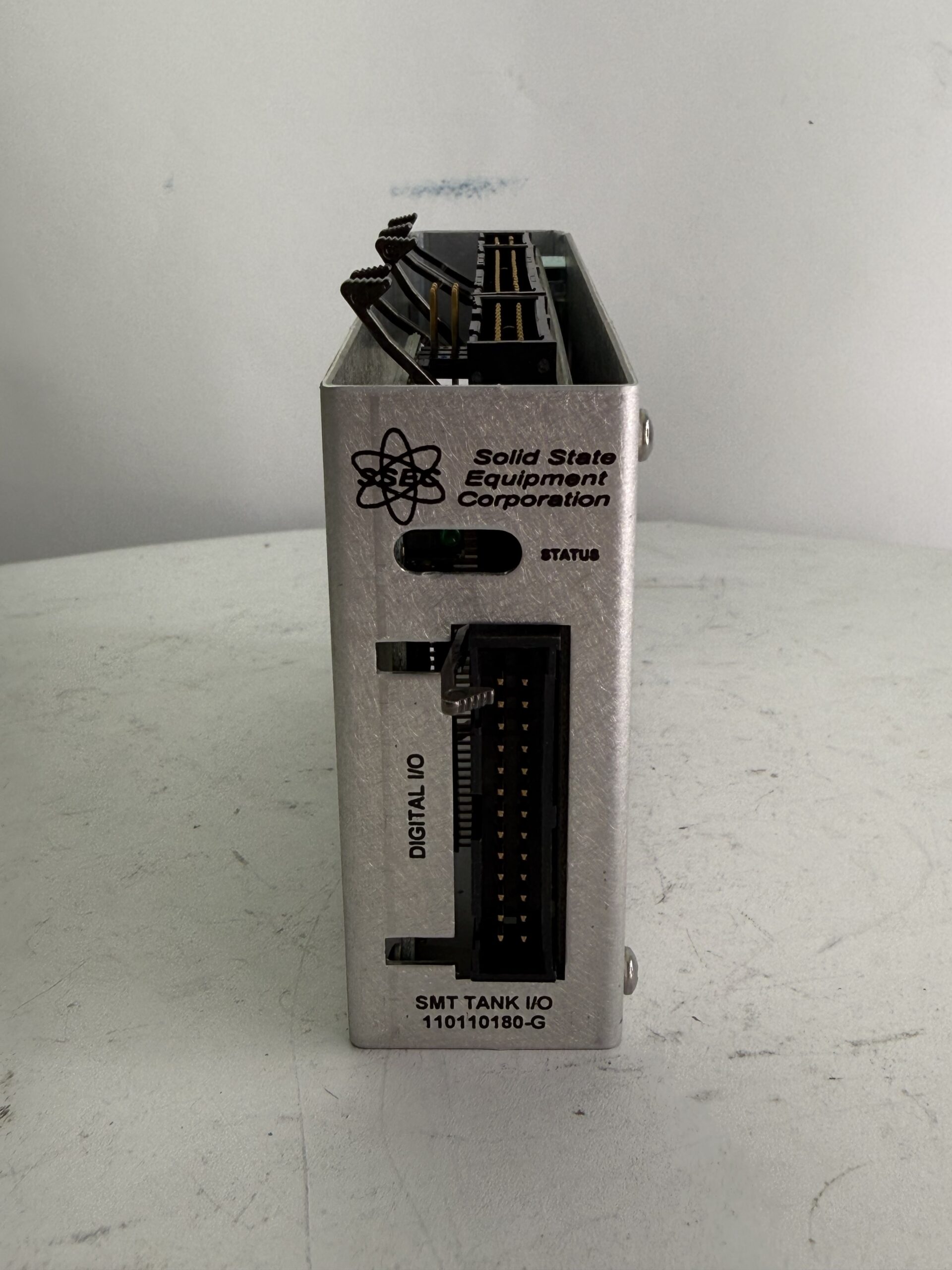

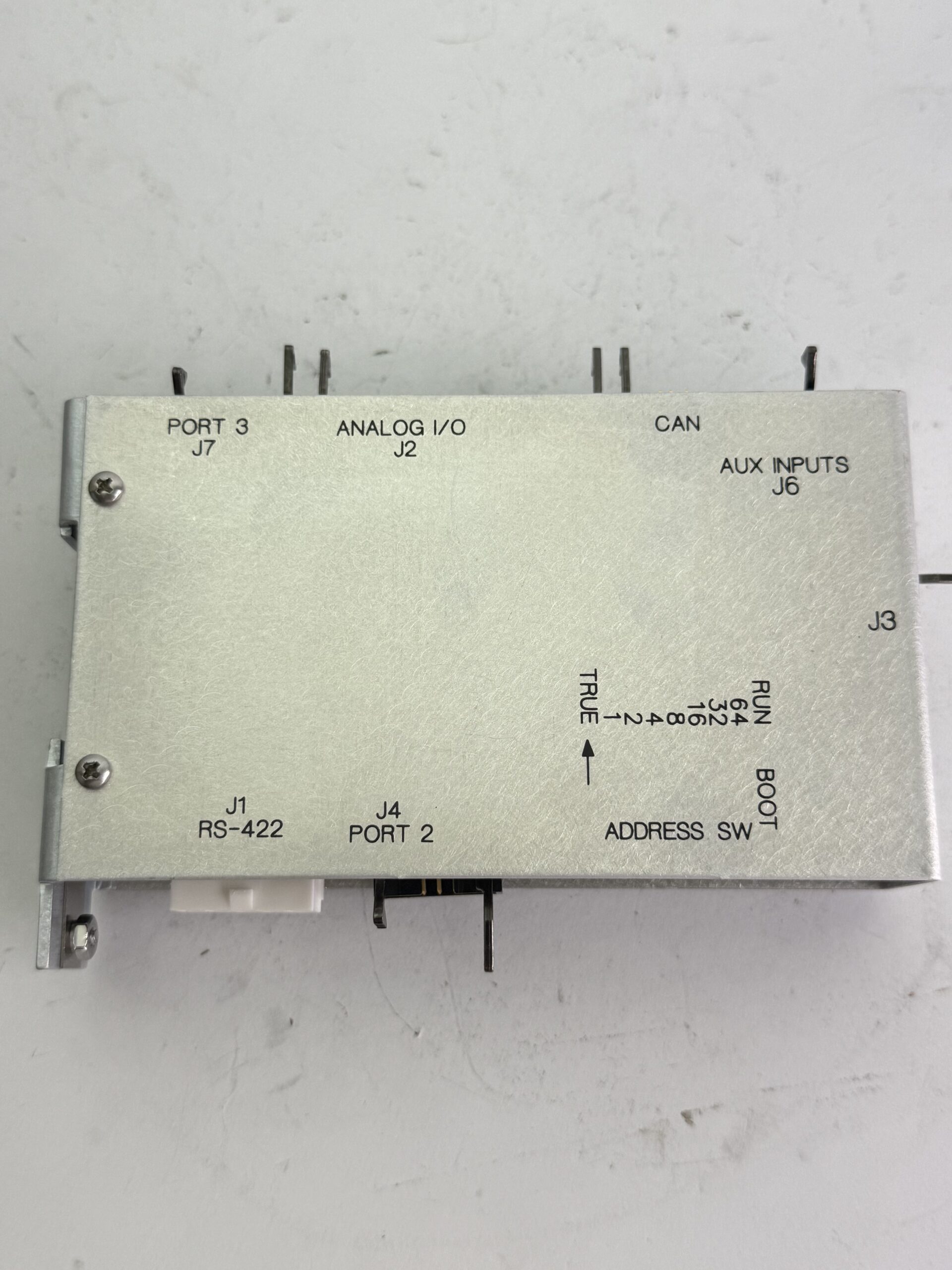

SSEC Solid State Equipment SMT Tank I/O Module 110110180-G – Vacuum Process Interface Board

A specialized Surface Mount Technology (SMT) I/O interface module from Solid State Equipment Corporation (SSEC), designated for monitoring and controlling peripheral devices within a semiconductor vacuum process “tank” or chamber. This board serves as a critical signal interface between the main tool controller and tank-mounted components like valves, pressure gauges, heaters, and sensors, providing isolation, conditioning, and protection.

 Key Specifications & Details:

• Manufacturer: Solid State Equipment Corporation (SSEC)

• Model/Part Number: SMT Tank I/O 110110180-G (Revision G)

• Primary Function: Signal interface and conditioning board for vacuum chamber I/O

• Typical Integration: Installed inside or near semiconductor process chambers (etch, CVD, PVD tools)

• I/O Channels: Likely includes digital inputs (sensor status, limit switches) and digital outputs (solenoid drivers, relay controls) with SMT construction

• Protections: Fused outputs, optical isolation, and transient protection for reliability in noisy industrial environments

• Connectors: High-density industrial headers or terminal blocks for field wiring

• Indicators: Status LEDs for power, channel activity, and fault conditions

 Potential Applications:

• Semiconductor Tool Repair: Direct replacement or donor board for SSEC-equipped vacuum process modules

• Custom Vacuum System Integration: Repurposing for laboratory thin-film deposition, etch, or surface science systems

• Industrial Automation: Generic protected I/O module for machine control or process monitoring applications

• Technical Training: Instructional tool for semiconductor equipment electronics or industrial I/O systems

• Component Salvage: Source of high-quality SMT relays, optocouplers, fuses, and industrial connectors
