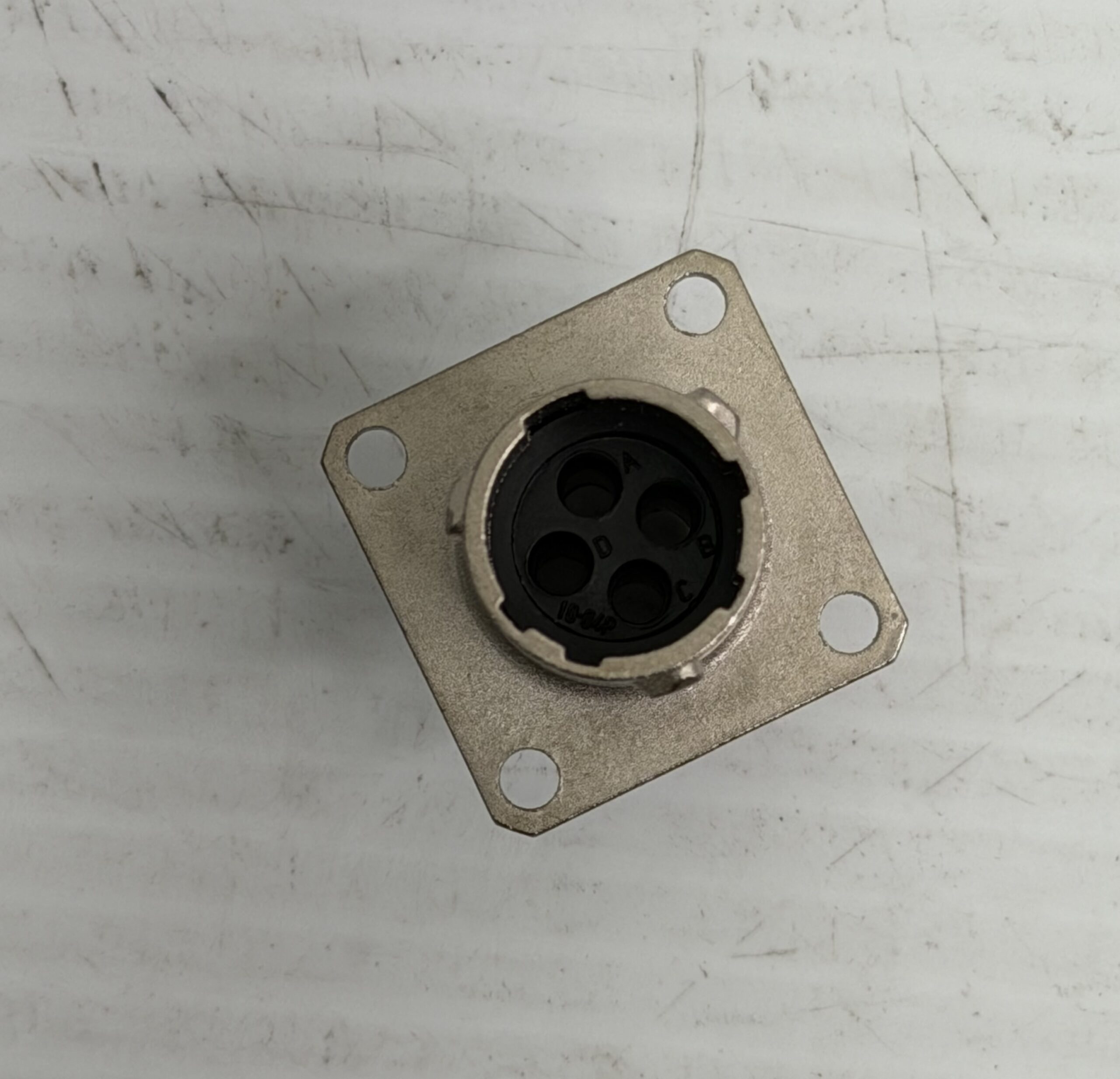

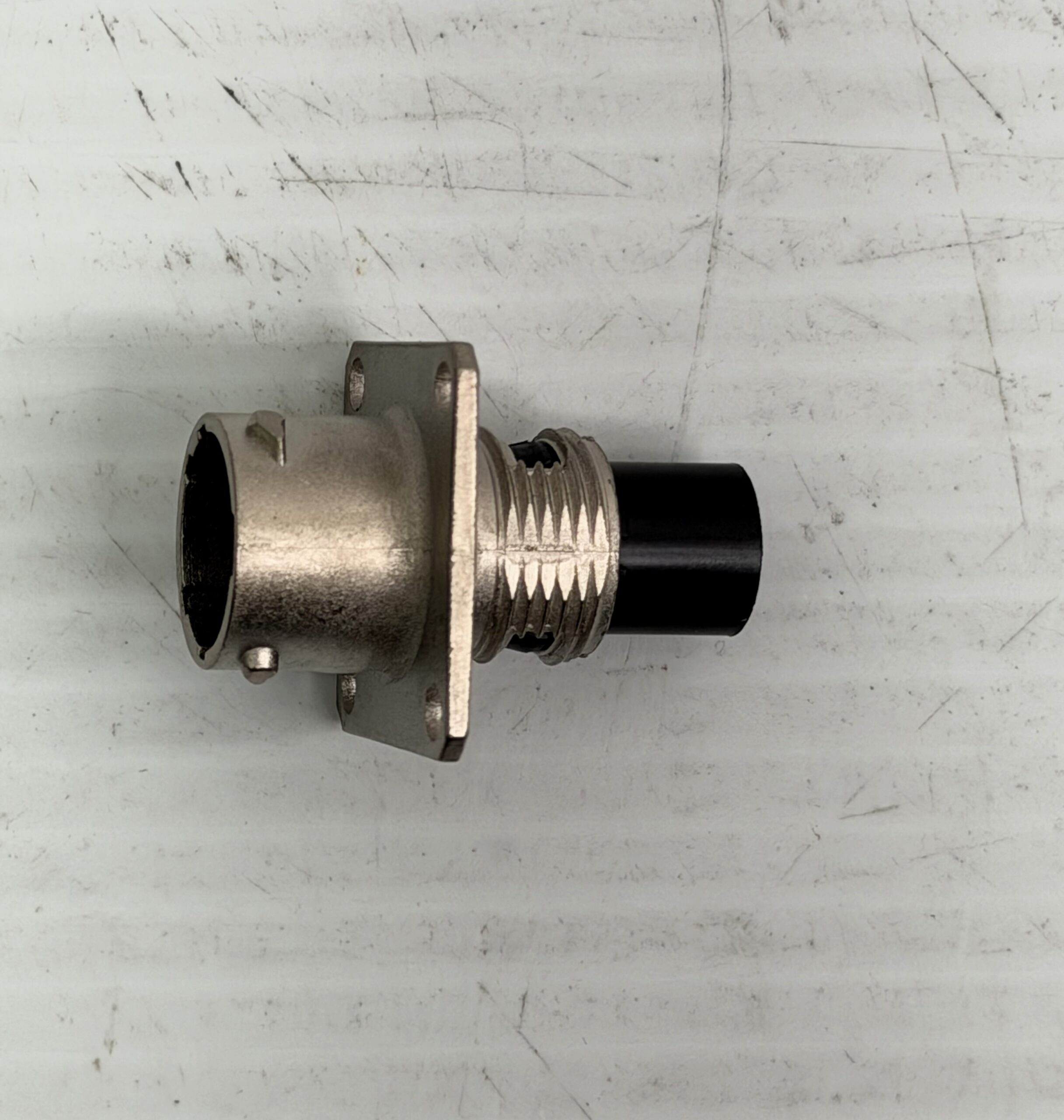

Souriau UT00104PH 4-Position Panel Mount Circular Receptacle Connector (PACK OF 3)
Original price was: $60.00.$30.00Current price is: $30.00.
Souriau UT00104PH 4-position panel mount circular connector.
1 in stock
CompareSouriau UT00104PH 4-Position Panel Mount Circular Receptacle Connector is a rugged industrial circular connector from the Trim Trio® UTO Series, designed for reliable power and signal connections in automation equipment, industrial machinery, transportation systems, robotics, outdoor equipment, and harsh-environment applications. Its sealed metal construction and bayonet locking mechanism provide dependable electrical connections where vibration, dust, and moisture resistance are essential.
CONDITION: This unit is untested and sold as-is. Cosmetic wear may be present from previous use. Crimp contacts, mating connector, sealing accessories, backshell, mounting hardware, and original packaging are included only if shown in the listing photos.
Key Specifications
| Specification | Details |
|---|---|
| Manufacturer | Souriau |
| Part Number | UT00104PH |
| Series | Trim Trio® UTO |
| Product Type | Circular Panel Mount Receptacle |
| Number of Positions | 4 |
| Contact Size | Size 16 (Contacts Sold Separately) |
| Mounting Style | Square Flange Panel Mount |
| Coupling Style | Bayonet Lock |
| Shell Size | 10 |
| Contact Type | Crimp |
| Shell Material | Zinc Alloy |
| Shell Finish | Nickel |
| Environmental Rating | IP67 |
| Voltage Rating | 250 VAC |
| Operating Temperature | -40°C to +105°C |
| Weight | Approx. 12.4 g |
| Weight | 1 lbs |
|---|---|
| Dimensions | 9 × 7 × 1 in |
