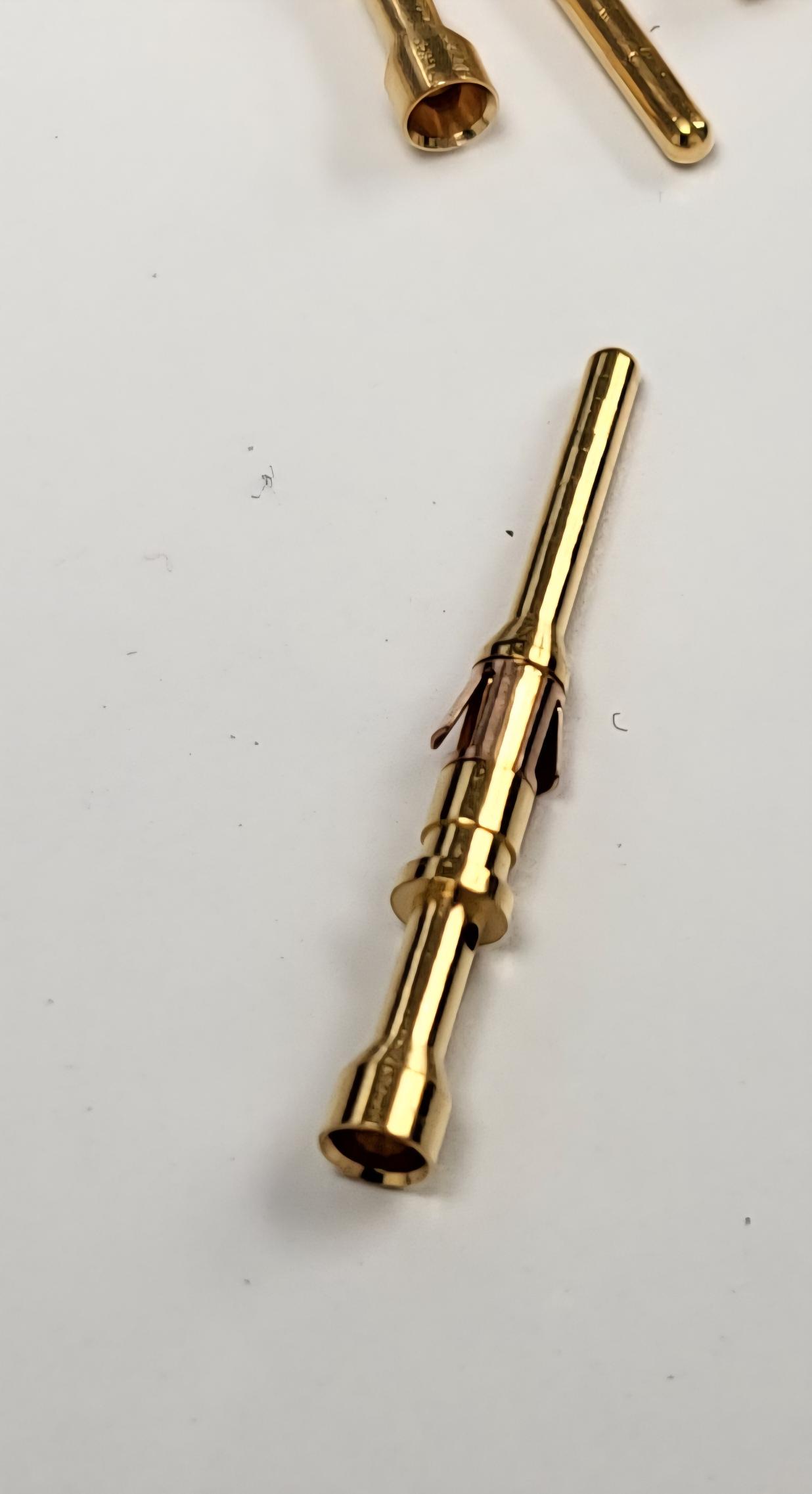

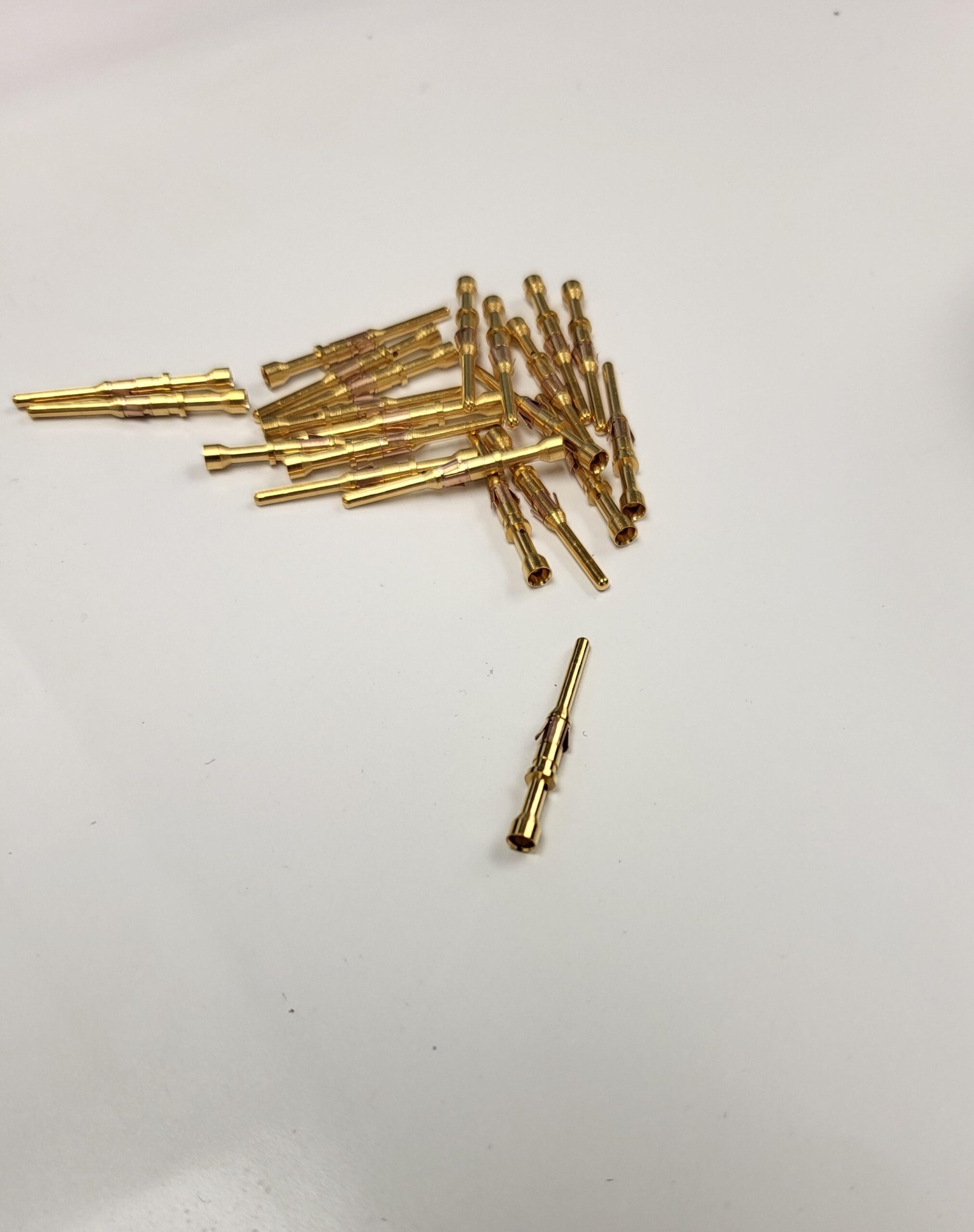

Souriau Crimp Pins RM20M12D28 (Lot of 22)

Souriau Crimp Pins RM20M12D28

The Souriau RM20M12D28 is a precision-machined, size 16 male crimp pin contact designed for high-performance applications within the Souriau Trim Trio® connector series. Engineered for reliability and durability, this contact is suitable for various industrial and harsh environment applications.RS Components+4Newark Electronics+4Newark Electronics+4

🔧 Product Overview

• Manufacturer: Souriau-Sunbank by Eaton

• Part Number: RM20M12D28

• Series: Trim Trio® RM Series

• Contact Type: Pin (Male)

• Contact Size: 16

• Termination Method: Crimp

• Wire Gauge Compatibility: 22–20 AWG

• Contact Material: High-conductivity copper alloy

• Contact Plating: Gold (0.4μm thickness)

• Current Rating: Up to 15 A (per NFF61030)

• Contact Resistance: ≤ 3 mΩ

• Insertion Force: ≤ 3.5 N

• Withdrawal Force: ≥ 0.55 N

• Retention Force in Connector: ≥ 110 N

• Voltage Rating: 230 VDC

• RoHS Compliance: Yes

• SVHC (Substances of Very High Concern): Contains lead
