Sony AIT Autoloader Unit TSL-SA500C

Sony AIT Autoloader Unit TSL-SA500C

This unit has not been tested.  It has been powered up.  This Unit came from a working environment.

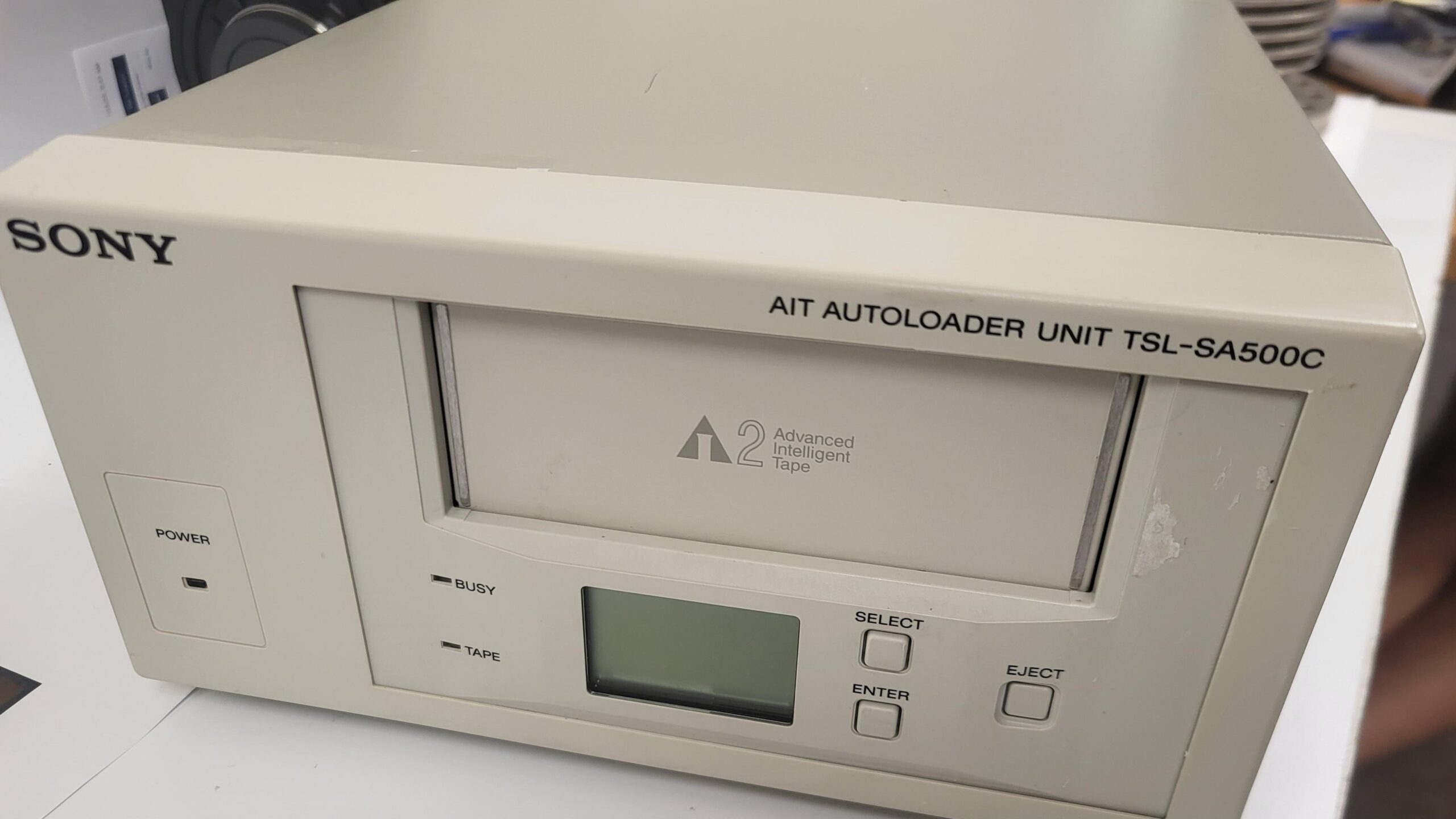

The Sony TSL‑SA500C is an AIT‑2 tape autoloader featuring a compact 2-slot magazine system designed for automated backup storage.

🔧 Key Features

• Built around Sony’s AIT‑2 format, using the SDX‑500C drive mechanism to deliver high reliability and performance with Active Head Cleaning built in

• Sustained transfer rates of up to 12 MB/s (compressed) (~6 MB/s native), significantly improving backup throughput

• Supports up to 520 GB compressed capacity (4 cartridges at ~130 GB each, 2.6:1 compression) .

• 🔌 Interface & Compatibility

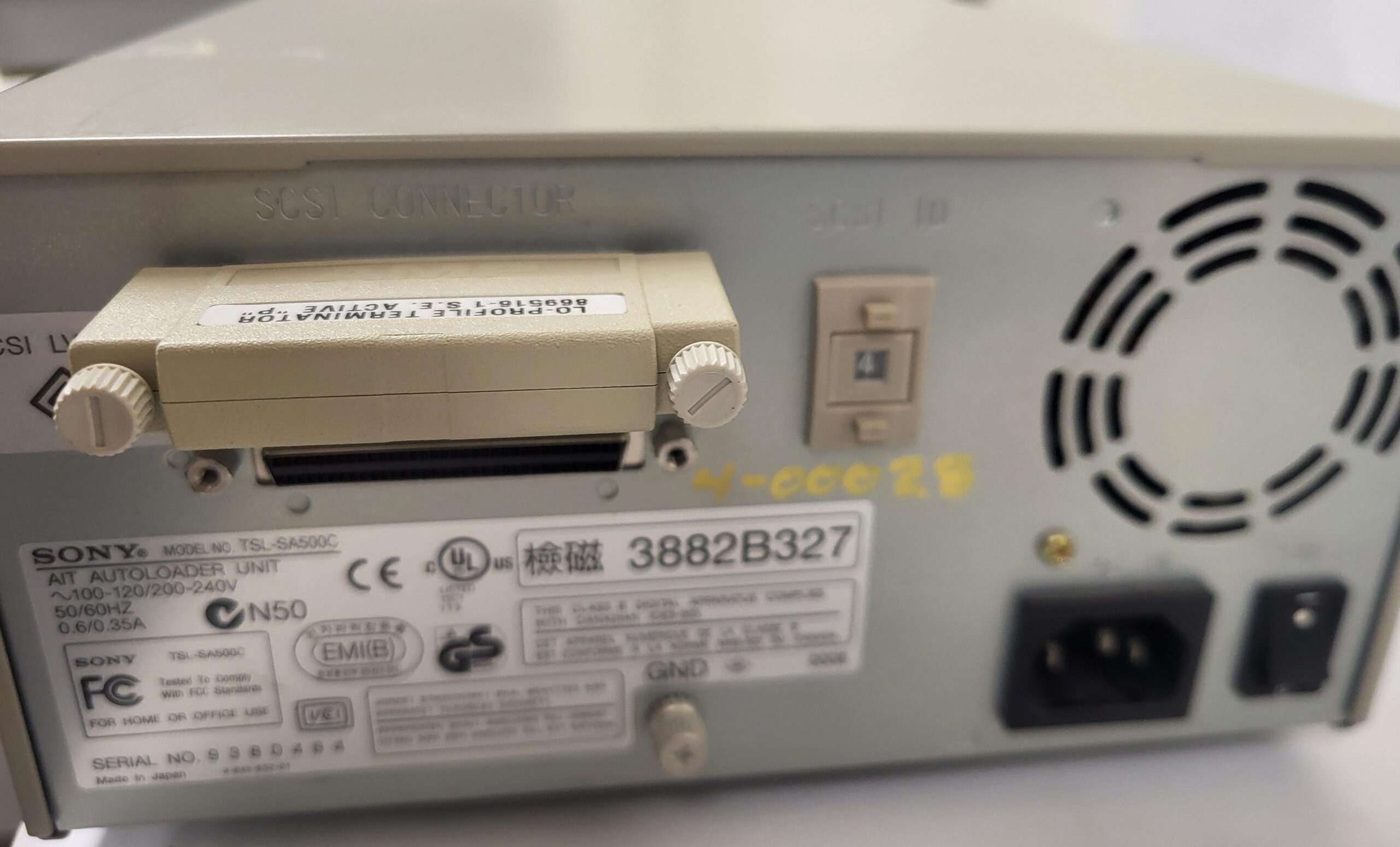

  • Connects via Wide Ultra SCSI, supporting both Single-Ended and Low Voltage Differential (LVD) interfaces for broad server compatibility .

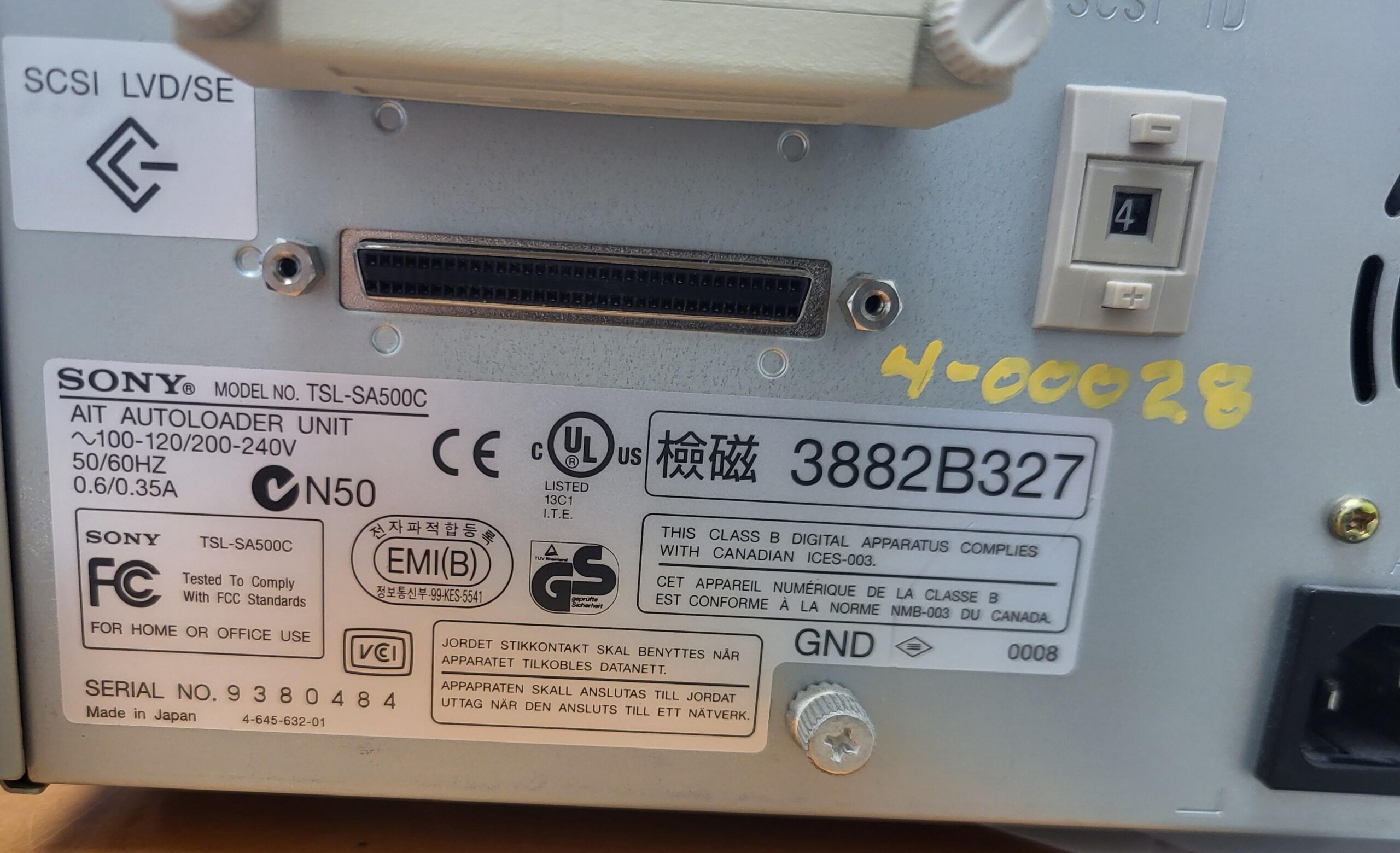

  • Operates on standard AC power: 100–120 VAC or 220–240 VAC with auto-ranging (0.6/0.35 A draw) and ~30 W typical consumption
