Sokkia LP30 Level Planer

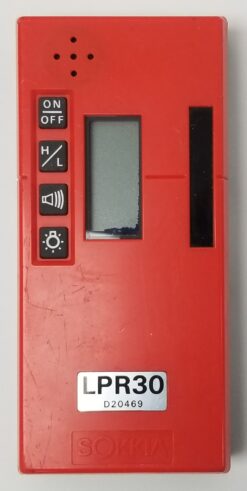

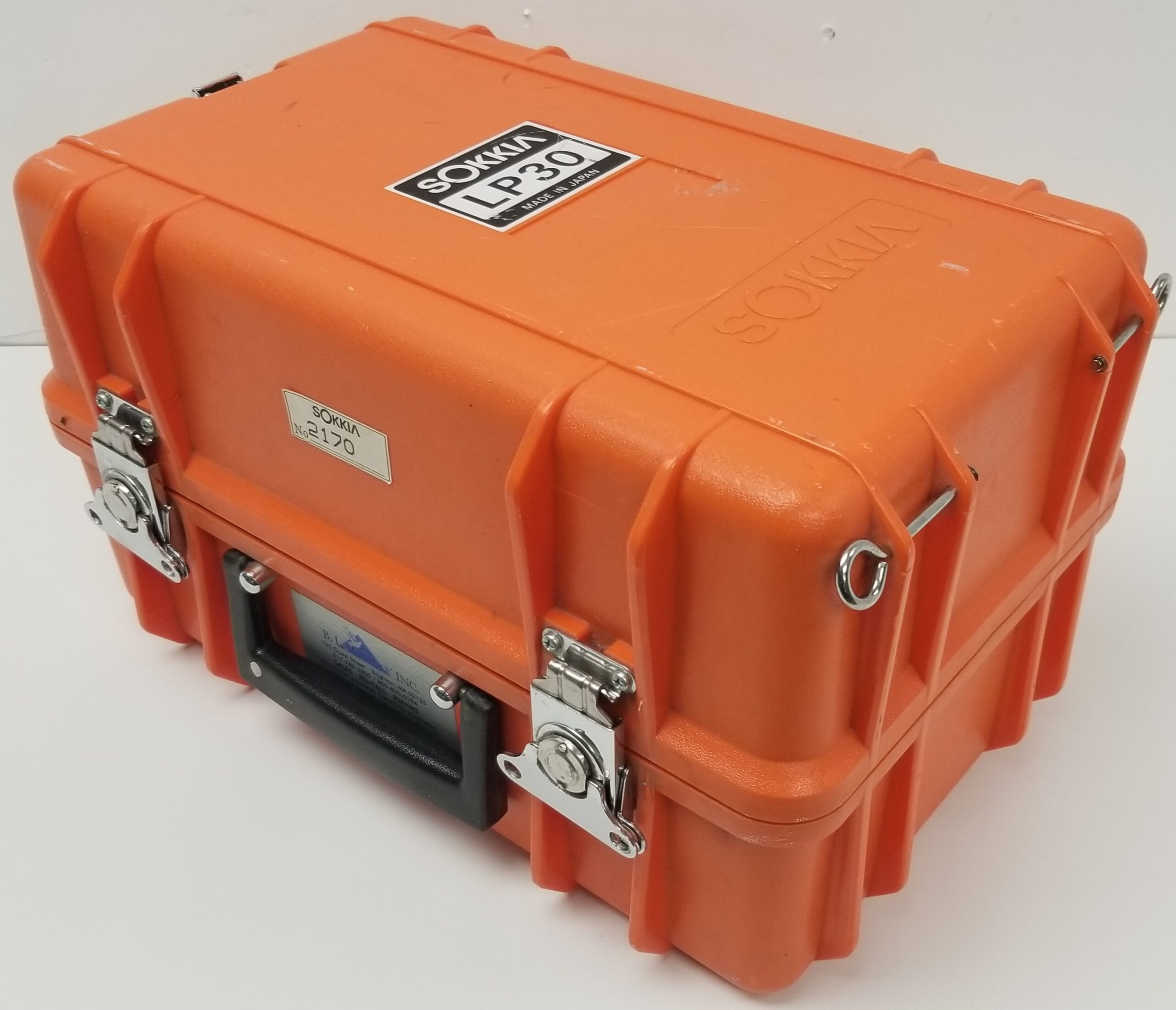

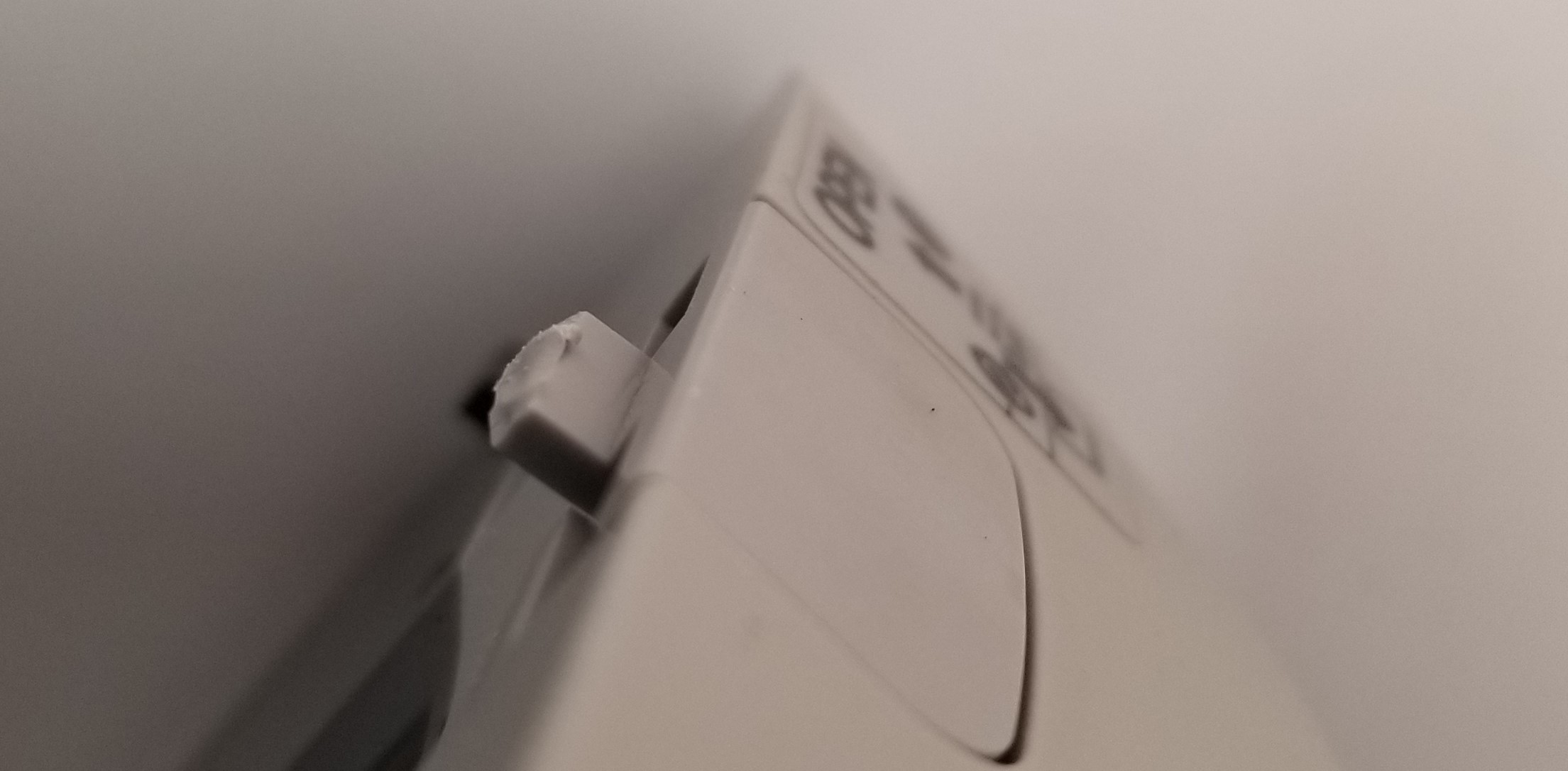

Sokkia LP30 Level Planer. Units (main and remote) power on and function O.K. Main unit has had the triple leveling mounts repaired by previous user and battery holder latch is broken off (see gallery images). Unit comes with hard case, some mounts as pictured and manual. Offering as PARTS/REPAIR.

The Sokkia LP30 Level Planer is a high-precision laser leveling instrument designed to enhance productivity in both indoor and outdoor applications. It projects a consistent horizontal laser plane, facilitating accurate leveling and alignment tasks across various construction and engineering projects.

Key Features:

• High Accuracy: The LP30 offers an accuracy of ±10 arc seconds, translating to ±1.5mm at 30 meters (±1/16 inch at 100 feet), ensuring precise measurements for critical tasks.

• Extended Range: With a working radius of up to 300 meters (1000 feet) and a diameter of 600 meters (2000 feet), the LP30 covers extensive areas, reducing the need for frequent repositioning.

• Dependable Compensator: Equipped with a precision pendulum compensator activated by gravity, the LP30 maintains horizontal accuracy unaffected by temperature variations. Its air damping system ensures laser beam stability, even in environments subject to vibrations.

• Robust Construction: The LP30 features a fully enclosed rotor assembly within a reinforced glass housing, providing protection against water and dust. It complies with IPX4 standards, ensuring reliable performance even when exposed to splashes from any direction.

• Versatile Power Options: The device operates on four D (R20) size batteries, offering up to 90 hours of continuous use. Alternatively, it can utilize a rechargeable Ni-Cd battery (BDC39A) for up to 40 hours of operation. An optional AC adapter (EDC79 with EDC74) allows for AC power usage ranging from 100V to 240V.

Applications:

• Construction: Ideal for tasks such as site grading, foundation laying, and formwork alignment, ensuring structures are level and true.

• Civil Engineering: Assists in infrastructure projects like road construction, drainage planning, and pipeline installation by providing accurate elevation references.

• Interior Finishing: Facilitates ceiling installations, wall alignments, and cabinetry setups, ensuring a high level of finish and precision.

Specifications:

• Accuracy: ±10 arc seconds (±1.5mm at 30m / ±1/16 in. at 100 ft.)

• Range: 300m (1000 ft.) radius; 600m (2000 ft.) diameter

• Power Supply: Four D (R20) size batteries or rechargeable Ni-Cd battery BDC39A

• Operating Time: 90 hours with alkaline batteries; 40 hours with Ni-Cd battery

• Water Resistance: Complies with IPX4 standards

The Sokkia LP30 Level Planer is engineered to deliver reliable and precise leveling solutions, making it an indispensable tool for professionals in construction, civil engineering, and interior finishing sectors.
