Sigma 1×1 inch translation stage – Mitutoyo
$300.00

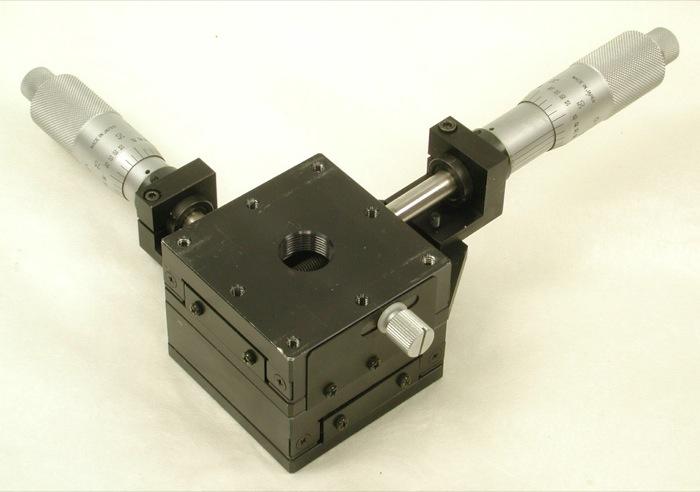

This is a compound XY translation stage manufactured by Sigma Koki (Tokyo, Japan). The stage table dimensions are 60mm square, with a 50mm M4 square bolt pattern face-centered on the top. The combined height of the two stages is 49.4mm. Travel range of the stage is 25mm. The upper axis can be clamped � the lower axis has provision for a clamp screw, but it is not provided.
The stage is equipped with a pair of Mitutoyo differential micrometer spindles. These spindles have a total range of travel of only 0.050 inches, with a resolution of 0.000005 inches.
Condition of the stage is excellent � near mint
Location MB 110
Photo set 791.
***MPN
***OEM Sigma Koki
***SKU*** DP357
1 in stock
CompareThis is a compound XY translation stage manufactured by Sigma Koki (Tokyo, Japan). The stage table dimensions are 60mm square, with a 50mm M4 square bolt pattern face-centered on the top. The combined height of the two stages is 49.4mm. Travel range of the stage is 25mm. The upper axis can be clamped � the lower axis has provision for a clamp screw, but it is not provided.
The stage is equipped with a pair of Mitutoyo differential micrometer spindles. These spindles have a total range of travel of only 0.050 inches, with a resolution of 0.000005 inches.
Condition of the stage is excellent � near mint
Location MB 110
Photo set 791.
***MPN
***OEM Sigma Koki
***SKU*** DP357
| Weight | 3 lbs |
|---|---|
| Dimensions | 8 × 8 × 3 in |
