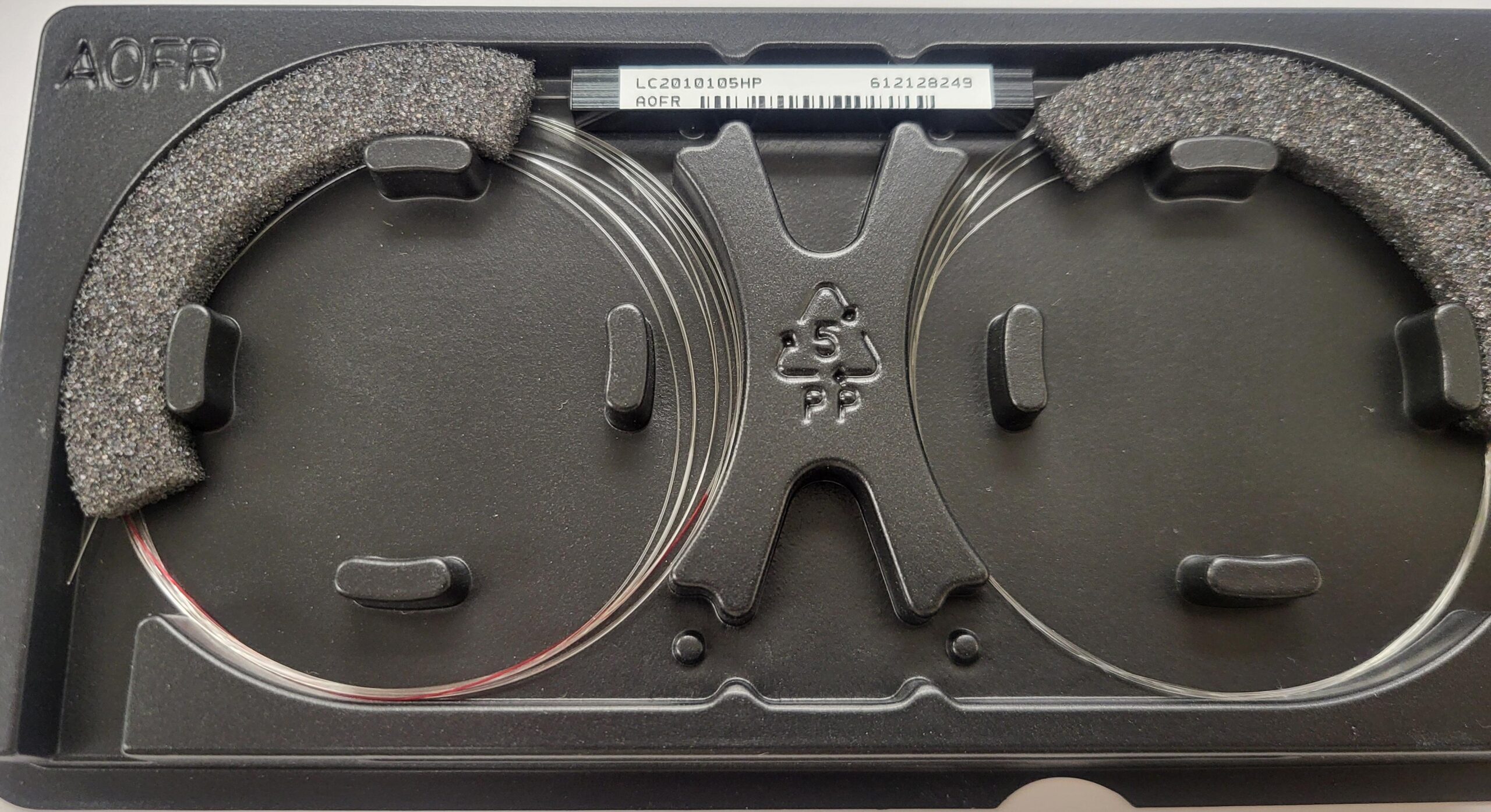

Shinkosa Optical Isolator ISO-SPIH-1064S-3W-1064BP10

The Shinkosa Optical Isolator ISO-SPIH-1064S-3W-1064BP10 is designed for fiber laser applications, specifically operating in the 1064 nm wavelength range. It features high power handling capabilities, with an input power rating of 3W. This isolator helps stabilize laser output by minimizing power fluctuations, frequency variations, and modulation bandwidth limitations. It also provides protection against laser diode (LD) damage by preventing back reflections.

Shinkosa’s isolators are optimized for single-mode and polarization-maintaining fibers, ensuring high isolation performance (>30 dB) and low insertion loss (<1.2 dB). The external dimensions of the unit are 60 × 22 × 17.7 mm, making it compact for integration into optical systems.
