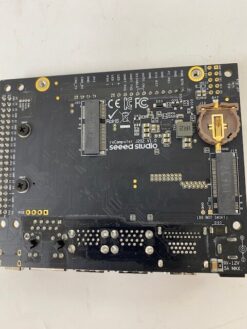

Seeed Studio reComputer J202 Carrier Base Board

Seeed Studio reComputer J202 Carrier Base Board

🧩 What It Is

• A compact carrier (base) board designed for NVIDIA Jetson Nano / Xavier NX / TX2 NX modules.

• Form factor and feature set closely mirror NVIDIA’s Xavier NX developer kit carrier, making it an easy drop-in upgrade or replacement

• 🔌 I/O & Connectivity

  Interface	Details
  USB Ports	4× USB 3.1 Type‑A (10 Gbps on Xavier NX, 5 Gbps on Nano/TX2 NX); 1× USB‑C (USB 2.0 device mode)
  Display Outputs	1× HDMI (up to 2.0), 1× DisplayPort; allows dual display setups
  Camera Support	2× MIPI CSI connectors for camera sensors
  Networking	1× Gigabit Ethernet (RJ45)
  Expansion Slots	– 1× M.2 Key E (for Wi‑Fi/BT module)
  – 1× M.2 Key M (for NVMe SSD)
  GPIO & headers	40‑pin “Raspberry Pi style” GPIO, I²C, I²S, CAN (for Xavier series), fan header, RTC battery connector, UART debug pins

  ---

  ⚙️ Power & Mechanical

  • Power input: 12 V ⎓ 5 A via barrel jack

  • Operating temp: 10 °C to 60 °C; typical for edge deployments

  • Dimensions: 100 mm × 80 mm (same as Jetson Xavier NX dev carrier)

  • Mounting: Desk or wall mountable configuration .
