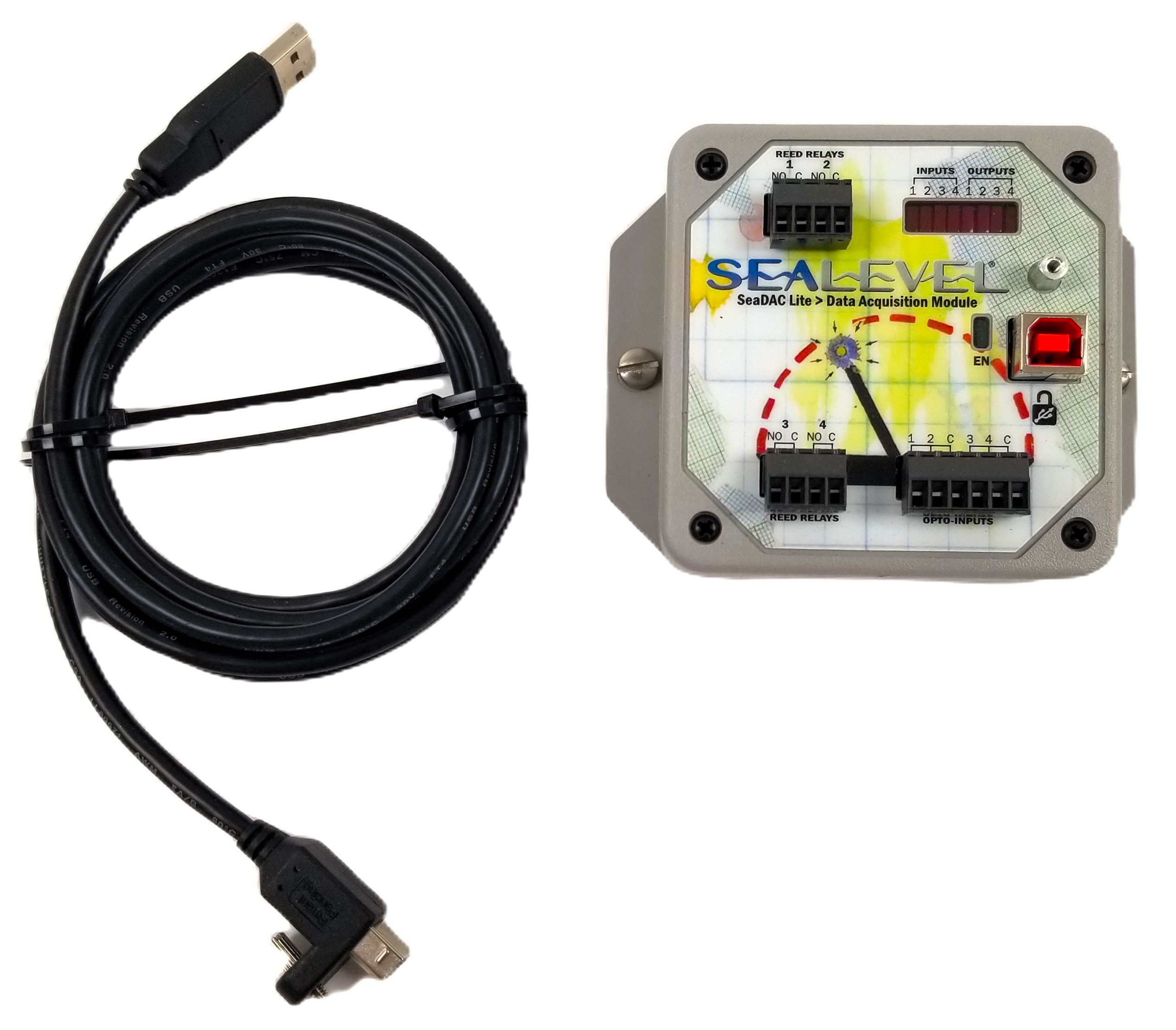

SeaLevel SeaDAC Lite 8111 Data Acquisition Module

SeaLevel SeaDAC Lite 8111 Data Acquisition Module. Very good condition. With special USB-A to USB-B cable, mini-ZEBRA connectors and mounting screws. No manual, software (if applicable) or other accessories. Purchaser responsible for proper installation and use. As shown.

Control and monitor four optically isolated inputs and four dry-contact Reed relay outputs via any USB connection with the 8111. Inputs can range from 5-30VDC and provide 3500VDC (2500VAC RMS) isolation to ground, while the Reed relays provide long-life switch closures well suited to low-current devices. Each Reed relay has a discrete common and each pair of inputs share a common. Status LEDS display I/O activity and field wiring is simplified via 3.5mm removable terminal blocks.
