Samsung M393B1K70CH0-CH9 8GB

Product Description

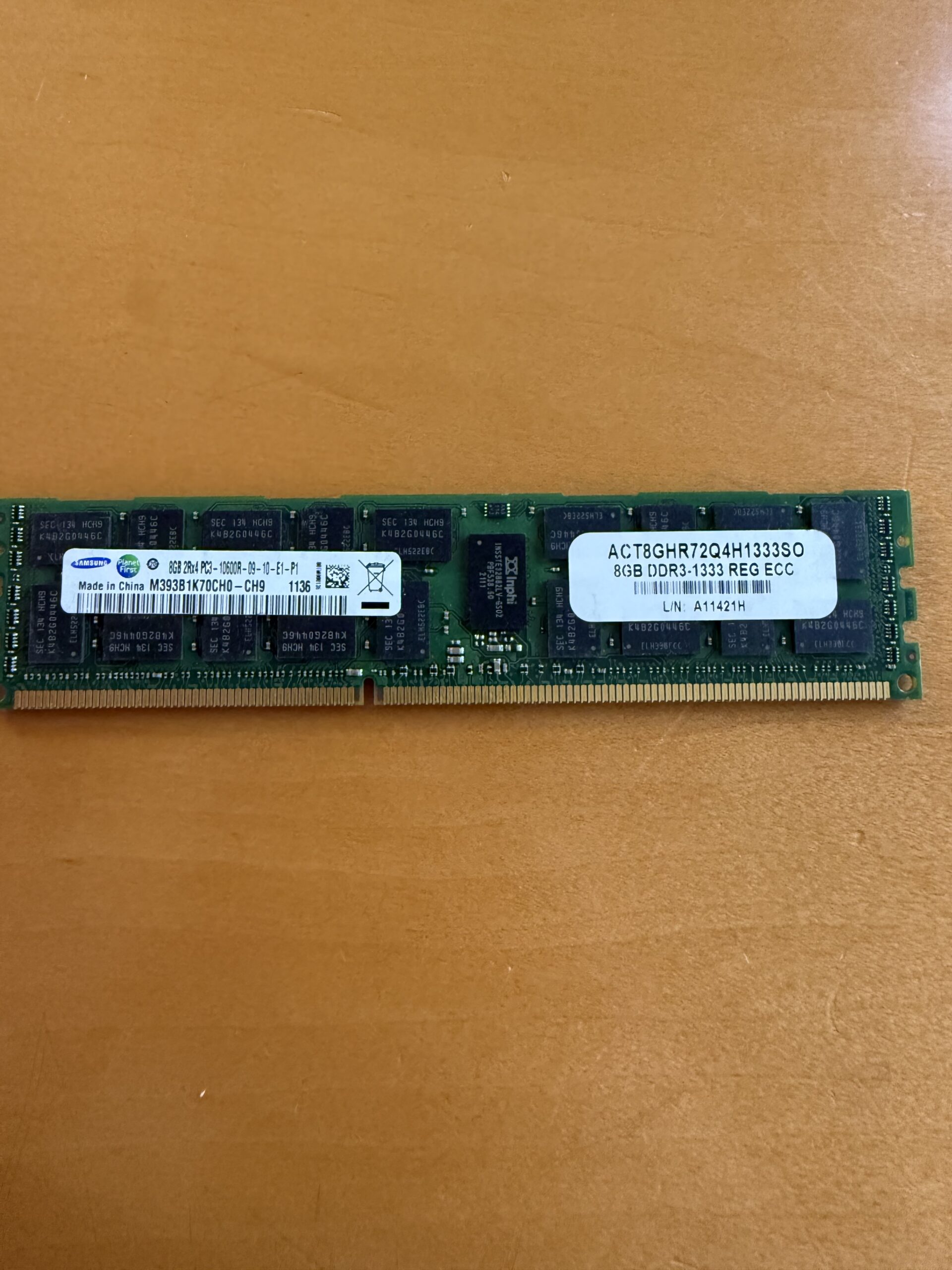

Samsung 8GB DDR3 ECC Registered RDIMM – 1Rx8 Organization

This Samsung M393B1K70CH0-CH9 is an 8GB DDR3 server memory module with ECC. As a 1Rx8 (Single Rank, x8) Registered RDIMM operating at 1333MHz, it serves as a versatile and widely compatible component for a broad range of legacy enterprise servers. Its single-rank design is often specified for optimal memory channel population in 1U and 2U systems.

Key Specifications:

• Capacity: 8GB

• Type: DDR3 SDRAM with ECC

• Speed: 1333 MHz (PC3-10600R)

• Voltage: 1.5V

• Module Type: 240-pin ECC Registered DIMM (RDIMM)

• Organization: 1Rx8 (Single Rank, x8)

• Part Number: M393B1K70CH0-CH9

Compatibility & Applications:

• Target Systems: Broadly compatible with many DDR3-era servers, including Dell PowerEdge R610/R710, HP ProLiant DL360 G6/G7, IBM System x3550 M3, and Supermicro X8/X9 platforms.

• Primary Use: Cost-effective repair, maintenance, or incremental upgrades for virtualization hosts, database servers, and application servers still on the DDR3 platform.

• Note: The 1Rx8 (x8) organization is one of the most common and offers excellent compatibility. It can typically be mixed with other x8-based modules (2Rx8) following the server manufacturer’s specific population guidelines.
