RS6 1 inch pillar post 6 inch

Product Description

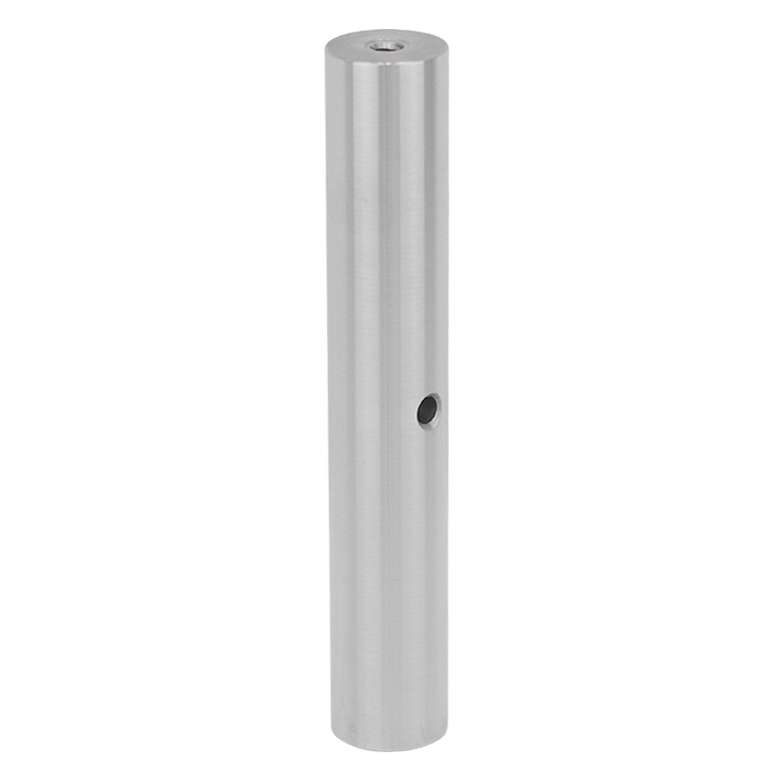

RS6 Ø1″ x 6″ Pillar Post (1/4″-20 Taps)

This extended-length pillar post provides substantial elevation for optical components while maintaining exceptional rigidity and alignment stability.

Key Features:

• Extended Reach: 6″ (152.4mm) vertical height

• Precision Ground: 6061-T6 aluminum with Type II anodization

• Standard Threading: 1/4″-20 taps on both ends

• Enhanced Stability: 1″ diameter reduces vibration

Technical Specifications:

• Material: Aircraft-grade aluminum

• Straightness Tolerance: <0.001″ (0.025mm) over full length

• Thread Depth: 0.4″ (10mm) per side

• Load Capacity: 15 lbs (6.8kg) vertical

Stability Recommendations:

✔ Use with 3″ or larger base plates for tall configurations
✔ Add support clamps for vibration-sensitive applications
✔ Pair with heavy-duty post holders (PH5 or equivalent)

Applications:

• Elevated laser beam paths

• Tall optical breadboard setups

• Industrial metrology systems

• Physics experiment rigs
