RS4P8E 1 inch pedestal post 4 inch

Product Description

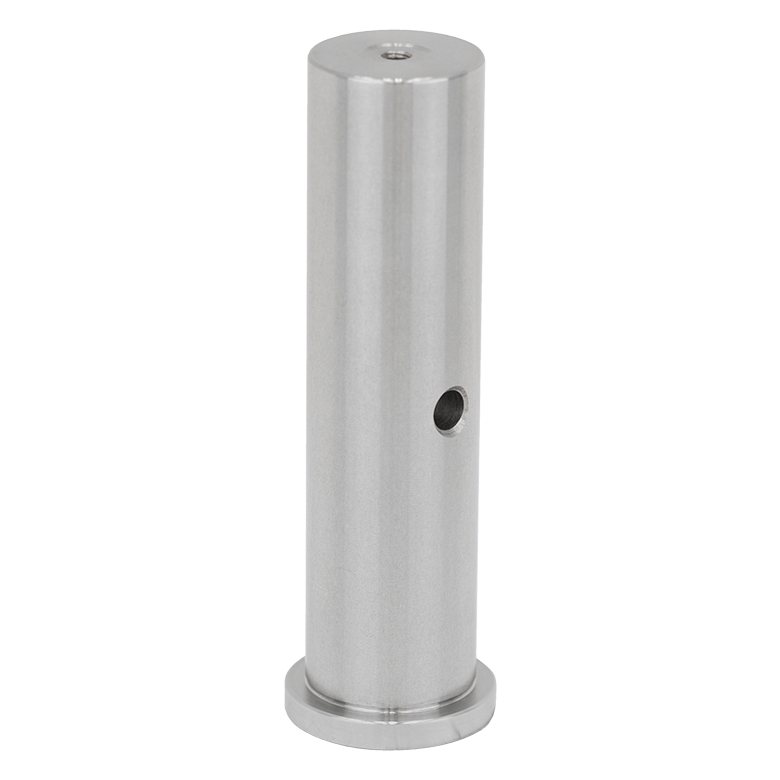

RS4P8E Ø1″ x 4″ Pedestal Pillar Post (8-32 Taps)

This mid-height pedestal post offers the ideal balance between stability and adjustability for precision optical mounting applications.

Key Features:

• Optimized Height: 4″ (101.6mm) for versatile positioning

• Precision Threading: 8-32 taps on both ends (top/bottom)

• Rigid Construction: 1″ (25.4mm) diameter 6061-T6 aluminum

• Enhanced Stability: Low center of gravity design

Technical Specifications:

• Material: Type III hard-anodized aluminum

• Surface Flatness: <0.0005″ (0.013mm)

• Thread Depth: 0.3″ (7.6mm) per side

• Load Capacity: 25 lbs (11.3kg) vertical

Recommended Pairings:

• SPW602 spanner wrench for secure installation

• PH4 post holders for angular adjustments

Applications:

• Laser system beam steering

• Optical table experiments

• Industrial sensor positioning

• Vibration-sensitive measurements
