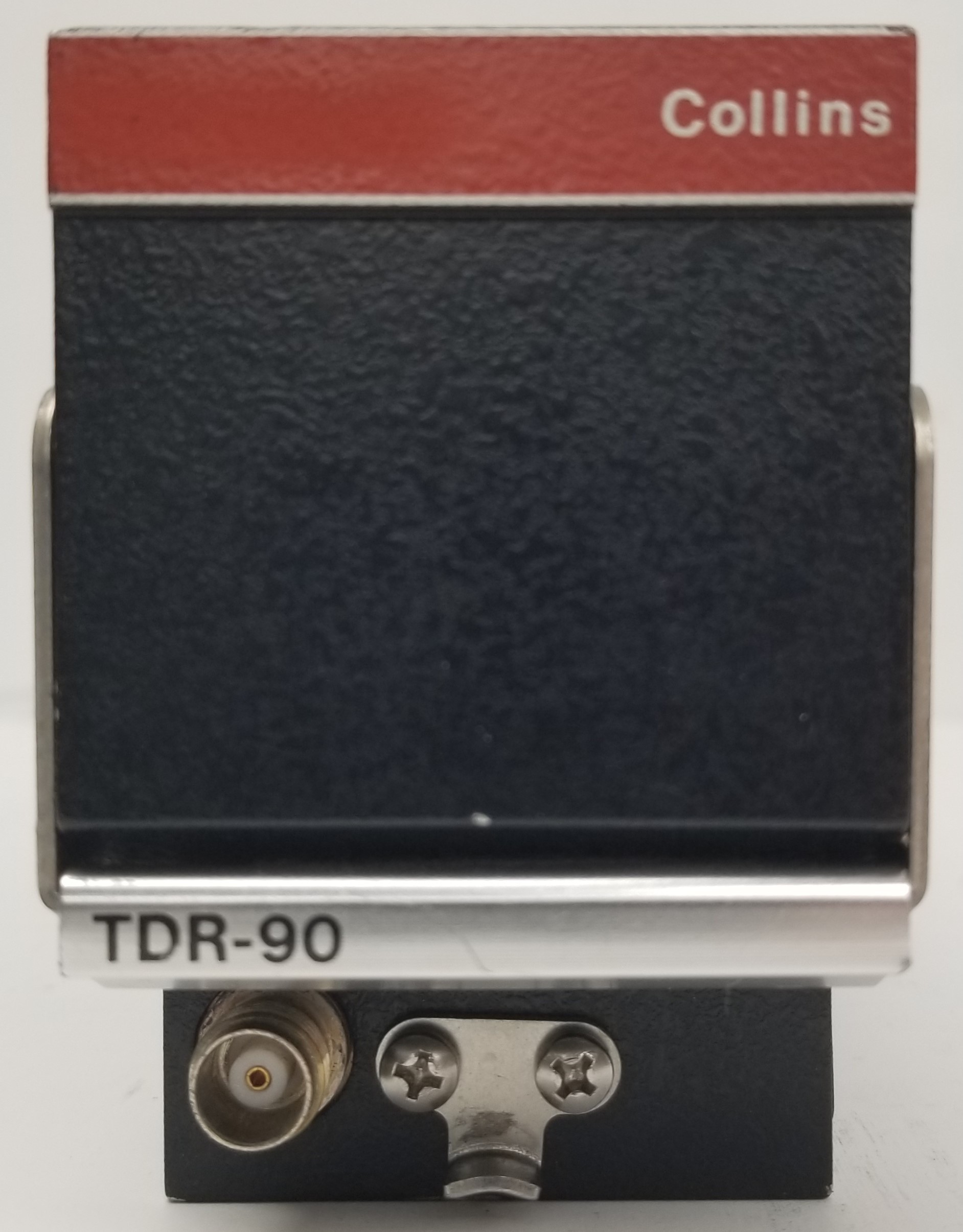

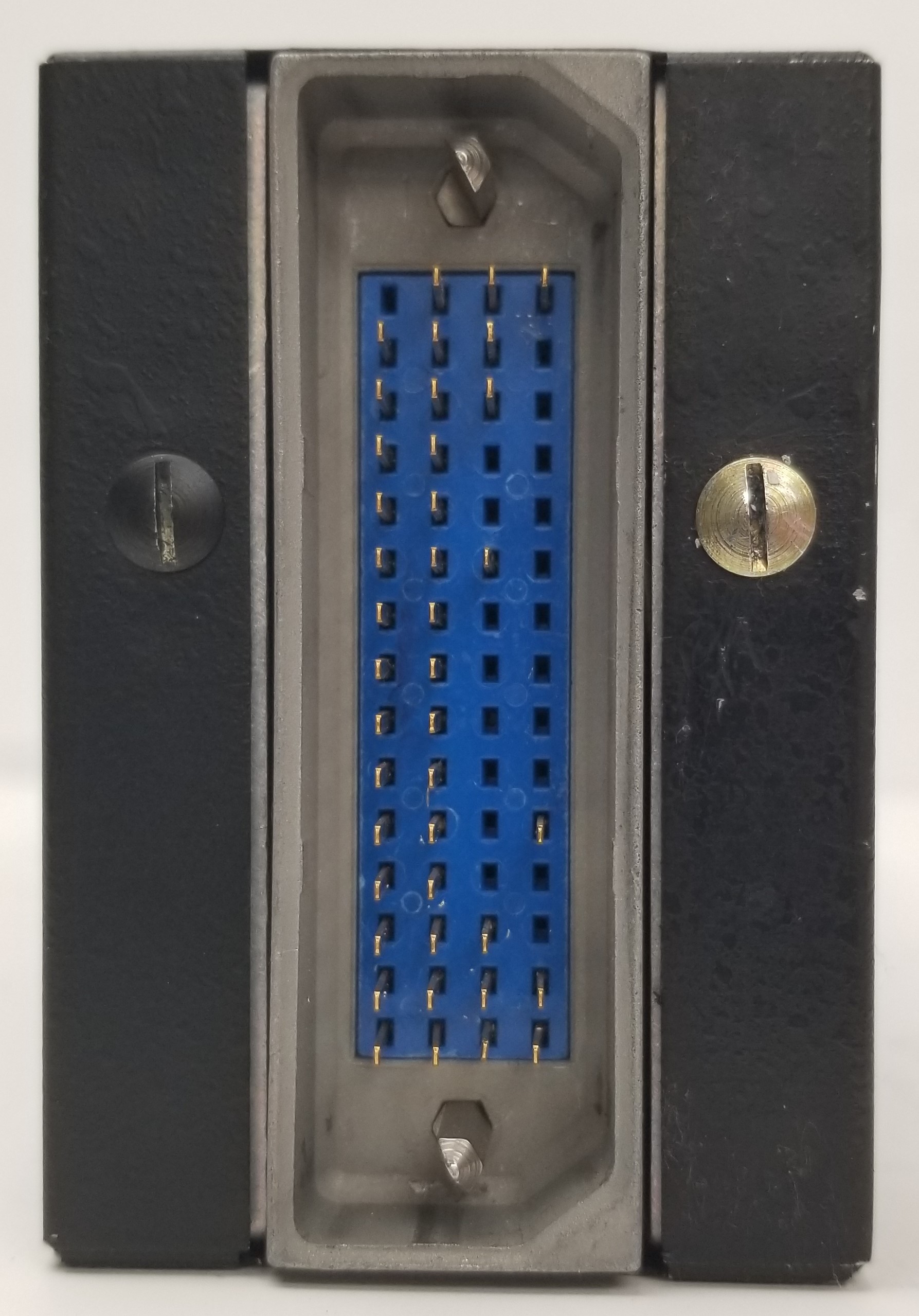

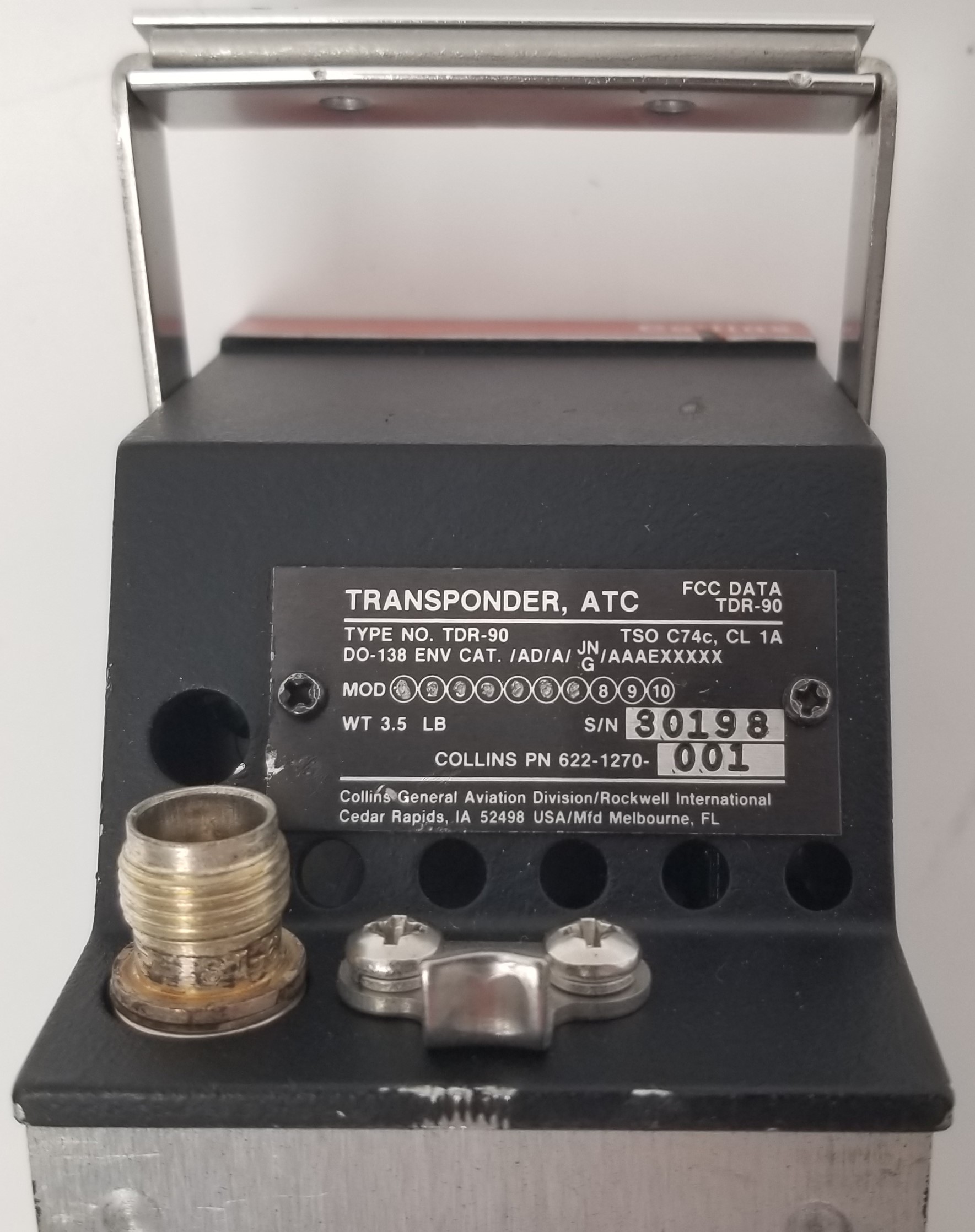

Rockwell Collins TDR-90 622-1270-001. Unit removed in operational condition. No manual, tray, cables or other accessories. As shown. Small dent in case (see gallery images). Purchaser responsible for any calibration and certification before use in an aircraft.
TDR-90
FEATURES
- ATC Transponder providing identification of aircraft on ground controller’s plan position indicator
- Provides Modes A and C operation when used with altitude digitizer
- Typically used with either CTL-90 digital control or 613L-3 analog control (available in single and dual controls)
- Can also be controlled with CTL-92 Proline II control when used with CAD-62 adapter
- Short low-profile design
- Lightweight
SPECIFICATIONS
| Dimensions: | 2.42″W x 3.5″H x 13.71″L | Weight: | 3.5 lbs. |
| FAA TSO: | C74b or C74c, Class 1A | FCC Rules: | Part 87 |
| RTCA: | DO-138 (Env. Cat /AD/A/JNG/AAAEXXXXX | Temperature: | -54 to +55 C (continuous); +71C for 30 minutes |
| Altitude: | 45000 ft. max. (operation) | Shock: | 6g, 6 positions (11 +-2 ms duration) for operation |
| Power Source: | 27.5 V dc +-20%, 1.9 A max at 1% duty cycle | Power Requirements: | Standby: 25W; Operation at 1% transmitter duty factor: 40W |
| Peak Pulse Power: | 250 to 400 watts (325 nominal) | Sensitivity: | -72 to -80 dBm |
| Bandwidth: | 6 mHz at 3 dB down, 50 MHz at 60 dB down | Frequency Stability: | +-3 mHz |
| Part Number | ATC Transponder Description: |
|---|---|
| 622-1270-001 | see features above |
