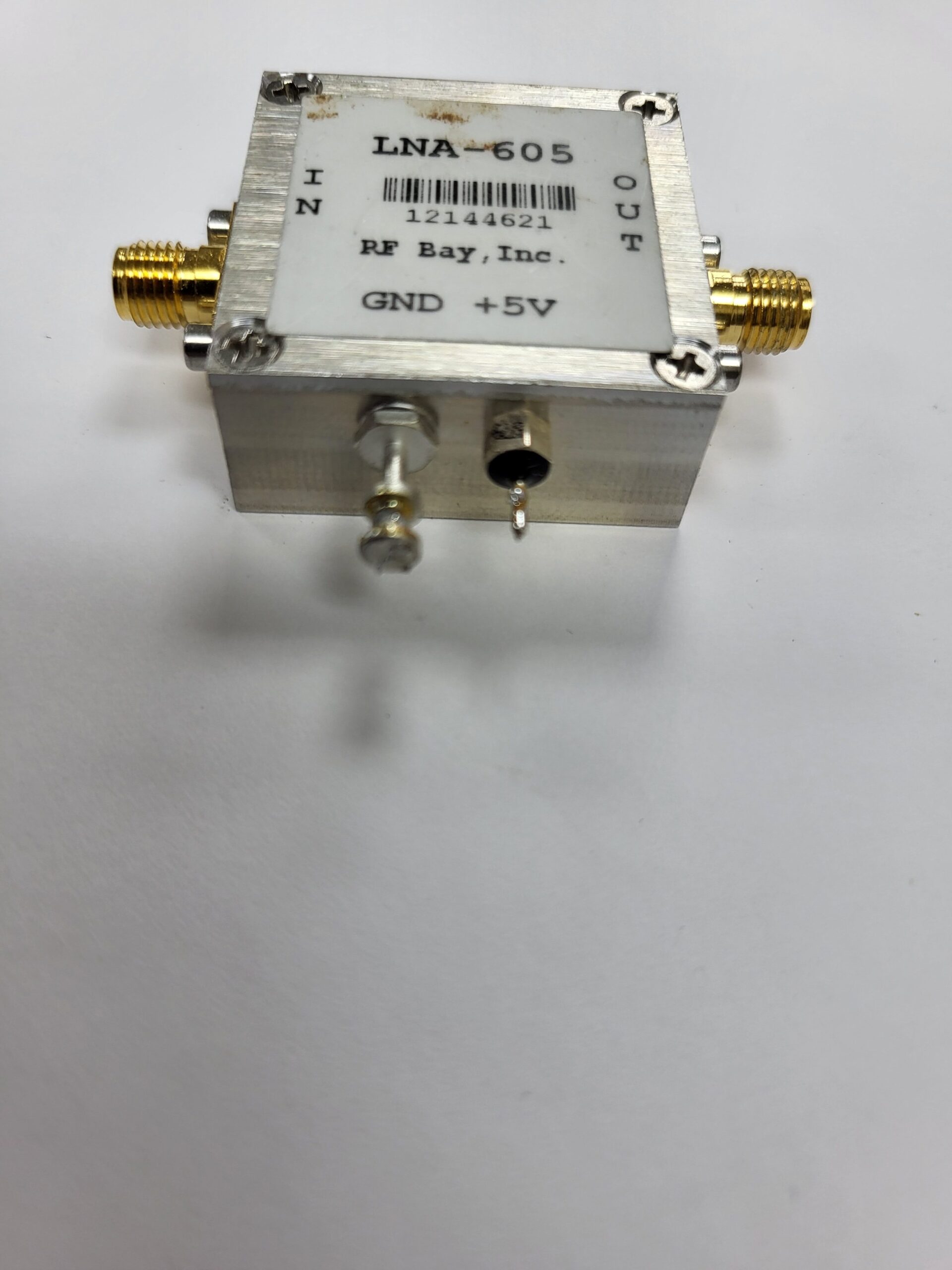

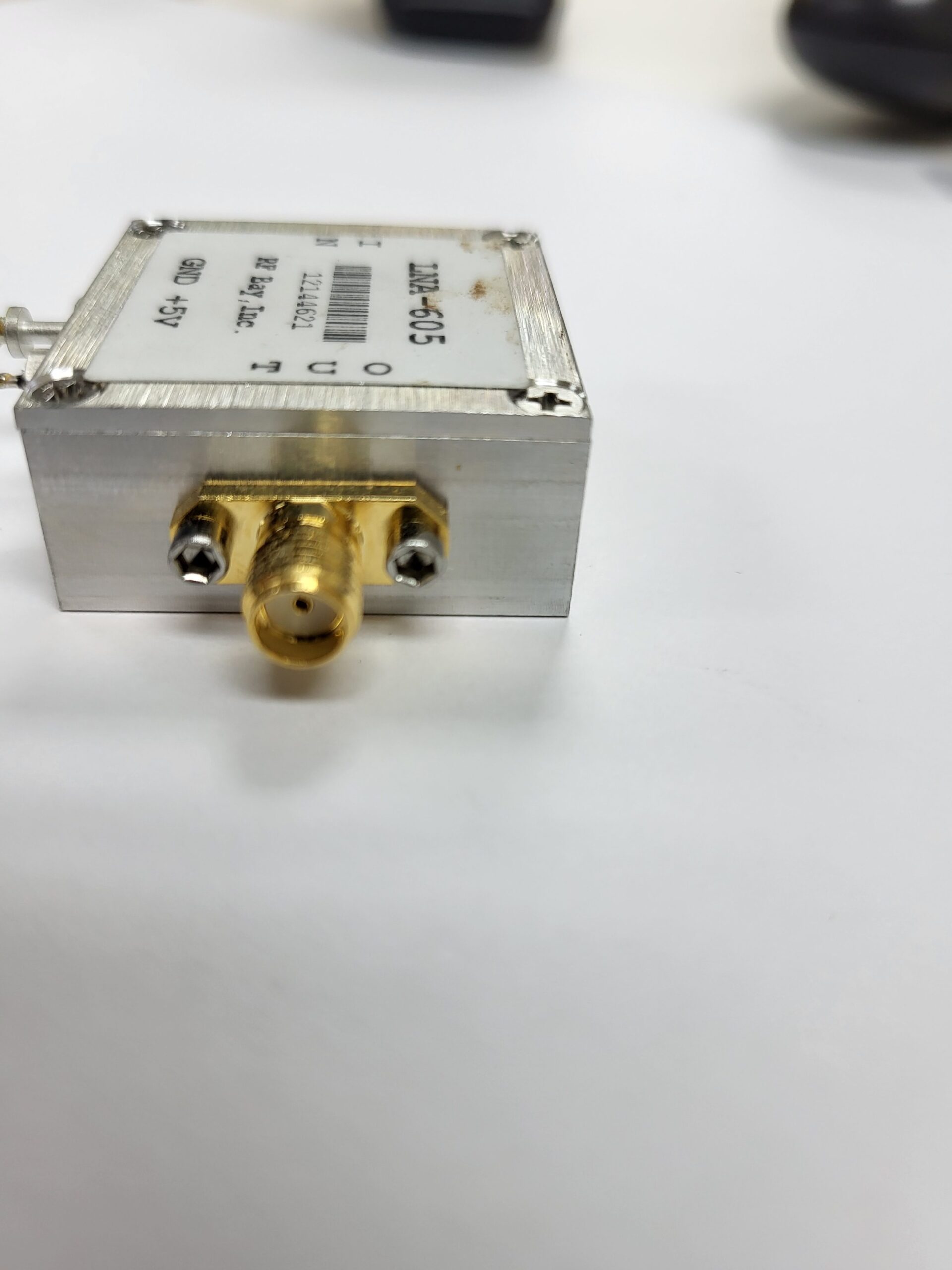

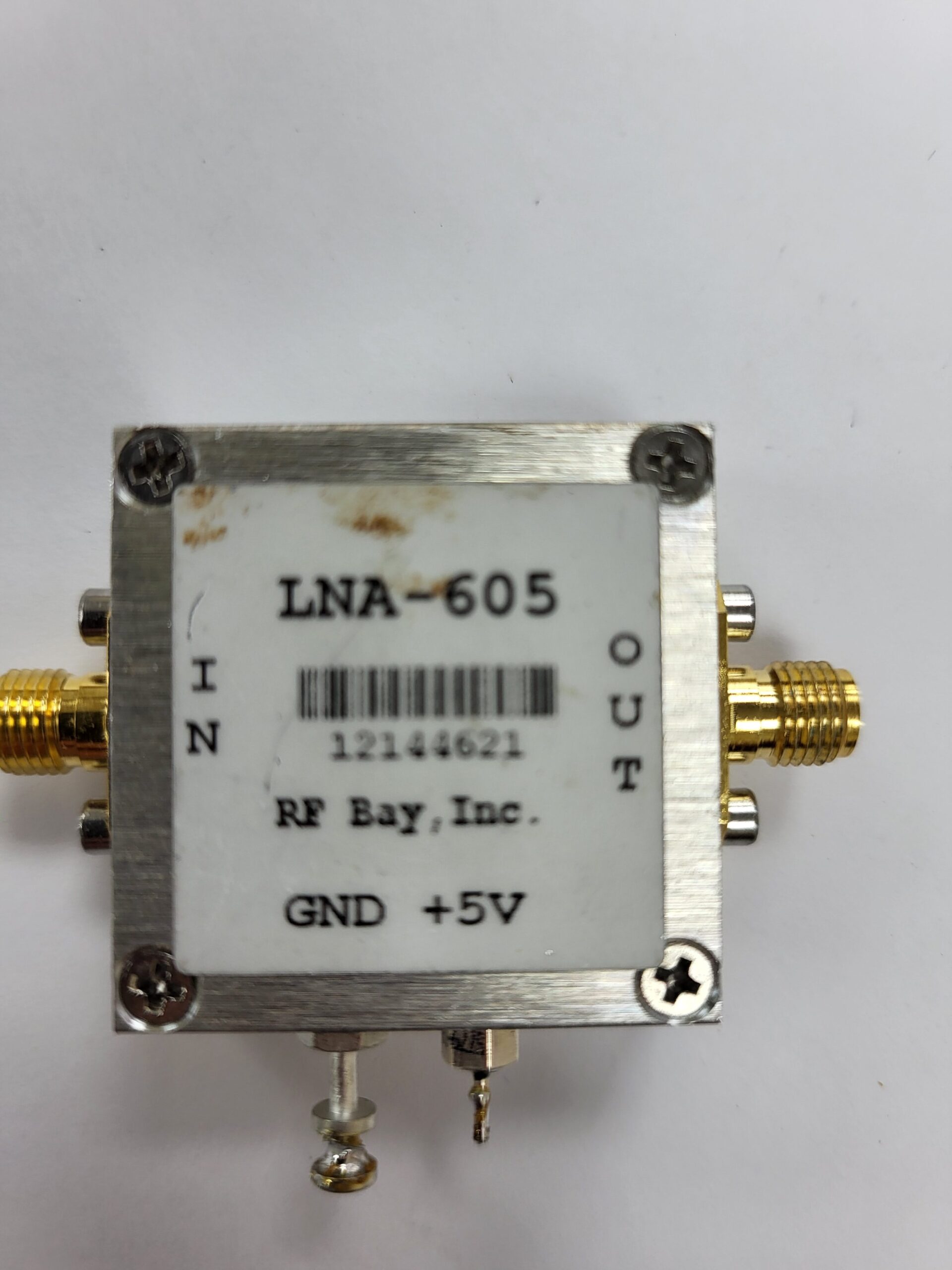

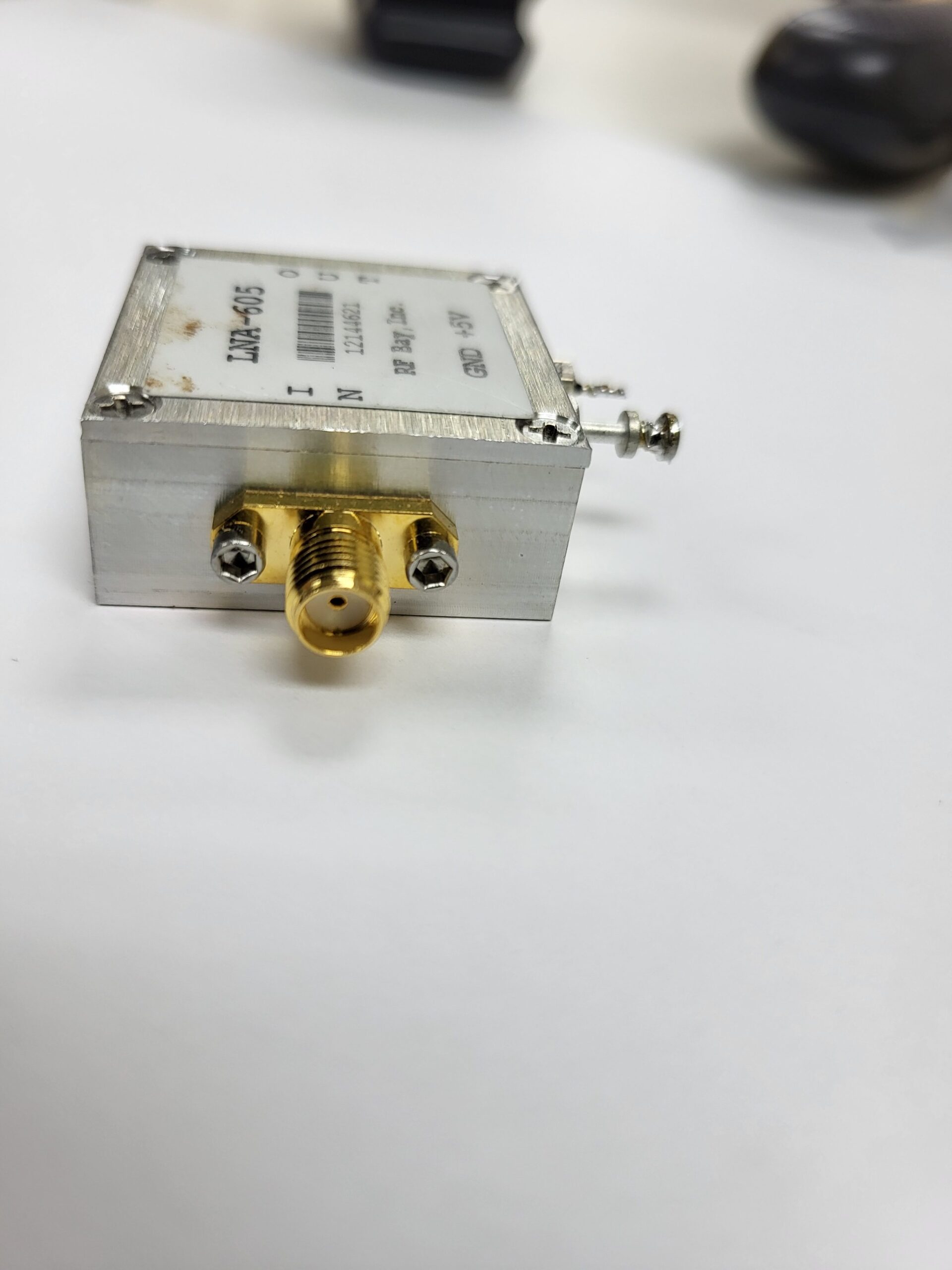

RF Bay LNA 605 Low Noise Amplifier

LNA 605 10-600 MHz Low Noise Amplifier

RF BAY, Inc.
www.rfbayinc.com LNA-605
LNA Series 10 – 600MHz Low Noise Amplifier
Rev. A 1
Features
• Frequency Range: 10 – 600MHz
• Gain: 40dB
• P1dB : +17dBm
• IP3: +31dBm
• Noise Figure: 1dB
• DC Power: 5V/135mA
• SMA Connector
Performance measured @ 300MHz
Description
LNA-605 is a 1dB Noise Figure Low
Noise Amplifier operates with frequency
range from 10MHz to 600MHz. Useable
to 700MHz
