RACE MCH6 MOTHERBOARD

Mercury Computer Systems RACE MCH6 Motherboard – 6U VME64 with RACEway Interface

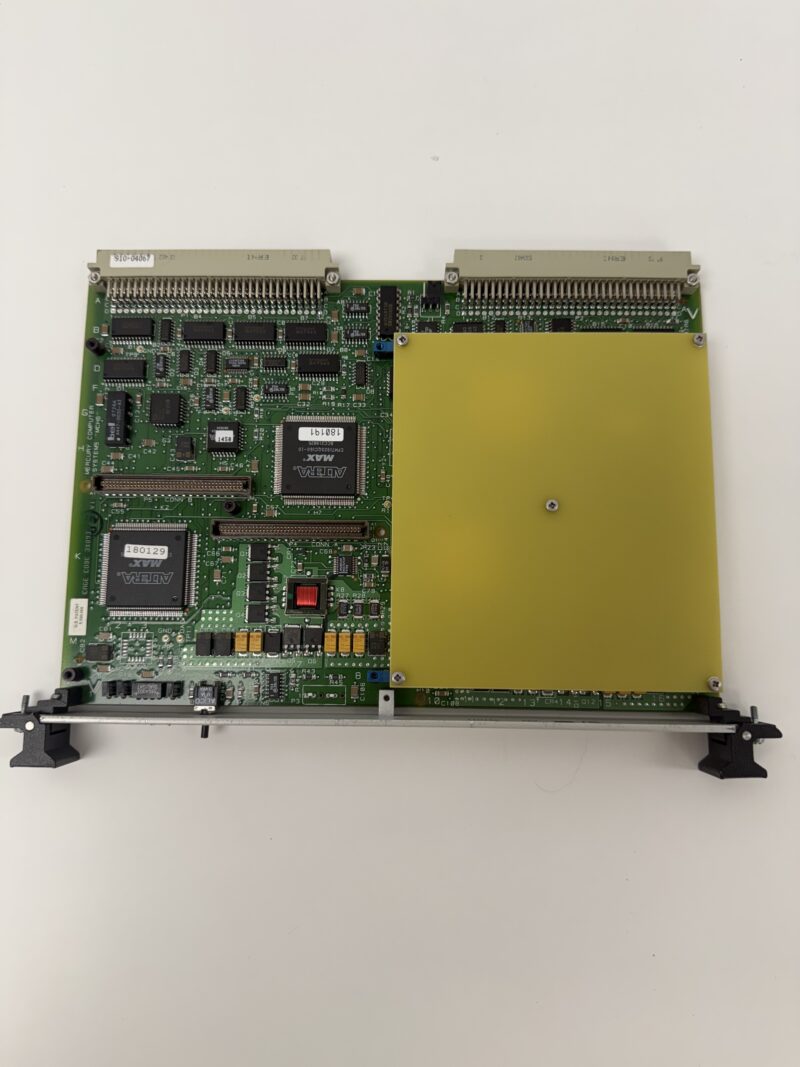

The Mercury Computer Systems RACE MCH6 is a high-performance 6U VME64 motherboard designed for heterogeneous multiprocessing in embedded systems. It supports a variety of daughtercards, enabling flexible configurations for applications requiring intensive computation and high-speed data transfer.

Key Features:

• Form Factor: 6U VME64

• Interfaces:

  • VME64 backplane interface

  • RACEway Interlink port for high-speed data communication

• Daughtercard Support:

  • Two daughtercard slots

  • Compatible with SHARC® DSP, PowerPC processors, and Mercury’s RIN-T-B and ROUT-T-B I/O daughtercards

• Processor Capacity:

  • Up to 4 PowerPC RISC processors

  • Up to 12 SHARC DSP processors

• Power Conversion: Onboard 5V to 3.3V conversion with minimum 85% efficiency

• Dimensions: 6.3 x 9.2 inches

• Weight: Approximately 0.8 pounds

• Operating Conditions:

  • Temperature: 0°C to 40°C

  • Humidity: 10% to 90% non-condensing

  • Recommended airflow: 8 CFM

Condition:

• SOLD AS IS

• UNTESTED

• NO ACCESSORIES INCLUDED

Applications:

• Embedded computing systems

• Signal processing applications

• Aerospace and defense systems

• Industrial automation
